Cab Wiring Harness, PowrQuad™ Transmission, CommandARM™(8/9)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ39249	1	Cab Wiring Harness	Command Arm
1	SJ35192	1	Cab Wiring Harness	ORDER SJ39249
2	57M8869	1	Elec. Connector Terminal	Cavity 1
2	57M8291	1	Elec. Connector Terminal	CommandARM™ Ground, XGND8
3	57M9229	2	Clip	-
4	57M7328	1	Elec. Connector Housing	Air Seat(Operator presence), XA05-2
4	57M9712	1	Elec. Connector Accessory	-
4	R104846	2	Elec. Connector Terminal	Cavity A, B
4	57M9215	2	Elec. Connector Seal	Cavity A, B
5	57M7259	2	Elec. Connector Seal	-
5	57M9215	2	Elec. Connector Seal	Cavity A, B
5	R104846	2	Elec. Connector Terminal	Cavity A, B
5	57M9712	1	Elec. Connector Accessory	-
5	57M7254	1	Elec. Connector Housing	Air Seat, XA05-1
6	SU23151	1	Bracket	-
7	57M8306	4	Elec. Connector Terminal	Cavity N, P, R, S
7	57M8323	10	Elec. Connector Terminal	Cavity B, D, E, F, G, H, J, K, L, M
7	57M8322	4	Elec. Connector Terminal	Cavity N, P, R, S
7	57M8309	7	Elec. Connector Terminal	Cavity B, D, E, F, G, H, K
7	57M8307	3	Elec. Connector Terminal	Cavity J, L, M
7	57M11955	1	Elec. Connector Accessory	-
7	57M8280	1	Elec. Connector Housing	Cab to Roof Interconnect, X014A
8	57M8279	1	Elec. Connector Housing	Cab to Roof Interconnect, X013A
8	57M11955	1	Elec. Connector Accessory	-
8	57M8302	1	Elec. Connector Terminal	Cavity J
8	57M8303	7	Elec. Connector Terminal	Cavity B, D, E, K, M, P, R
8	57M8304	6	Elec. Connector Terminal	Cavity A, C, F, G, L, N
8	57M8322	4	Elec. Connector Terminal	Cavity E, J, K, R
8	57M8323	6	Elec. Connector Terminal	Cavity A, B, D, F, M, P
8	57M8324	4	Elec. Connector Terminal	Cavity C, G, L, N
9	57M9809	5	Elec. Connector Terminal	Cavity 1, 6, 7, 10, 11
9	57M10631	5	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 9
9	57M9800	1	Elec. Connector Housing	Cab to Roof Interconnect, X012A
10	R267935	1	Channel	LGTH = 320 mm
11	R267934	1	Channel	LGTH = 185 mm
12	57M11348	1	Elec. Connector Housing	Cab to FCS Harness Interconnect, X031A
12	57M11364	1	Elec. Connector Accessory	-
12	57M12825	1	Elec. Connector Accessory	-
12	57M10106	7	Elec. Connector Terminal	Cavity A1, A12, B1, B4, B5, B6, B10
12	57M10108	6	Elec. Connector Terminal	Cavity A7, A8, A9, B7, B8, B9
12	57M12012	14	Elec. Connector Terminal	Cavity A2, A3, A6, A10, A11, A13, A14, A15, B2, B3, B11, B12, B13, B14
13	57M8857	1	Elec. Connector Housing	Front Console to Steering POD Interconnect, X051A
13	57M8863	13	Elec. Connector Terminal	Cavity D, E, F, G, H, J, K, L, N, P, R, S, T
13	57M8862	1	Elec. Connector Terminal	Cavity C
13	57M8910	1	Clip	-
13	57M8860	1	Elec.Connect Locking Device	-
13	57M8859	2	Elec.Connect Locking Device	-
14	57M12240	1	Elec. Connector Housing	Rear Switch, S14, LH
14	N282069	1	Elec. Connector Terminal	Cavity 11
14	57M8164	11	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12
14	57M9717	1	Elec.Connect Locking Device	-
14	57M7682	1	Elec.Connect Locking Device	-
15	R78054	1	Electrical Connector Assy	Cab to FCS Interconnect, X032A
15	R78061	3	Elec. Connector Terminal	-
15	57M9218	3	Elec. Connector Seal	-
16	R138078	2	Grommet	-
17	57M7256	1	Elec. Connector Housing	Dust Cap
18	57M8858	1	Elec. Connector Housing	Cab to Armrest Interconnect, X750A
18	57M8859	2	Elec.Connect Locking Device	-
18	57M8860	1	Elec.Connect Locking Device	-
18	57M8911	2	Elec. Connector Terminal	Cavity G, R
18	57M8912	6	Elec. Connector Terminal	Cavity A, K, L, P, T, U
18	57M8913	8	Elec. Connector Terminal	Cavity D, E, J, M, W, X, Y, Z

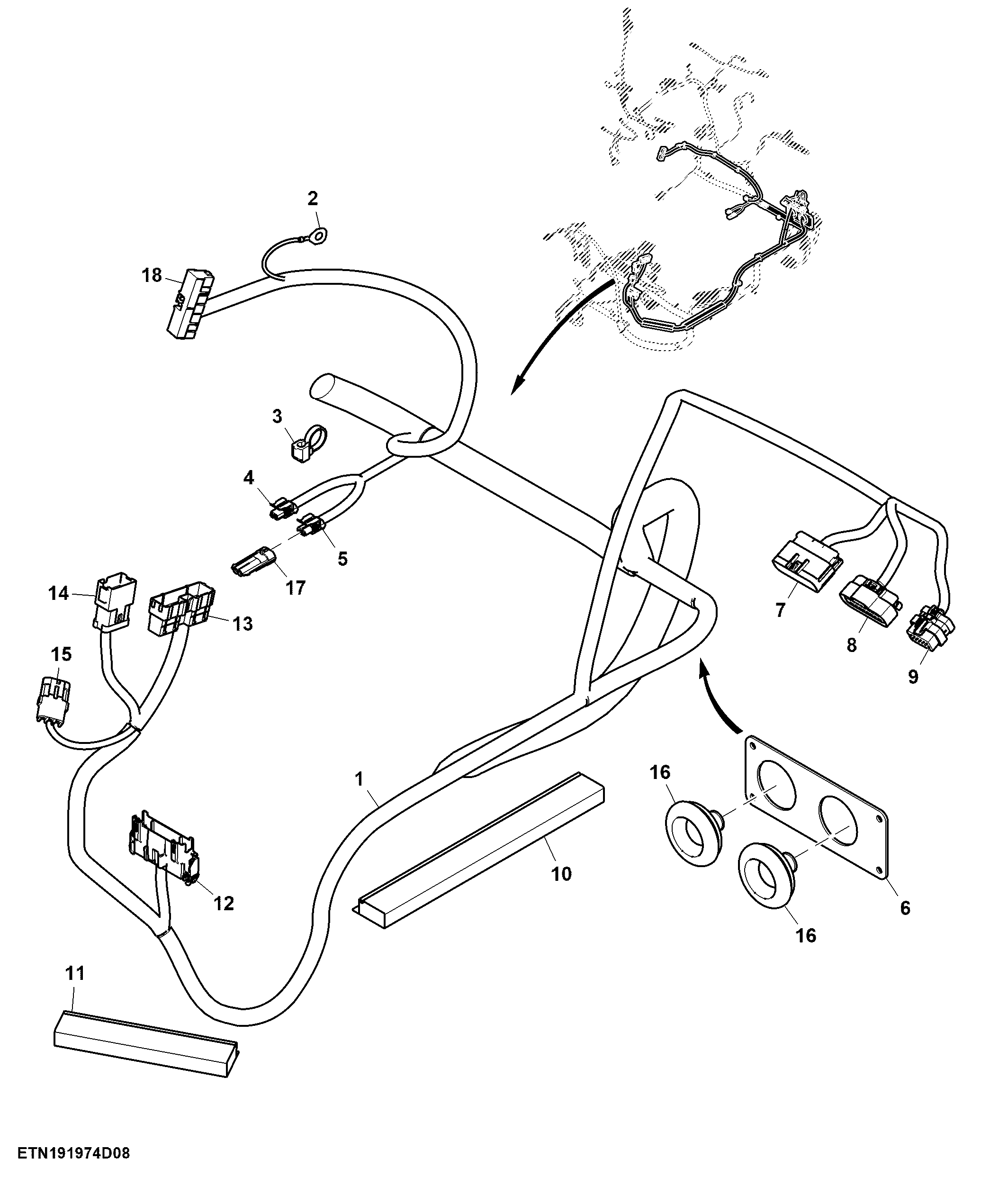

Cab Wiring Harness, PowrQuad™ Transmission, CommandARM™(8/9)
