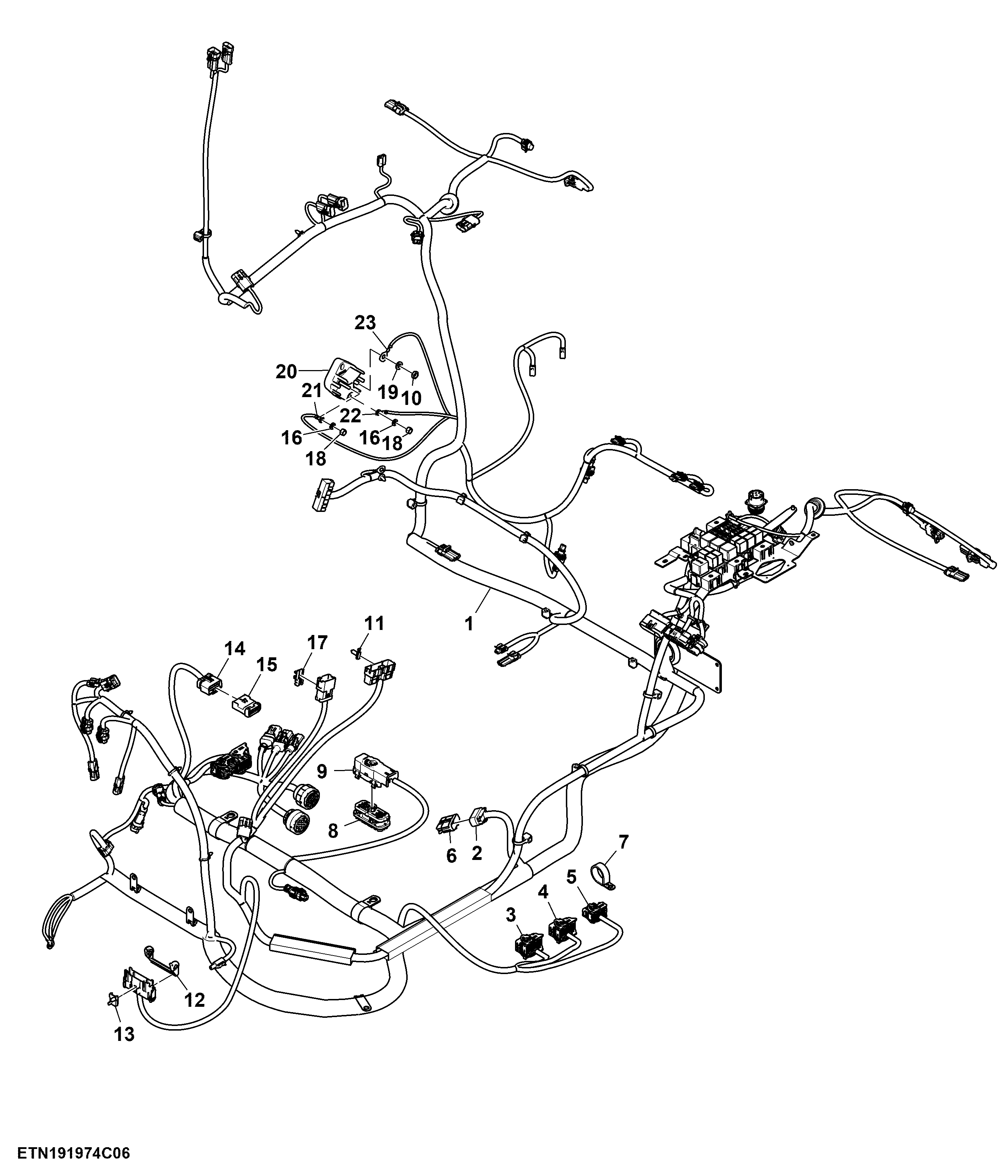

Cab Wiring Harness, PowrQuad™ Transmission, CommandARM™(6/9)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ39249	1	Cab Wiring Harness	Command Arm
1	SJ35192	1	Cab Wiring Harness	ORDER SJ39249
2	57M8306	1	Elec. Connector Terminal	Cavity S
2	57M9223	11	Elec. Connector Seal	Cavity B, C, D, E, F, G, K, M, N, P, R
2	57M8322	4	Elec. Connector Terminal	Cavity A, H, J, S
2	57M8302	1	Elec. Connector Terminal	Cavity S
2	57M8303	3	Elec. Connector Terminal	Cavity A, H, J
2	57M8300	7	Elec. Connector Terminal	Cavity B, D, E, F, G, K, M
2	57M8299	4	Elec. Connector Terminal	Cavity C, N, P, R
2	57M11996	2	Elec. Connector Accessory	-
2	57M9446	12	Elec. Connector Seal	-
2	57M8329	4	Electrical Connector Assy	-
2	57M8156	1	Elec. Connector Housing	Cab to SFA Interconnect, X981A
3	57M10401	1	Elec. Connector Accessory	-
3	57M11959	1	Elec. Connector Seal	Cavity 2
3	57M11973	4	Elec. Connector Seal	Cavity 1, 3, 4, 5
3	57M10617	1	Elec. Connector Housing	Cavity 42
3	57M10514	24	Elec. Connector Terminal	Cavity 8, 9, 11, 12, 13, 16, 20, 21, 23, 24, 25, 27, 28, 31, 32, 33, 34, 37, 38, 39, 46, 48, 51, 52
3	57M10332	1	Elec. Connector Terminal	Cavity 2
3	57M10331	6	Elec. Connector Terminal	Cavity 6, 17, 18, 29, 30, 53
3	57M10330	5	Elec. Connector Terminal	Cavity 10, 15, 35, 40, 47
3	57M10217	4	Elec. Connector Terminal	Cavity 1, 3, 4, 5
3	R44302	1	Tie Band	-
3	57M10329	1	Elec. Connector Housing	Cab Controller J3, XA02-J3
4	57M11973	2	Elec. Connector Seal	Cavity 4, 5
4	57M11959	2	Elec. Connector Seal	Cavity 2, 3
4	57M10514	21	Elec. Connector Terminal	Cavity 7, 11, 12, 13, 14, 20, 24, 26, 28, 32, 33, 34, 35, 36, 39, 43, 44, 47, 48, 49, 52
4	57M10332	2	Elec. Connector Terminal	Cavity 2, 3
4	57M10217	2	Elec. Connector Terminal	Cavity 4, 5
4	57M10331	8	Elec. Connector Terminal	Cavity 6, 17, 18, 29, 30, 41, 42, 53
4	57M10214	1	Elec. Connector Housing	Cab Controller J2, XA02-J2
4	57M10401	1	Elec. Connector Accessory	-
4	R44302	1	Tie Band	-
5	57M10615	1	Elec. Connector Housing	Cab Controller J1, XA02-J1
5	57M10613	1	Elec. Connector Housing	-
5	R44302	1	Tie Band	-
5	57M10330	5	Elec. Connector Terminal	Cavity A3, A4, B2, G1, J3
5	57M10331	6	Elec. Connector Terminal	Cavity L2, L3, L4, M1, M2, M3
5	57M10514	29	Elec. Connector Terminal	Cavity A1, A2, B1, B4, C1, C2, C3, D1, D2, D3, D4, E1, E2, E3, E4, F3, F4, G2, G3, G4, H1, H2, H3, H4, J1, J2, J4, K1, K2
5	57M10617	6	Elec. Connector Housing	Cavity M4
6	57M8281	1	Elec. Connector Housing	Dust Cap
7	57M12136	3	Clamp	-
8	RE538505	1	Elec. Connector Accessory	Electronic Control Unit, A5505
8	57M10321	13	Elec. Connector Terminal	Cavity 7, 12, 13, 14, 16, 17, 23, 24, 27, 32, 43, 44, 50
8	57M9808	5	Elec. Connector Terminal	Cavity 1, 2, 11, 30, 52
9	R528122	1	Elec. Connector Accessory	Back Shell
10	14M7194	1	Nut	M6
11	57M8910	1	Clip	Front Console to Steering POD Interconnect
12	57M12825	1	Elec. Connector Accessory	Lever Lock
13	57M11364	1	Elec. Connector Accessory	Cab to FCS Harness Interconnect
14	57M10297	1	Elec. Connector Housing	Cab / Front Hitch Interconnect, X023A
14	57M8572	14	Elec. Connector Cavity Plug	-
14	57M8543	2	Elec. Connector Terminal	Cavity 6, 14
14	57M8545	6	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 11, 12
14	57M8565	6	Elec. Connector Terminal	Cavity 5, 7, 8, 9, 10, 13
15	57M10298	1	Elec. Connector Housing	Dust Cap
16	24M7087	2	Washer	5.500 X 10 X 1 mm
17	57M9717	1	Elec.Connect Locking Device	Rear Switch, LH
18	14M7297	2	Nut	M5
19	24M7088	1	Washer	6.600 X 12 X 1.600 mm
20	RE186986	1	Junction Block	-
21	57M8875	1	Elec. Connector Terminal	Junction Block Battery Power
22	57M8875	1	Elec. Connector Terminal	Junction Block Ground
23	57M8871	1	Elec. Connector Terminal	Junction Block Accessory Power

Cab Wiring Harness, PowrQuad™ Transmission, CommandARM™(6/9)
