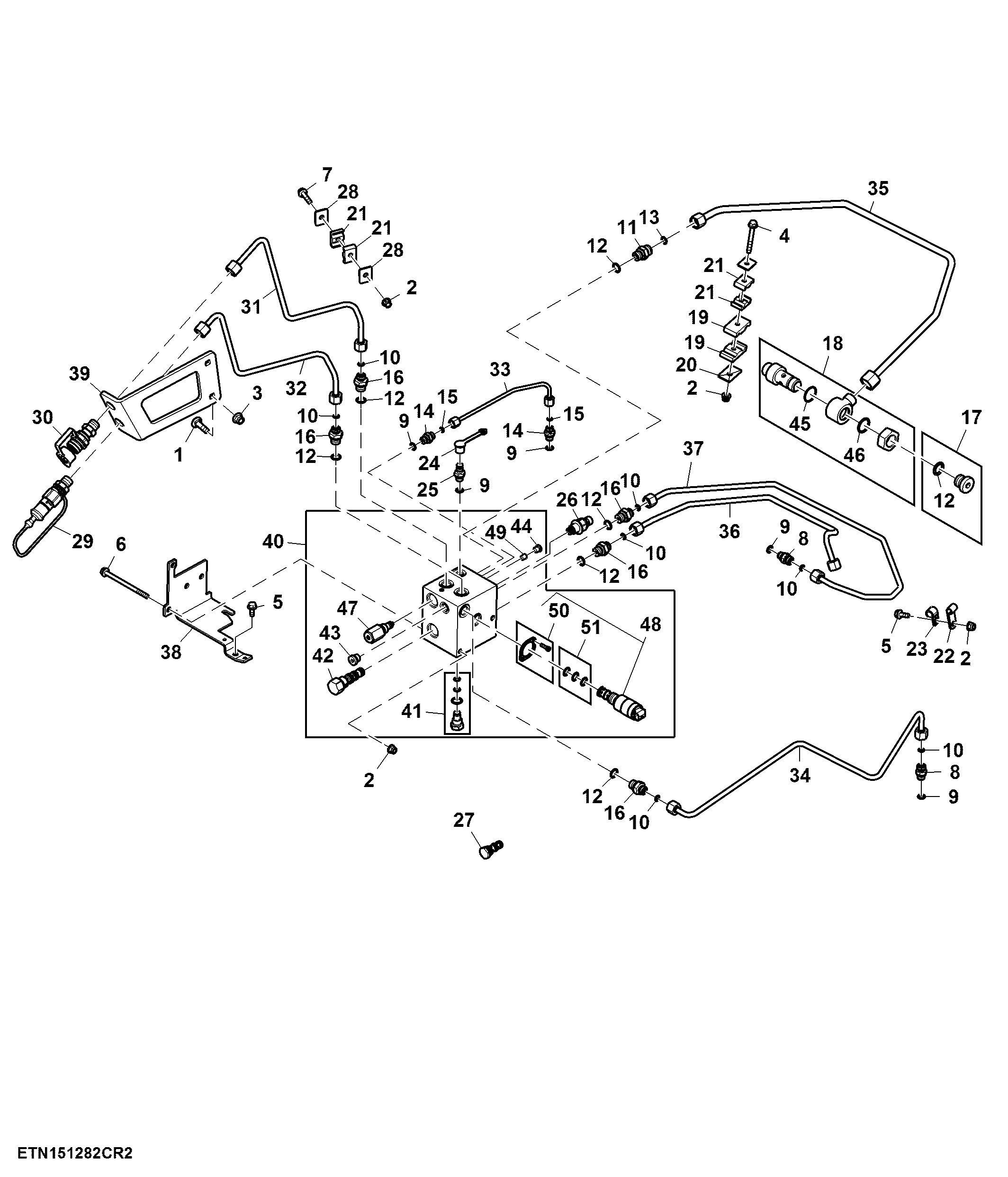

Valve, PFC, Dual Line Hydraulic Trailer Brake

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	03M7193	2	Bolt	M10 X 35
2	14M7396	5	Lock Nut	M8
3	14M7400	2	Lock Nut	M10
4	19M7803	1	Screw	M8 X 70
5	19M7866	2	Screw	M8 X 20
6	19M8006	2	Screw	M8 X 120
7	19M8317	1	Screw	M8 X 40
8	38H5002	2	Adapter Fitting	-
9	51M7041	5	O-Ring	11.300 X 2.200 mm
10	T77613	7	O-Ring	-
11	38H5003	1	Adapter Fitting	-
12	51M7043	7	O-Ring	15.300 X 2.200 mm
13	T77857	1	O-Ring	-
14	38H5011	2	Adapter Fitting	-
15	T77814	2	O-Ring	-
16	38H5012	5	Adapter Fitting	-
17	RE539115	1	Fitting	-
18	AL181603	1	Elbow Fitting	-
19	H108291	2	Clamp	-
20	H121168	1	Plate	-
21	H128515	4	Clamp	-
22	M43432	1	Clip	-
23	H75541	1	Clamp	-
24	R77175	1	Cover	-
25	RE190805	1	Diagnostic Coupling	-
26	RE581544	1	Pressure Sensor	SUB FOR RE272647
27	RE317769	1	Check Valve	-
28	H121163	3	Strap	-
29	RE579717	1	Hyd. Quick-Connect Coupler	-
30	RE580317	1	Hyd. Quick-Connect Coupler	-
31	SJ29890	1	Line	Coupler
32	SJ29891	1	Line	-
33	SJ30058	1	Line	Brake Pilot
34	SJ30593	1	Line	Brake Valve Supply
35	SJ30594	1	Line	Brake Return
36	SJ30595	1	Line	Hydraulic Break Supply
37	SJ30596	1	Line	Load Sense
38	SU51527	1	Bracket	Brake Valve
39	SU49678	1	Bracket	Couplers
40	SJ30462	1	Valve	-
41	AN206491	1	Check Valve	-
42	SJ30464	1	Hydraulic Pressure Valve	-
43	RE315707	1	Fitting Plug	-
44	N304196	1	Plug	-
45	T78612	1	O-Ring	-
46	51M7051	1	O-Ring	26.600 X 2.900 mm
47	SJ31741	1	Pressure Relief Valve	-
48	RE579904	1	Solenoid Hydraulic Valve	-
49	HXE15813	1	Orifice	-
50	RE583942	3	Hardware Kit	-
51	RE579910	2	Seal Kit	-

Valve, PFC, Dual Line Hydraulic Trailer Brake
