Cab Wiring Harness, Powershift™ Transmission, CommandARM™ (4/9)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ31975	1	Cab Wiring Harness	SUB FOR SJ29260
2	RE538505	1	Elec. Connector Accessory	Engine ECU J3 Stage IIIB A5505_IT4_J3
2	R528122	1	Elec. Connector Accessory	-
2	57M10321	9	Elec. Connector Terminal	Cavity 7, 12, 13, 23, 24, 27, 29, 43, 44
2	57M9808	9	Elec. Connector Terminal	Cavity 1, 2, 11, 14, 15, 18, 30, 33, 49
3	57M9800	1	Elec. Connector Housing	Cab to IT4 Engine Interconnect X5002A
3	57M10321	3	Elec. Connector Terminal	Cavity 1, 2, 11
3	57M9808	9	Elec. Connector Terminal	Cavity 3, 4, 5, 6, 7, 8, 9, 10, 12
4	57M9712	1	Elec. Connector Accessory	-
4	57M9214	2	Elec. Connector Seal	Cavity A, B
4	57M7494	2	Elec. Connector Terminal	Cavity A, B
4	57M7328	1	Elec. Connector Housing	Differential Lock Switch S20
5	57M8865	1	Elec. Connector Terminal	Battery Disconnect Switch S28
6	57M9776	1	Elec. Connector Housing	Control Area Network Terminator A911
6	57M11134	1	Elec. Connector Housing	-
6	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
7	57M9800	1	Elec. Connector Housing	Cab to Front PTO Interconnect X023A
7	57M9809	7	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 11, 12
7	57M10663	1	Elec. Connector Terminal	Cavity 6
7	57M10631	4	Elec. Connector Terminal	Cavity 7, 8, 9, 10
7	57M11338	1	Elec. Connector Accessory	-
8	57M10614	1	Elec. Connector Housing	Rear 2 Controller J1 XA06-J1
8	57M10613	1	Elec. Connector Housing	-
8	R44302	1	Tie Band	-
8	57M10330	10	Elec. Connector Terminal	Cavity A4, B4, D4, E2, E4, F4, G4, H1, H2, J4
8	57M10331	8	Elec. Connector Terminal	Cavity K1, L1, L2, L4, M1, M2, M3, M4
8	57M10514	14	Elec. Connector Terminal	Cavity A1, B1, B2, B3, C1, C2, D1, D2, D3, F1, G1, G3, J1, K2
9	57M11959	4	Elec. Connector Seal	Cavity 2, 3, 4, 5
9	57M11973	1	Elec. Connector Seal	Cavity 1
9	57M10514	8	Elec. Connector Terminal	Cavity 11, 12, 13, 25, 26, 32, 34, 51
9	57M10332	4	Elec. Connector Terminal	Cavity 2, 3, 4, 5
9	57M10331	6	Elec. Connector Terminal	Cavity 6, 18, 29, 41, 42, 53
9	57M10217	1	Elec. Connector Terminal	Cavity 1
9	R44302	1	Tie Band	-
9	57M10401	1	Elec. Connector Accessory	-
9	57M10367	1	Elec. Connector Housing	Rear 2 Controller J2 XA06-J2
9	57M10330	6	Elec. Connector Terminal	Cavity 10, 44, 46, 49, 50, 52
10	57M7751	1	Elec. Connector Housing	Cab to Transmission Interconnect X003A
10	57M7546	2	Elec. Connector Terminal	Cavity 4, 7
10	57M8165	18	Elec. Connector Terminal	Cavity 1, 2, 3, 6, 8, 9, 10, 14, 15, 16, 17, 18, 21, 22, 23, 24, 25, 28
11	57M8617	1	Elec. Connector Housing	Cab to Transmission Interconnect X004A
11	57M9225	1	Elec. Connector Terminal	Cavity 23
11	57M8569	2	Elec. Connector Terminal	Cavity 2, 4
11	57M8165	10	Elec. Connector Terminal	Cavity 5, 6, 7, 8, 9, 10, 11, 22, 25, 26
11	57M7546	6	Elec. Connector Terminal	Cavity 12, 13, 14, 15, 16, 17
12	57M7494	2	Elec. Connector Terminal	Cavity A, B
12	57M9214	2	Elec. Connector Seal	Cavity A, B
12	57M9712	1	Elec. Connector Accessory	-
12	57M7985	1	Electrical Connector Assy	-
12	57M7328	1	Elec. Connector Housing	Loader Suspension Connection X08
12	57M9712	1	Elec. Connector Accessory	-
13	57M7260	1	Elec. Connector Housing	Loader Diverter Connection X07
13	57M7259	6	Elec. Connector Seal	-
13	57M7263	1	Elec. Connector Housing	-
13	57M7291	1	Electrical Connector Assy	-
13	R104846	4	Elec. Connector Terminal	Cavity A, B, D, E
13	57M9214	4	Elec. Connector Seal	Cavity A, B, D, E
14	57M9817	1	Elec. Connector Housing	Cab to Electro Hydraulic Mid SCV Interconnect X320A
14	57M9809	2	Elec. Connector Terminal	Cavity 2, 3
14	57M10631	2	Elec. Connector Terminal	Cavity 1, 4
14	57M11335	1	Elec. Connector Accessory	-
15	R528122	1	Elec. Connector Accessory	-
16	57M11134	1	Elec. Connector Housing	Control Area Network Terminator
17	57M9804	1	Elec. Connector Housing	Cab to Front PTO Interconnect
18	57M7985	1	Electrical Connector Assy	Loader Suspension Connection
19	57M7263	1	Elec. Connector Housing	Loader Diverter Connection
20	57M11335	1	Elec. Connector Accessory	Cab to Electro Hydraulic Mid SCV Interconnect

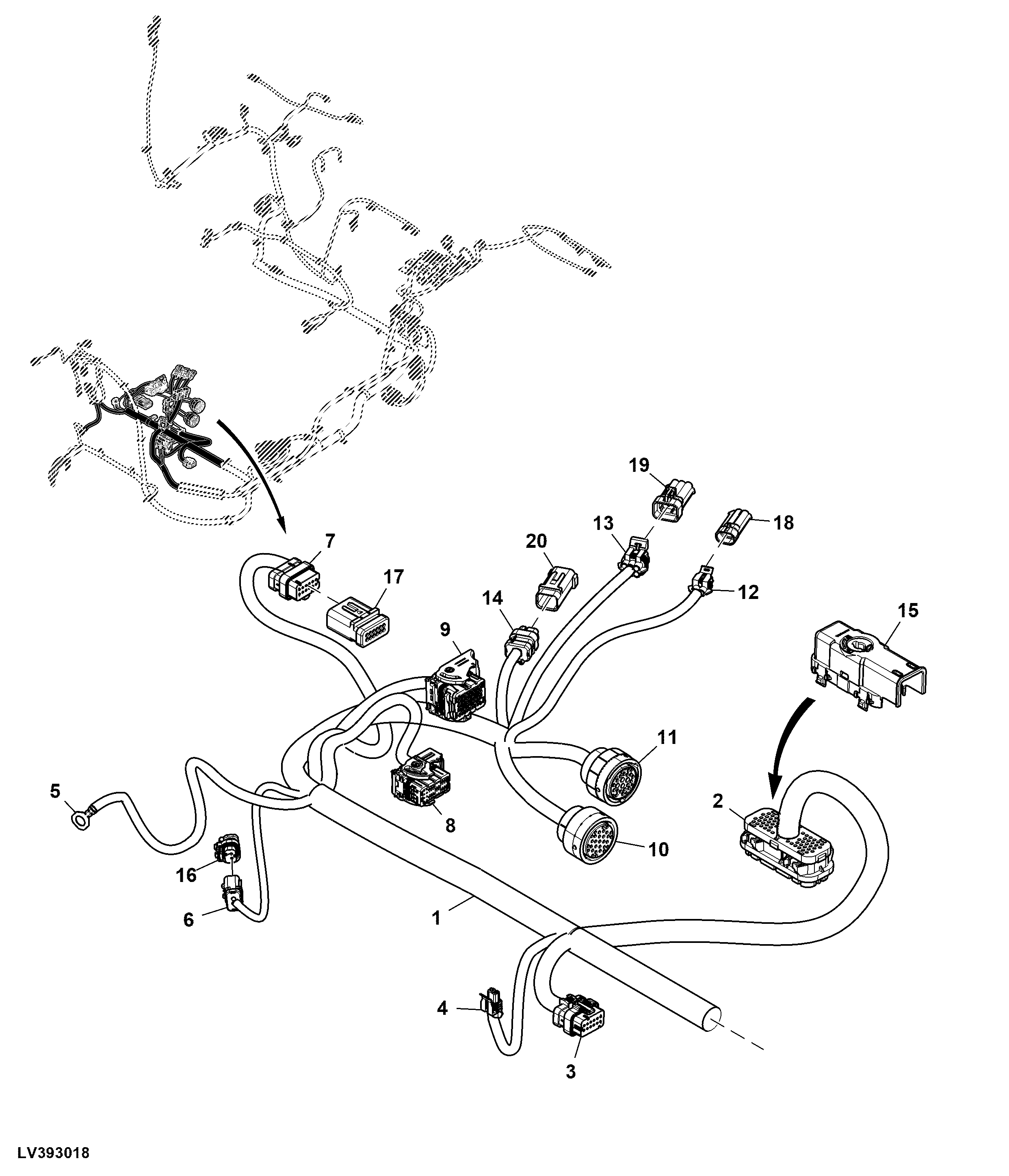

Cab Wiring Harness, Powershift™ Transmission, CommandARM™ (4/9)
