Открытый узел

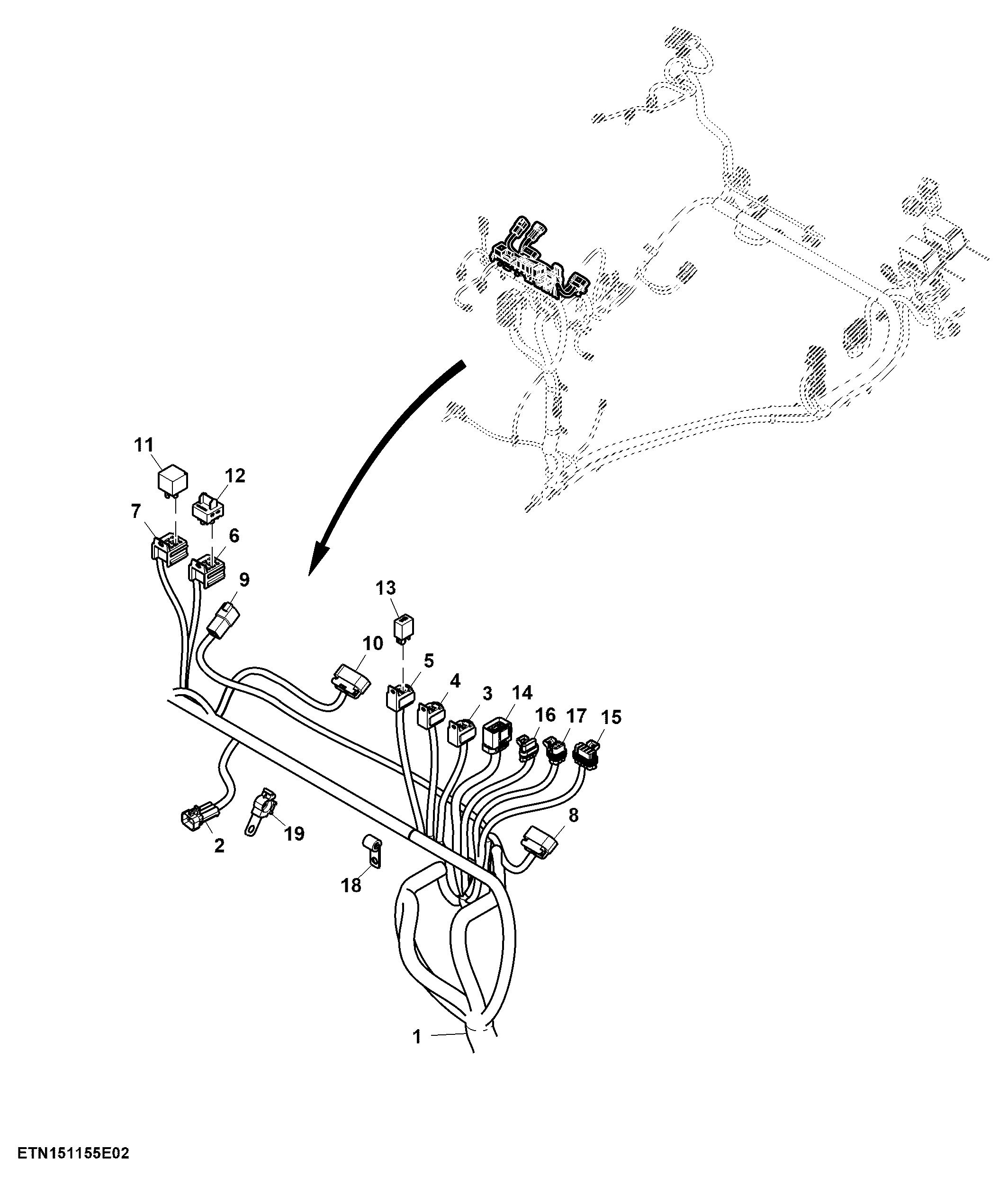

Wiring Harness, PowrReverser™, OOS (2/6)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ35240	1	Wiring Harness	OOS ORDER SJ40793
1	SJ40793	1	Wiring Harness	OOS
1	SJ32293	1	Wiring Harness	OOS ORDER SJ35240
2	57M7263	1	Elec. Connector Housing	MFWD Switch S16_R4
2	57M7259	6	Elec. Connector Seal	-
2	57M7291	2	Electrical Connector Assy	-
2	57M7252	3	Elec. Connector Terminal	Cavity A, B, C
2	57M9214	3	Elec. Connector Seal	Cavity A, B, C
3	Z61311	1	Elec. Connector Housing	Acessory Relay K07
3	Z61303	2	Elec. Connector Terminal	Cavity 1, 2
3	57M9492	2	Elec. Connector Terminal	Cavity 3, 5
4	57M9492	2	Elec. Connector Terminal	Cavity 3, 5
4	Z61303	2	Elec. Connector Terminal	Cavity 1, 2
4	Z61311	1	Elec. Connector Housing	Headlight Relay K27
5	Z61311	1	Elec. Connector Housing	Neutral Relay K11
5	Z61303	2	Elec. Connector Terminal	Cavity 1, 2
5	57M10980	2	Elec. Connector Terminal	Cavity 3, 5
6	57M10426	1	Elec. Connector Accessory	Diode Assembly V01
6	57M9714	4	Elec. Connector Terminal	Cavity 1, 3, 7, 9
6	57M10980	5	Elec. Connector Terminal	Cavity 30, 85, 86, 87, 87A
7	57M10426	1	Elec. Connector Accessory	Front Work Lamp Relay K09
7	57M9492	3	Elec. Connector Terminal	Cavity 30, 86, 87
7	57M10980	1	Elec. Connector Terminal	Cavity 85
8	57M8321	5	Elec. Connector Terminal	Cavity E, F, G, H, J
8	57M9223	4	Elec. Connector Seal	Cavity C, L, M, N
8	57M8301	2	Elec. Connector Terminal	Cavity H, J
8	57M10201	1	Elec. Connector Accessory	-
8	57M9835	1	Elec. Connector Housing	Instrument Cluster J2 A01_J2
8	57M8300	7	Elec. Connector Terminal	Cavity C, E, F, G, L, M, N
9	57M9956	1	Elec. Connector Housing	Exhaust Filter Cleaning Switch S35
9	57M7678	1	Elec. Connector Terminal	-
9	57M8164	3	Elec. Connector Terminal	Cavity 4, 5, 6
10	57M8484	1	Elec. Connector Housing	Instrument Cluster J1 A01_J1
10	57M9919	1	Elec. Connector Accessory	-
10	57M8300	14	Elec. Connector Terminal	Cavity A-E, G, H, J-N, R, S
10	57M8321	6	Elec. Connector Terminal	Cavity A, B, J, L, R, S
10	57M9223	8	Elec. Connector Seal	Cavity C-E, G, H, K, M, N
11	RE68327	1	Relay	40 A
12	RE262484	1	Diode	1.5 A
13	AL76702	3	Relay	10 A
14	57M8565	10	Elec. Connector Terminal	Cavity 1-10
14	57M10299	1	Elec. Connector Housing	Key / Light Switch Interconnect X050A
15	57M7262	1	Elec. Connector Housing	Multifunction Switch Interconnect X051A
15	57M7281	1	Elec.Connect Locking Device	-
15	R104846	9	Elec. Connector Terminal	Cavity A-H, J
15	57M7258	3	Elec. Connector Seal	Cavity A, B, F
15	57M9215	6	Elec. Connector Seal	Cavity C-E, G, H, J
16	57M7840	1	Elec. Connector Housing	FNR Switch S14
16	57M7469	1	Electrical Connector Assy	-
16	R104846	4	Elec. Connector Terminal	Cavity A-D
16	57M9214	4	Elec. Connector Seal	Cavity A-D
17	57M7260	1	Elec. Connector Housing	Clutch Pedal Disengage S15
17	57M7291	1	Electrical Connector Assy	-
17	R104846	6	Elec. Connector Terminal	Cavity A-F
17	57M9214	6	Elec. Connector Seal	Cavity A-F
18	57M12138	2	Clamp	-
19	57M10105	1	Elec. Connector Accessory	-

Wiring Harness, PowrReverser™, OOS (2/6)
