Открытый узел

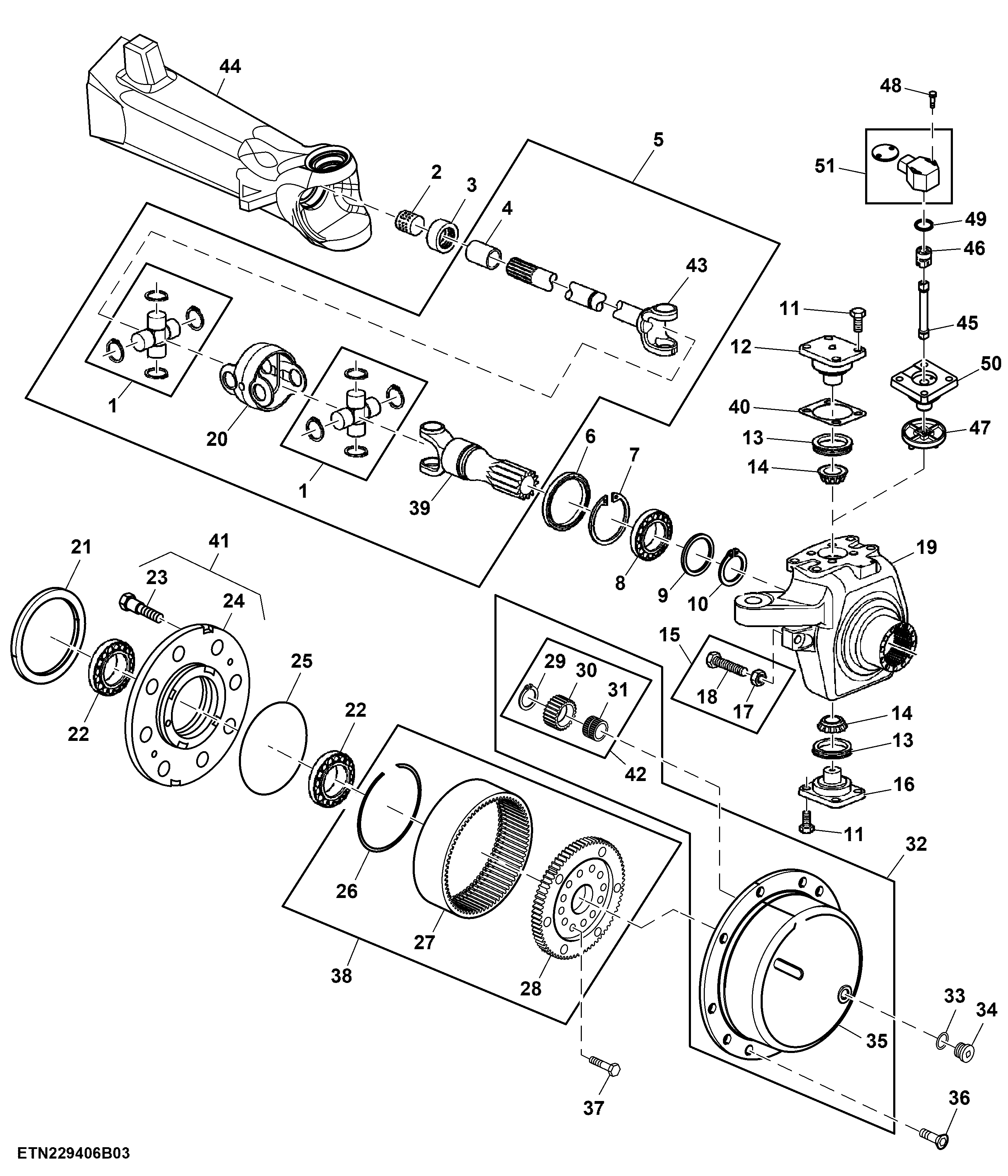

Hub Reduction, Front Axle, Standard Duty, MFWD

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE271430	4	Universal Joint Cross	-
2	R271391	2	Bushing	Axle Housing
3	AL227049	2	Seal	-
4	L114652	2	Bushing	-
5	RE271427	2	Universal Joint With Shaft	-
6	AL161384	2	Seal	-
7	40M7115	2	Snap Ring	-
8	RE272342	2	Ball Bearing	Knuckle Housing
9	L157610	2	Disk	-
10	40M7166	2	Snap Ring	-
11	L157635	16	Bolt	-
12	R271394	1	Kingpin	Upper
13	RE271398	4	Seal	-
14	RE272374	4	Bearing	-
15	RE271406	2	Bolt Kit	-
16	R271408	2	Kingpin	Lower
17	14M7260	2	Nut	M16
18	L157587	2	Screw	-
19	R271409	1	Housing	RH
19	R271410	1	Housing	LH
20	R271431	2	Housing	Universal Joint Central
21	AL159594	2	Seal	-
22	RE272375	4	Bearing	-
23	R271411	16	Stud	-
24	R271412	2	Hub	-
25	L157607	2	Ring	-
26	L157620	2	Snap Ring	-
27	R271413	2	Ring Gear	Final Drive
28	R271414	2	Hub	-
29	40M7013	6	Snap Ring	-
30	R271416	6	Gear	Final Drive
31	RE271420	6	Cylindrical Roller Bearing	-
32	RE271421	2	Gear Kit	-
33	Z104508	2	Sealing Washer	-
34	L169940	2	Drain Plug	-
35	R271422	2	Planet Pinion Carrier	Final Drive
36	L157625	4	Screw	-
37	L156892	24	Bolt	-
38	RE271423	2	Gear Kit	Final Drive Ring Gear
39	R271433	2	Universal Joint Yoke	-
40	RE271424	1	Shim Kit	Kingpin
41	RE271425	2	Hub Kit	-
42	RE271426	6	Gear Kit	Final Drive Planet Pinion
43	R271429	2	Universal Joint Yoke	Differential
44	SU58613	1	Housing	-
45	L206295	1	Shaft	Wheel Angle Sensor Connection
46	L165796	1	Adapter	-
47	L165798	1	Disk	Wheel Angle Sensor Connection
48	L208687	2	Screw	-
49	51M7097	1	O-Ring	18 X 2.500 mm
50	SU58614	1	Kingpin	Wheel Angle Sensor
51	SU58615	1	Cover	Wheel Angle Sensor

Hub Reduction, Front Axle, Standard Duty, MFWD
