Открытый узел

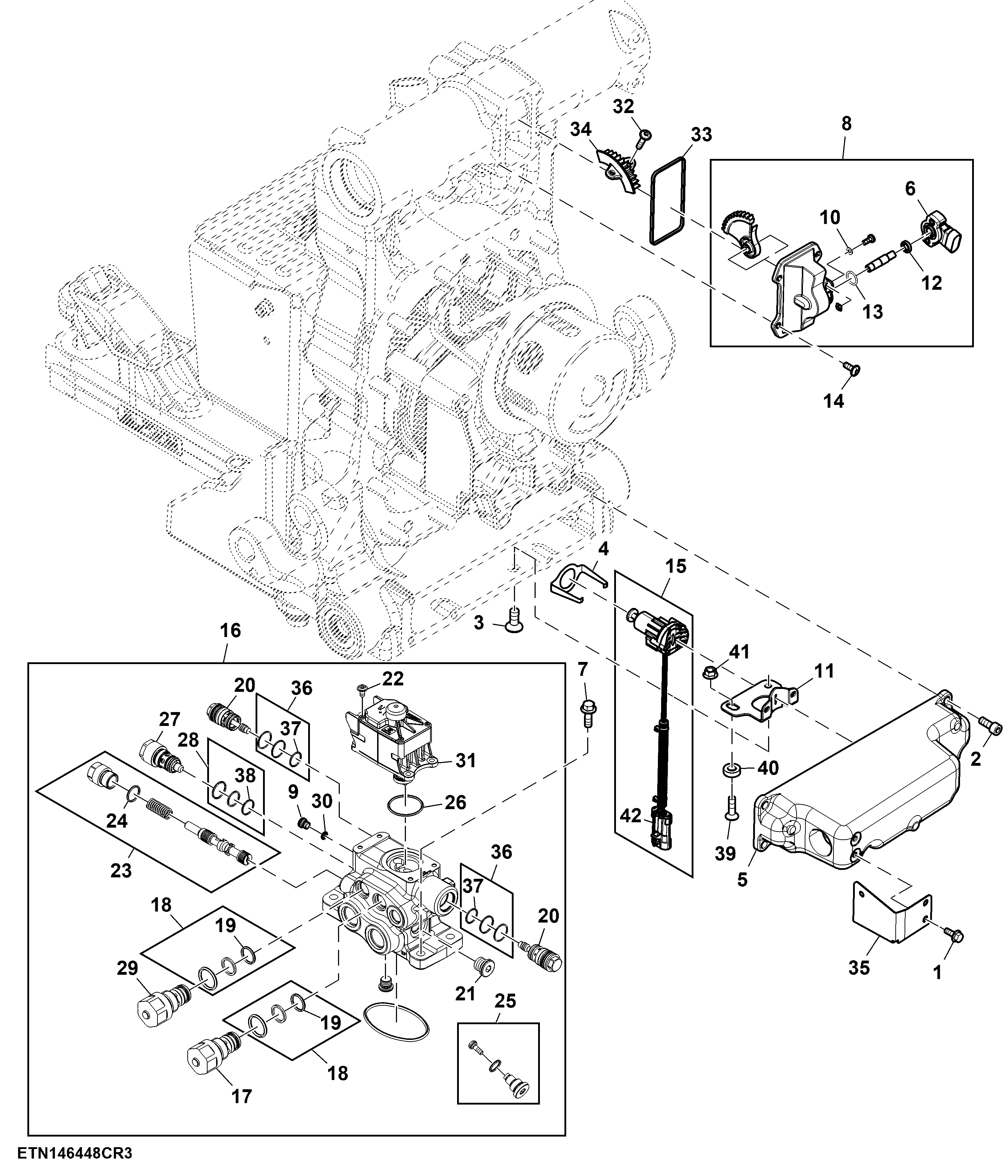

Hitch Control Valve, Bucher Electro-Hydraulic

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7775	2	Screw	M6 X 16
2	19M8446	6	Screw	M8 X 20
3	19M8551	1	Screw	M10 X 25
4	R107491	1	Clip	-
5	R255273	1	Cover	Draft Sense
6	AL110352	1	Sensor	Rotary Position
7	19M7786	4	Screw	M10 X 30
8	AL176767	1	Sensor	Rotary Position
9	64M1015	1	Drain Plug	-
10	24M7117	2	Washer	4.300 X 9 X 0.800 mm
11	SJ31895	1	Bracket	Draft Sensor
12	L110245	1	Seal	-
13	R98502	1	Ring	-
14	19M8648	4	Screw	M6 X 16
15	RE282919	1	Sensor	Linear Position
16	SJ33252	1	Elec-Hyd Proportional Valve	INCLUDES SJ30419, SUB FOR SJ30139
16	SJ30419	1	Seal Kit	-
17	SJ25194	1	Pressure Relief Valve	230 bar
18	SJ25191	2	Seal Kit	-
19	R274578	2	O-Ring	-
20	AL212973	2	Valve Spool	-
21	64M1019	1	Drain Plug	-
22	19M8851	4	Screw	M6 X 12
23	SJ25195	1	Valve Kit	-
24	51M7045	1	O-Ring	19.300 X 2.200 mm
25	SJ25196	1	Check Valve	Load Check
26	P50635	1	O-Ring	-
27	SJ25192	1	Pressure Relief Valve	195 bar
28	AL175582	1	Seal Kit	-
29	SJ25193	1	Pressure Relief Valve	200 bar
30	51M7039	1	O-Ring	8.100 X 1.600 mm
31	AL224475	1	Electric Motor	SUB FOR AL222529
32	19M8875	2	Screw	M6 X 25
33	L102324	1	Seal	-
34	L172758	1	Sector	Hitch Position
35	SU50004	1	Shield	-
36	AL212975	2	Seal Kit	-
37	R117676	2	O-Ring	-
38	R27564	1	O-Ring	-
39	19M10804	1	Screw	M10 X 35
40	H205329	1	Washer	-
41	14M7296	1	Flange Nut	M10
42	57M7257	1	Elec. Connector Housing	-
42	57M7290	1	Elec. Connector Accessory	-
42	57M7258	3	Elec. Connector Seal	Cavity A, B, C
42	57M7495	3	Elec. Connector Terminal	Cavity A, B, C

Hitch Control Valve, Bucher Electro-Hydraulic

Нет текстового описания
