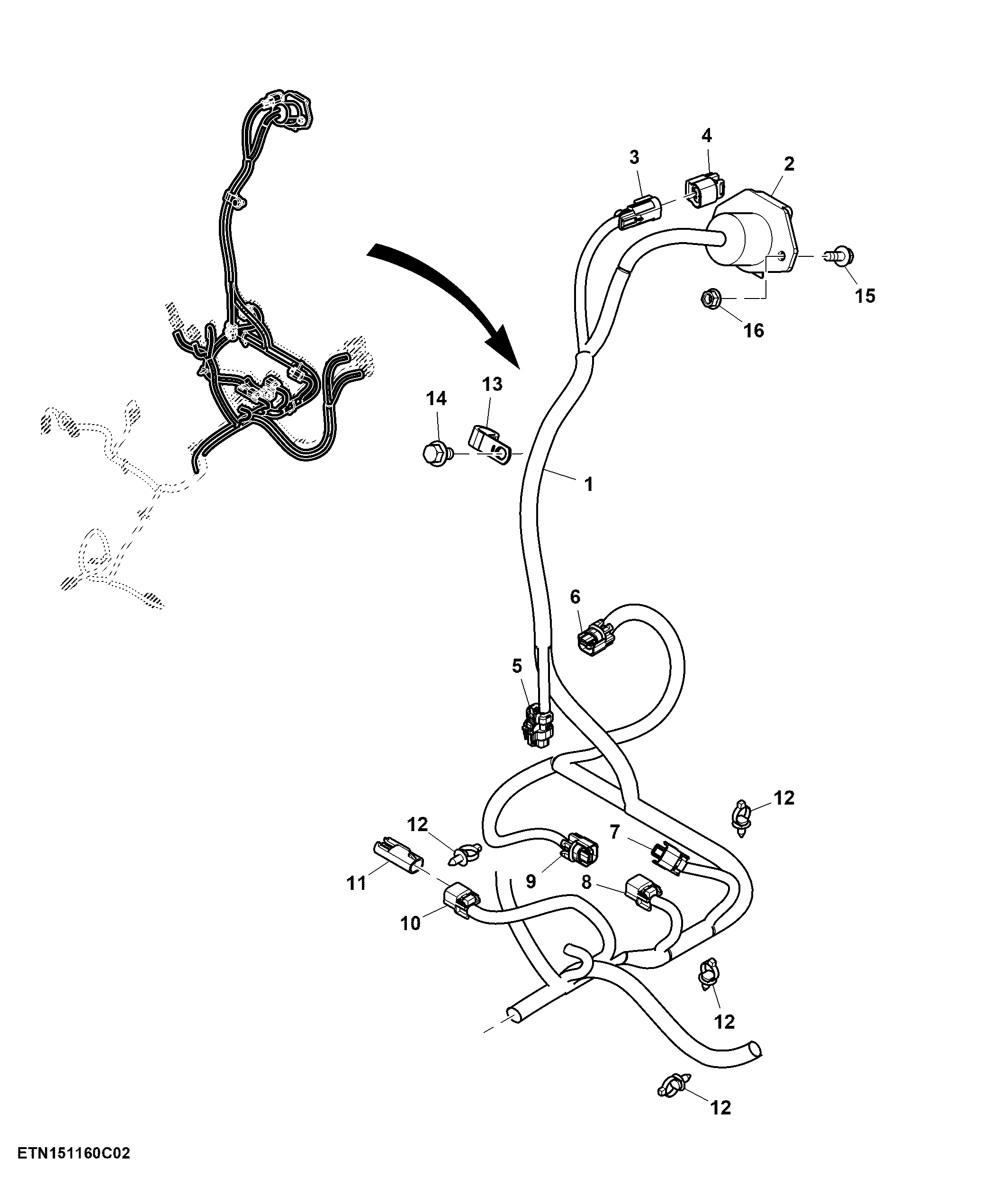

Chassis Wiring Harness, PowrReverser™ (2/2)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ32299	1	Chassis Wiring Harness	-
2	AR75695	1	Socket Outlet	Trailer Connector X01_R4
2	R61775	1	Boot	-
3	57M8215	1	Electrical Connector Assy	Backup Alarm H06
3	57M9446	1	Elec. Connector Seal	-
3	57M11557	1	Elec. Connector Accessory	-
3	57M8301	2	Elec. Connector Terminal	Cavity A, B
3	57M9223	2	Elec. Connector Seal	Cavity A, B
4	57M8213	1	Elec. Connector Housing	-
5	57M9780	1	Elec. Connector Housing	Enable Pressure Sensor B12
5	57M9808	3	Elec. Connector Terminal	Cavity 1 , 2, 3
6	57M8924	1	Elec. Connector Housing	PTO Solenoid Y01
6	57M8633	1	Elec. Connector Accessory	-
6	57M8602	2	Elec. Connector Terminal	Cavity A, B
6	57M8603	2	Elec. Connector Seal	Cavity A, B
7	57M8566	2	Elec. Connector Seal	Cavity A, B
7	57M8560	2	Elec. Connector Terminal	Cavity A, B
7	57M8924	1	Elec. Connector Housing	Clutch Enable Valve Y07
7	57M8633	1	Elec. Connector Accessory	-
8	57M8924	1	Elec. Connector Housing	Transmission Reverse Y06
8	57M8633	1	Elec. Connector Accessory	-
8	57M8560	2	Elec. Connector Terminal	Cavity A, B
8	57M8566	2	Elec. Connector Seal	Cavity A, B
9	57M8924	1	Elec. Connector Housing	PTO Speed Sensor B06
9	57M9808	2	Elec. Connector Terminal	Cavity A, B
10	57M8633	2	Elec. Connector Accessory	-
10	57M8566	2	Elec. Connector Seal	Cavity A, B
10	57M8560	2	Elec. Connector Terminal	Cavity A, B
10	57M9112	2	Elec. Connector Cavity Plug	-
10	57M8924	1	Elec. Connector Housing	Transmission Forward Hi Y10
11	57M9222	1	Elec. Connector Housing	-
12	RE258807	4	Tie Band	-
13	57M12137	1	Clamp	-
14	19M7783	1	Screw	M10 X 16
15	19M7866	2	Screw	M8 X 20
16	14M7298	2	Flange Nut	M8

Chassis Wiring Harness, PowrReverser™ (2/2)
