Chassis Wiring Harness, PowrQuad™(1/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ34689	1	Chassis Wiring Harness	-
2	57M8924	1	Elec. Connector Housing	Enable Supply Y201
2	57M8603	2	Elec. Connector Seal	Cavity A, B
2	57M8633	1	Elec. Connector Accessory	-
2	57M8602	2	Elec. Connector Terminal	Cavity A, B
3	57M9210	1	Elec. Connector Housing	Low Propotional Y208
3	57M8633	1	Elec. Connector Accessory	-
3	57M8602	2	Elec. Connector Terminal	Cavity A, B
3	57M8603	2	Elec. Connector Seal	Cavity A, B
4	57M9210	1	Elec. Connector Housing	High Propotional Y205
4	57M8633	2	Elec. Connector Accessory	-
4	57M9112	2	Elec. Connector Cavity Plug	-
4	57M8602	2	Elec. Connector Terminal	Cavity A, B
4	57M8603	2	Elec. Connector Seal	Cavity A, B
5	57M8633	1	Elec. Connector Accessory	-
5	57M8603	2	Elec. Connector Seal	Cavity A, B
5	57M8602	2	Elec. Connector Terminal	Cavity A, B
5	57M9210	1	Elec. Connector Housing	Reverse Propotional Y206
6	RE258807	16	Tie Band	-
7	AR75695	1	Socket Outlet	-
8	R112629	1	Plug	-
9	57M7752	1	Elec. Connector Housing	Trans To OOS Harness Interconnect X003B
9	57M8164	10	Elec. Connector Terminal	Cavity 1, 2, 3, 6, 8 - 10, 17, 18, 21
9	N282069	1	Elec. Connector Terminal	Cavity 7
9	R78069	20	Elec. Connector Cavity Plug	Cavity 4, 5, 11 - 16, 19, 20, 22 - 31
10	R61775	1	Boot	-
11	57M9223	2	Elec. Connector Seal	Cavity A, B
11	57M8301	2	Elec. Connector Terminal	Cavity A, B
11	57M9446	2	Elec. Connector Seal	-
11	57M8215	1	Electrical Connector Assy	Back Up Alarm H06
11	57M11557	2	Elec. Connector Accessory	-
12	57M8213	1	Elec. Connector Housing	Back Up Alarm
13	57M8616	1	Elec. Connector Housing	Trans To OOS Harness Interconnect X004B
13	57M8260	2	Elec. Connector Terminal	Cavity 2, 4
13	57M8164	13	Elec. Connector Terminal	Cavity 5, 7 - 16, 25, 28
13	57M9224	1	Elec. Connector Terminal	Cavity 23
13	R78069	8	Elec. Connector Cavity Plug	Cavity 1, 3, 6, 17, 19, 21, 22, 26
13	57M7771	5	Elec. Connector Terminal	Cavity 18, 20, 24, 27, 29
14	57M8035	2	Nut	-
15	R56461	1	O-Ring	-
16	57M9214	3	Elec. Connector Seal	Cavity A, B, C
16	57M7494	3	Elec. Connector Terminal	Cavity A, B, C
16	57M7255	1	Elec. Connector Housing	Hitch Position Sensor B19
16	57M7290	1	Elec. Connector Accessory	-
17	57M7255	1	Elec. Connector Housing	Hitch Draft Sensor B18
17	57M7290	2	Elec. Connector Accessory	-
17	57M9214	3	Elec. Connector Seal	-
17	57M7494	3	Elec. Connector Terminal	Cavity A, B, C
17	57M9214	3	Elec. Connector Seal	Cavity A, B, C
18	57M10837	1	Clamp	-
19	57M9222	1	Elec. Connector Housing	High Propotional
20	57M9775	1	Elec. Connector Housing	PTO Speed Sensor B06
20	57M9808	4	Elec. Connector Terminal	Cavity 1, 2
21	57M13599	1	Elec. Connector Housing	Hitch Stepper Motor M301
21	57M13475	1	Elec. Connector Accessory	-
21	57M8560	2	Elec. Connector Terminal	Cavity A, B
21	57M8602	2	Elec. Connector Terminal	Cavity C, D
21	57M8566	2	Elec. Connector Seal	Cavity A, B
21	57M8603	2	Elec. Connector Seal	Cavity C, D

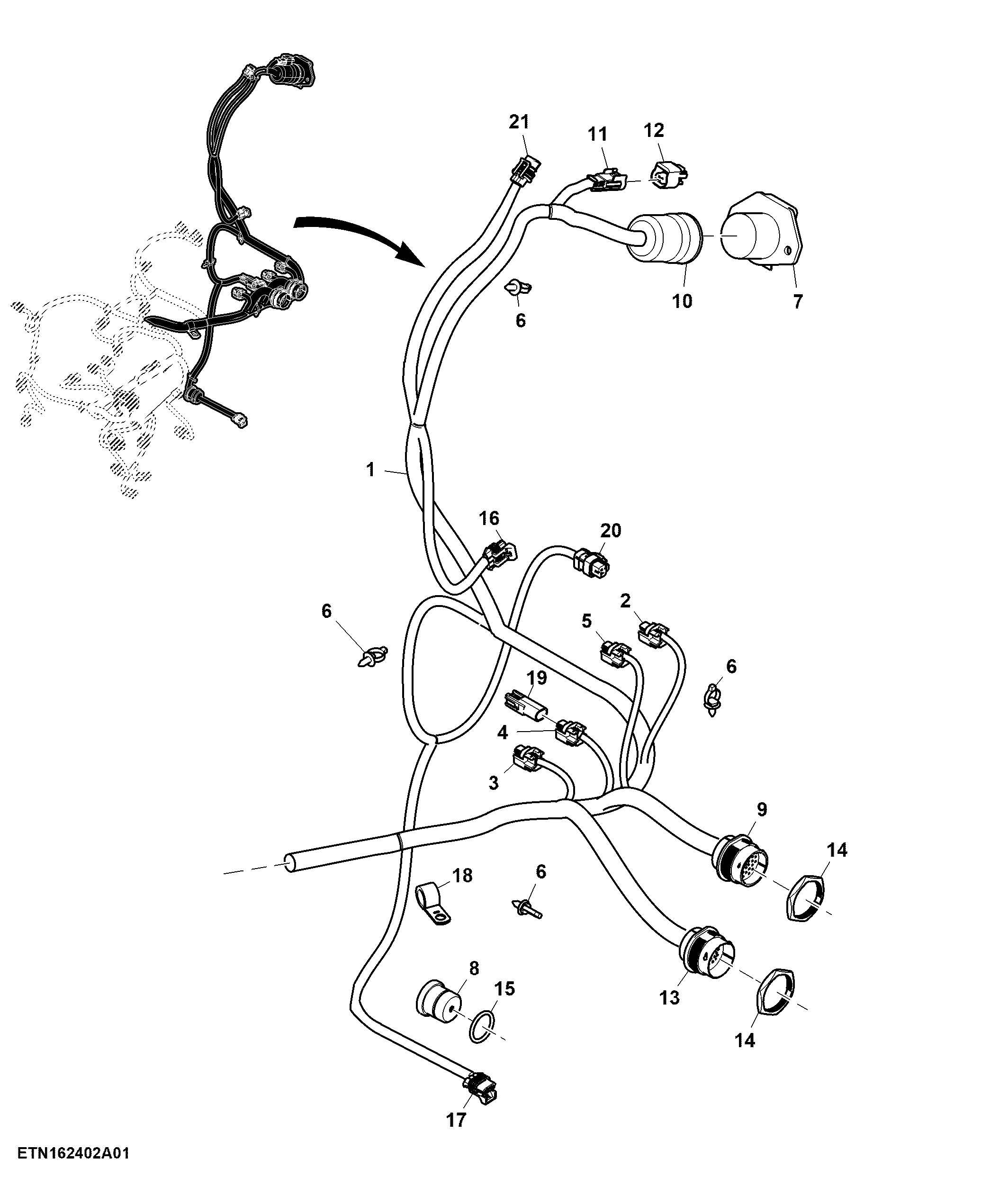

Chassis Wiring Harness, PowrQuad™(1/3)
