Chassis Wiring Harness, Low Profile (6/11)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

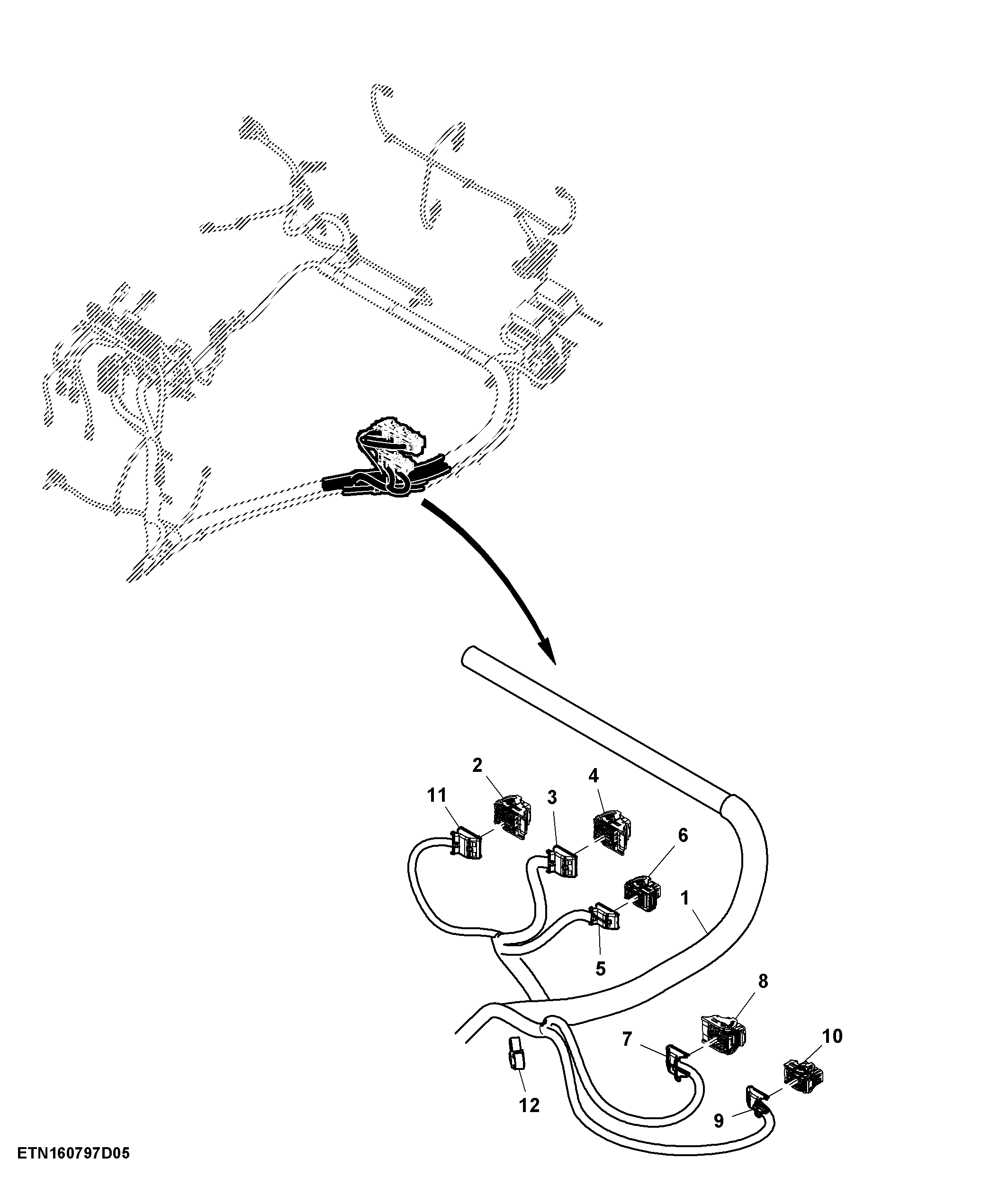

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ34688	1	Wiring Harness	OOS
2	57M10329	1	Elec. Connector Housing	Cab Controller J3 XA02-J3
2	R44302	1	Tie Band	-
2	57M10514	7	Elec. Connector Terminal	Cavity 9, 10, 20, 21, 22, 23, 31
2	57M10330	2	Elec. Connector Terminal	Cavity 40, 47
2	57M10399	5	Elec. Connector Cavity Plug	Cavity 1, 2, 3, 4, 5
2	57M10334	7	Elec. Connector Cavity Plug	Cavity 6,17, 18, 29, 30, 41, 42, 53
2	57M10333	31	Elec. Connector Cavity Plug	Cavity 7, 8, 11, 12, 13, 14, 15, 16, 19, 24, 25, 26, 27, 28, 32, 33, 34, 35, 36, 37, 38, 39, 43, 44, 45, 46, 48, 49, 50, 51, 52
3	57M10401	1	Elec. Connector Accessory	XA02-J2-1
4	R44302	1	Tie Band	-
4	57M10333	24	Elec. Connector Cavity Plug	Cavity 7, 8, 9, 10, 11, 12, 13, 14, 16, 20, 21, 22, 23, 24, 25, 26, 38, 40, 44, 45, 46, 50, 51, 52
4	57M10334	7	Elec. Connector Cavity Plug	Cavity 6, 17, 18, 29, 30, 41, 42
4	57M10399	5	Elec. Connector Cavity Plug	Cavity 1, 2, 3, 4, 5
4	57M10330	2	Elec. Connector Terminal	Cavity 34, 47
4	57M10514	13	Elec. Connector Terminal	Cavity 15, 19, 27, 28, 31, 32, 33, 35, 36, 37, 39, 43, 48, 49
4	57M10214	1	Elec. Connector Housing	Cab Controller J2 XA02-J2
5	57M10613	1	Elec. Connector Housing	XA02-J1-1
6	57M10617	1	Elec. Connector Housing	Cavity M4
6	57M10334	2	Elec. Connector Cavity Plug	Cavity L1, L4
6	57M10333	18	Elec. Connector Cavity Plug	Cavity A2, B3, B4, C1, C3, D2, D4, E3, F1, G1, G2, H1, H3, H4, J3, J4, K3, K4
6	57M10331	5	Elec. Connector Terminal	Cavity L2, L3, M1, M2, M3
6	57M10514	20	Elec. Connector Terminal	Cavity A1, A3, B1, B2, C2, C4, D1, D3, E1, E2, E4, F2, F3, F4, G3, G4, J1, J2, K1, K2
6	R44302	1	Tie Band	-
6	57M10615	1	Elec. Connector Housing	Cab Controller J1 XA02-J1
6	57M10330	2	Elec. Connector Terminal	Cavity A4, H2
7	57M10401	1	Elec. Connector Accessory	XA06-J2-1
8	57M10334	8	Elec. Connector Cavity Plug	Cavity 6, 17, 18, 29, 30, 41, 42, 53
8	57M10333	30	Elec. Connector Cavity Plug	Cavity 7, 8, 9, 10, 14, 15, 16, 19, 20, 21, 22, 23, 24, 27, 28, 31, 32, 33, 35, 36, 37, 38, 39, 40, 43, 45, 47, 48, 51, 52
8	57M10399	2	Elec. Connector Cavity Plug	Cavity 3, 5
8	57M10330	4	Elec. Connector Terminal	Cavity 44, 46, 49, 50
8	57M10514	6	Elec. Connector Terminal	Cavity 11, 12, 13, 25, 26, 34
8	57M10332	2	Elec. Connector Terminal	Cavity 2, 4
8	57M10217	1	Elec. Connector Terminal	Cavity 1
8	R44302	1	Tie Band	-
8	57M10367	1	Elec. Connector Housing	Rear 2 Controller J2 XA06-J2
9	57M10613	1	Elec. Connector Housing	XA06-J1-1
10	57M10614	1	Elec. Connector Housing	Rear 2 Controller J1 XA06-J1
10	R44302	1	Tie Band	-
10	57M10514	8	Elec. Connector Terminal	Cavity A1, B1, C1, E1, F1, G1, H2, J1
10	57M10330	7	Elec. Connector Terminal	Cavity B4, E4, F4, H1, J4, K1, K2
10	57M10331	3	Elec. Connector Terminal	Cavity L1, L2, M1
10	57M10333	25	Elec. Connector Cavity Plug	Cavity A2, A3, A4, B2, B3, C2, C3, C4, D1, D2, D3, D4, E2, E3, F2, F3, G2, G3, G4, H3, H4, J2, J3, K3, K4
10	57M10334	5	Elec. Connector Cavity Plug	Cavity L3, L4, M2, M3, M4
11	57M10401	1	Elec. Connector Accessory	XA02-J3-1
12	R213663	1	Clamp	-

Chassis Wiring Harness, Low Profile (6/11)
