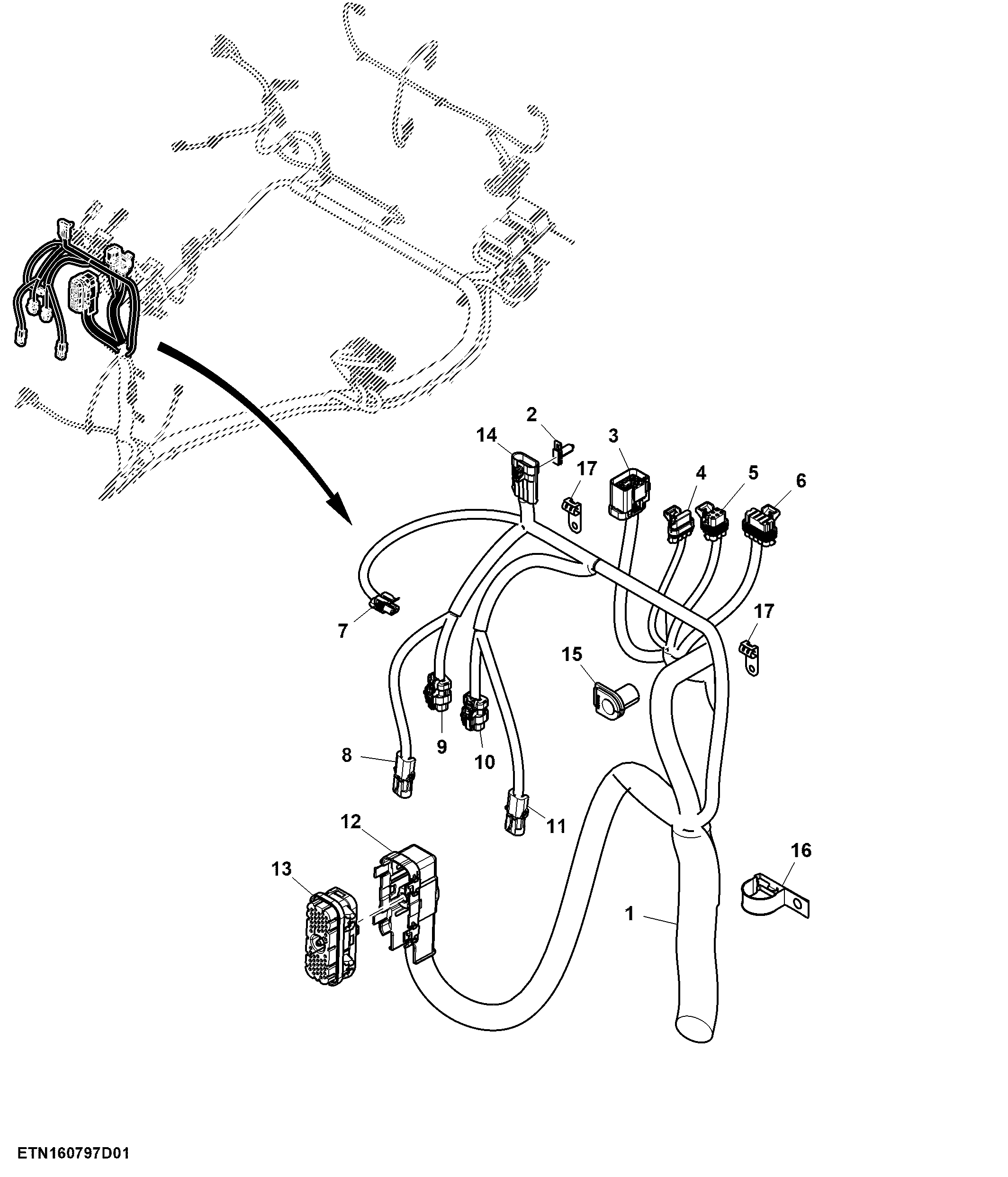

Chassis Wiring Harness, Low Profile (2/11)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ34688	1	Wiring Harness	OOS
2	57M8910	1	Clip	-
3	57M10299	1	Elec. Connector Housing	Key/Light Switch Interconnect X050A
3	57M8565	9	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9
3	57M8572	1	Elec. Connector Cavity Plug	Cavity 10
4	57M7840	1	Elec. Connector Housing	FNR Switch S14
4	57M7469	1	Electrical Connector Assy	-
4	57M7494	4	Elec. Connector Terminal	Cavity A, B, C, D
4	57M9214	4	Elec. Connector Seal	Cavity A, B, C, D
5	57M9214	4	Elec. Connector Seal	Cavity C, D, E, F
5	57M7259	2	Elec. Connector Seal	Cavity A, B
5	57M7494	4	Elec. Connector Terminal	Cavity C, D, E, F
5	57M7291	1	Electrical Connector Assy	-
5	57M7260	1	Elec. Connector Housing	Clutch Pot B13
6	57M7262	1	Elec. Connector Housing	Multifunction Switch Interconnect X051A
6	R104846	9	Elec. Connector Terminal	Cavity A, B, C, D, E, F, G, H, J
6	57M9215	9	Elec. Connector Seal	Cavity A, B, C, D, E, F, G, H, J
6	57M7259	1	Elec. Connector Seal	Cavity K
7	57M7254	1	Elec. Connector Housing	Brake Oil Level Switch B556
7	57M9712	1	Elec. Connector Accessory	-
7	57M7494	2	Elec. Connector Terminal	Cavity A, B
7	57M9214	2	Elec. Connector Seal	Cavity A, B
8	R78053	1	Electrical Connector Assy	Right Brake Switch B200
8	57M9549	2	Elec. Connector Seal	Cavity A, B
8	57M7251	2	Elec. Connector Terminal	Cavity A, B
9	57M9780	1	Elec. Connector Housing	Right Brake Pressure Sensor B100
9	57M9808	3	Elec. Connector Terminal	Cavity 1, 2, 3
10	57M9780	1	Elec. Connector Housing	Left Brake Pressure Sensor B102
10	57M9808	3	Elec. Connector Terminal	Cavity 1, 2, 3
11	R78053	1	Electrical Connector Assy	Left Brake Switch B202
11	57M7251	2	Elec. Connector Terminal	Cavity A, B
11	57M9549	2	Elec. Connector Seal	Cavity A, B
12	R528122	1	Elec. Connector Accessory	Engine ECU J3 XA5505-J3-1
13	57M9808	9	Elec. Connector Terminal	Cavity 1, 2, 7, 16, 17, 27, 30, 43, 44
13	57M9814	37	Elec. Connector Cavity Plug	Cavity 3, 4, 5, 6, 8, 9, 10, 15, 18, 19, 20, 21, 22, 25, 26, 28, 29, 31, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 45, 46, 47, 48, 49, 51, 52, 53, 54
13	57M10321	8	Elec. Connector Terminal	Cavity 11, 12, 13, 14, 23, 24, 32, 50
13	RE538505	1	Elec. Connector Accessory	XA5505-J3
14	57M7839	1	Electrical Connector Assy	Hood Interconnect X180A
14	57M7469	1	Electrical Connector Assy	-
14	57M7252	4	Elec. Connector Terminal	Cavity A, B, C, D
14	57M9215	4	Elec. Connector Seal	Cavity A, B, C, D
15	R112653	1	Grommet	-
16	57M9881	1	Clamp	-
17	57M9435	2	Clamp	-

Chassis Wiring Harness, Low Profile (2/11)
