Открытый узел

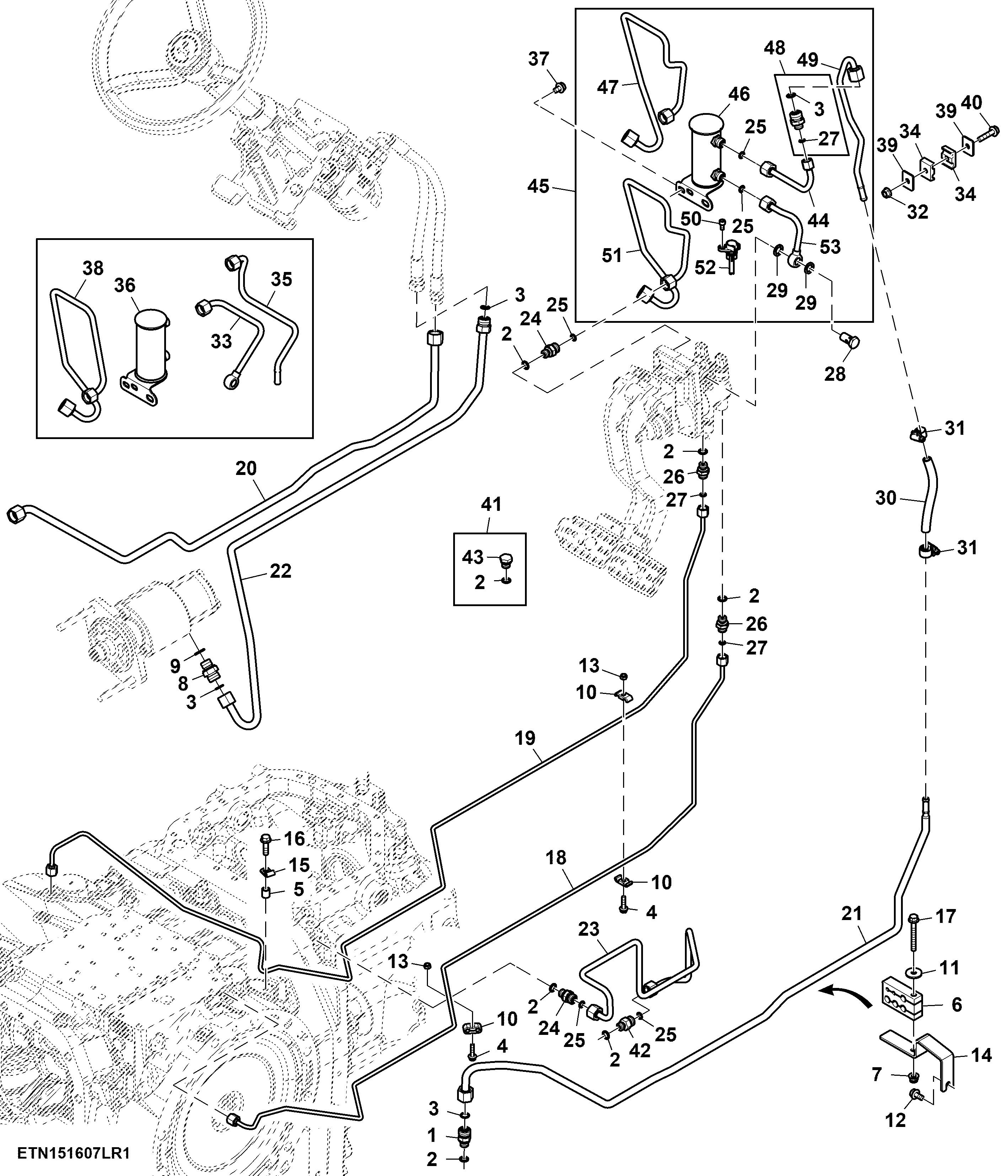

Brake Lines, OOS (For North America)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H5009	1	Adapter Fitting	-
2	51M7041	7	O-Ring	11.300 X 2.200 mm
3	T77857	4	O-Ring	-
4	19M7863	2	Screw	M6 X 25
5	28H3376	1	Spacer	0.364" X 0.540" X 9/16"
6	SU23188	1	Clamp	-
7	14M7396	1	Lock Nut	M8
8	38H5003	1	Adapter Fitting	-
9	51M7043	1	O-Ring	15.300 X 2.200 mm
10	SU63293	2	Clamp	-
11	24M7024	1	Washer	9 X 28 X 3 mm
12	19M7865	1	Screw	M8 X 16
13	14M7165	2	Lock Nut	M6
14	SU34982	1	Bracket	Chassis Line
15	H22660	1	Clip	-
16	19M7868	1	Screw	M8 X 30
17	19M7802	1	Screw	M8 X 65
18	SJ27546	1	Brake Line	RH
19	SJ27547	1	Brake Line	LH
20	SJ27543	1	Oil Line	Steering Return Oil Line
21	SJ27882	1	Oil Line	Brake Return
22	SJ20089	1	Line	Steering Supply Line
23	SJ27542	1	Oil Line	Transmission Lube Supply Line
24	38H5002	2	Adapter Fitting	-
25	T77613	5	O-Ring	-
26	38H5011	2	Adapter Fitting	-
27	T77814	3	O-Ring	-
28	38M7008	1	Hollow Screw	-
29	R64857	2	Washer	-
30	SU46700	1	Hose	LGTH = 157 mm, Brake Return
31	TY22464	2	Clamp	-
32	14M7298	1	Flange Nut	M8
33	SJ31073	1	Oil Line	Brake Return ORDER BSJ10619
34	H128515	2	Clamp	-
35	SJ34524	1	Oil Line	Brake Return to Resevoir ORDER BSJ10619
36	SJ31074	1	Reservoir	Brake Return Reservoir ORDER BSJ10619
37	19M7864	1	Screw	M8 X 12
38	SJ31794	1	Oil Line	Loop Brake Supply Line ORDER SJ37897
39	H121163	2	Strap	-
40	19M8291	1	Screw	M8 X 35
41	RE46684	1	Fitting Plug	-
42	SJ25720	1	Fitting	-
43	R107768	1	Drain Plug	-
44	SJ39413	1	Oil Line	Brake Return
45	BSJ10619	1	Hardware Kit	Brake Reservoir
46	SJ37860	1	Hydraulic Reservoir	Brake Return Reservoir Line
47	SJ37873	1	Oil Line	Brake Supply Line
48	AL212959	1	Check Valve	-
49	SJ39411	1	Oil Line	Brake Return
50	19M10457	1	Socket Head Screw	M6 X 12
51	SJ37897	1	Oil Line	Brake Supply Line
52	SJ38127	1	Plug	-
53	SJ37875	1	Oil Line	Brake Return Line

Brake Lines, OOS (For North America)

Нет текстового описания
