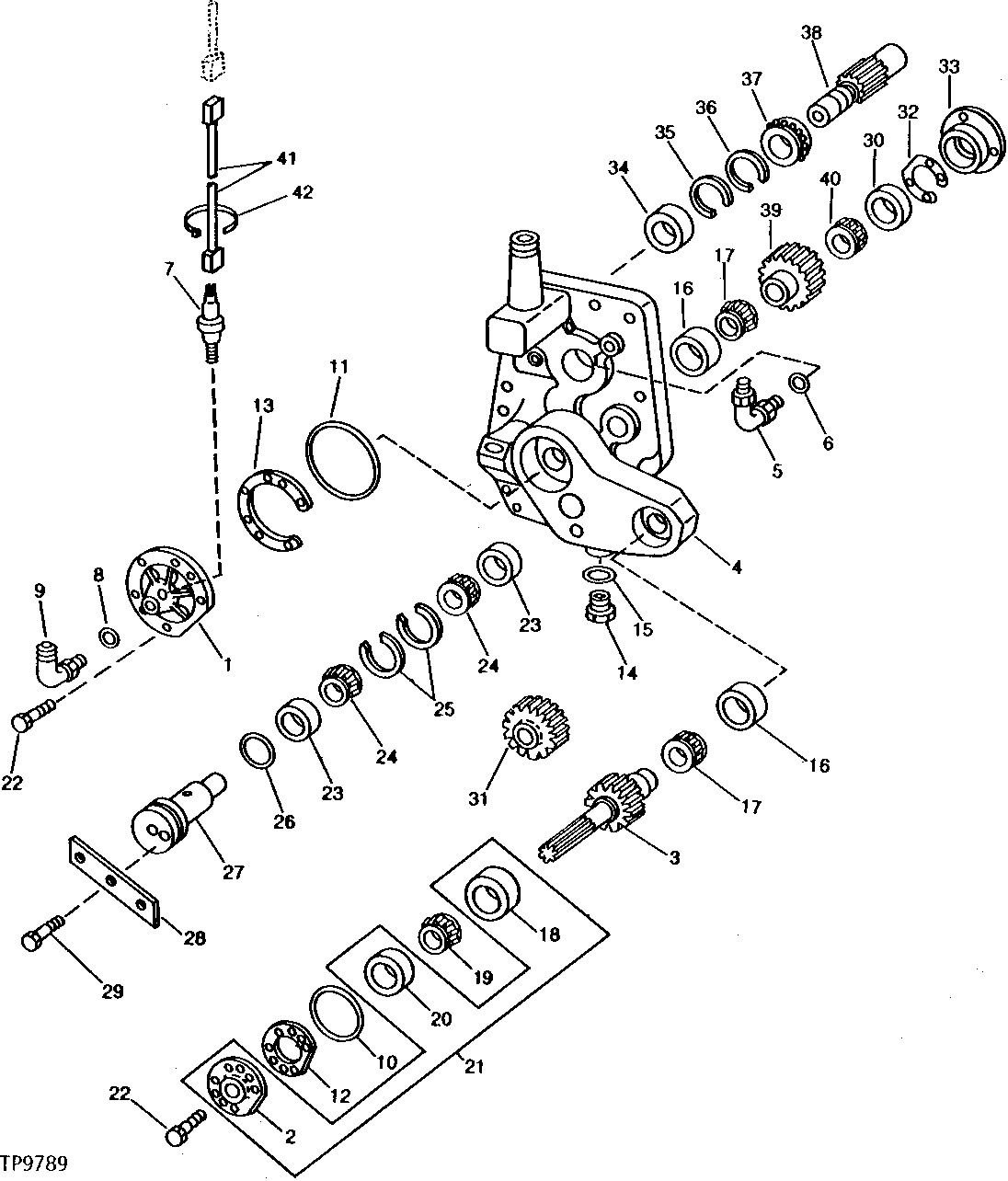

TRANSFER CASE ASSEMBLY (MECHANICAL FRONT WHEEL DRIVE) [01C22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T75868	1	BEARING HOUSING W/O BEARING	CLUTCH
2	-	1	Part 2	OUTPUT, (MARKED T75879) (SUB AT159829)
3	T145297	1	SHAFT	(SUB FOR T77530) (25 TEETH)
4	AT73986	1	COVER	(MARKED T75883)
5	RE56322	1	Tee Fitting	(SUB FOR AT32333)
6	R26286	1	O-Ring	-
7	AT85174	1	Switch	(SUB FOR AR27977)
8	R26448	1	O-Ring	-
9	AT35121	1	Elbow Fitting	-
10	U10746	1	O-Ring	-
11	T41326	1	O-Ring	-
12	T75882	1	SHIM	.010"
12	T75881	1	SHIM	.005"
12	T75880	1	SHIM	.003"
13	T75869	1	SHIM	.003"
13	T75870	1	SHIM	.005"
13	T75871	1	SHIM	.010"
14	T78662	1	Drain Plug	(SUB FOR T76939)
15	U17409	1	O-Ring	-
16	JD9159	2	Bearing Cup	-
17	JD9602	2	Bearing Cone	-
18	JD7424	1	Bearing Cup	-
19	JD8968	1	Bearing Cone	-
20	AT157354	1	SEAL	(SUB FOR AT73991, AT113834 AND AT124414)
21	AT159829	1	BEARING HOUSING W/O BEARING	-
22	19M7662	11	Cap Screw	M10 X 30
23	JD7263	2	Bearing Cup	-
24	JD8976	2	BEARING CONE	-
25	U43882	2	SNAP RING	-
26	F1870R	1	O-Ring	-
27	T76576	1	PIN FASTENER	-
28	T48434	1	STRAP	-
29	19M7938	3	Cap Screw	M10 X 20
30	JD8206	1	Bearing Cup	-
31	T75872	1	GEAR	(37 TEETH)
32	T75865	1	SHIM	.010"
32	T75864	1	SHIM	.005"
32	T75863	1	SHIM	.003"
33	T75862	1	BEARING HOUSING W/O BEARING	INPUT
34	AR90861	1	Seal	(SUB FOR AR55966, THIS APPLICATION)
35	M2353T	1	Snap Ring	-
36	F2367R	1	SNAP RING	-
37	JD9344	1	Ball Bearing	-
38	T76479	1	SHAFT	(21 TEETH)
39	T75890	1	GEAR	DRIVE (27 TEETH)
40	JD8946	1	Bearing Cone	-
41	AT75792	1	WIRING LEAD	MFWD INDICATOR
42	H77698	3	Tie Band	(SUB FOR T44946)
43	T33593	2	DOWEL PIN	-

TRANSFER CASE ASSEMBLY (MECHANICAL FRONT WHEEL DRIVE) [01C22]

Нет текстового описания
