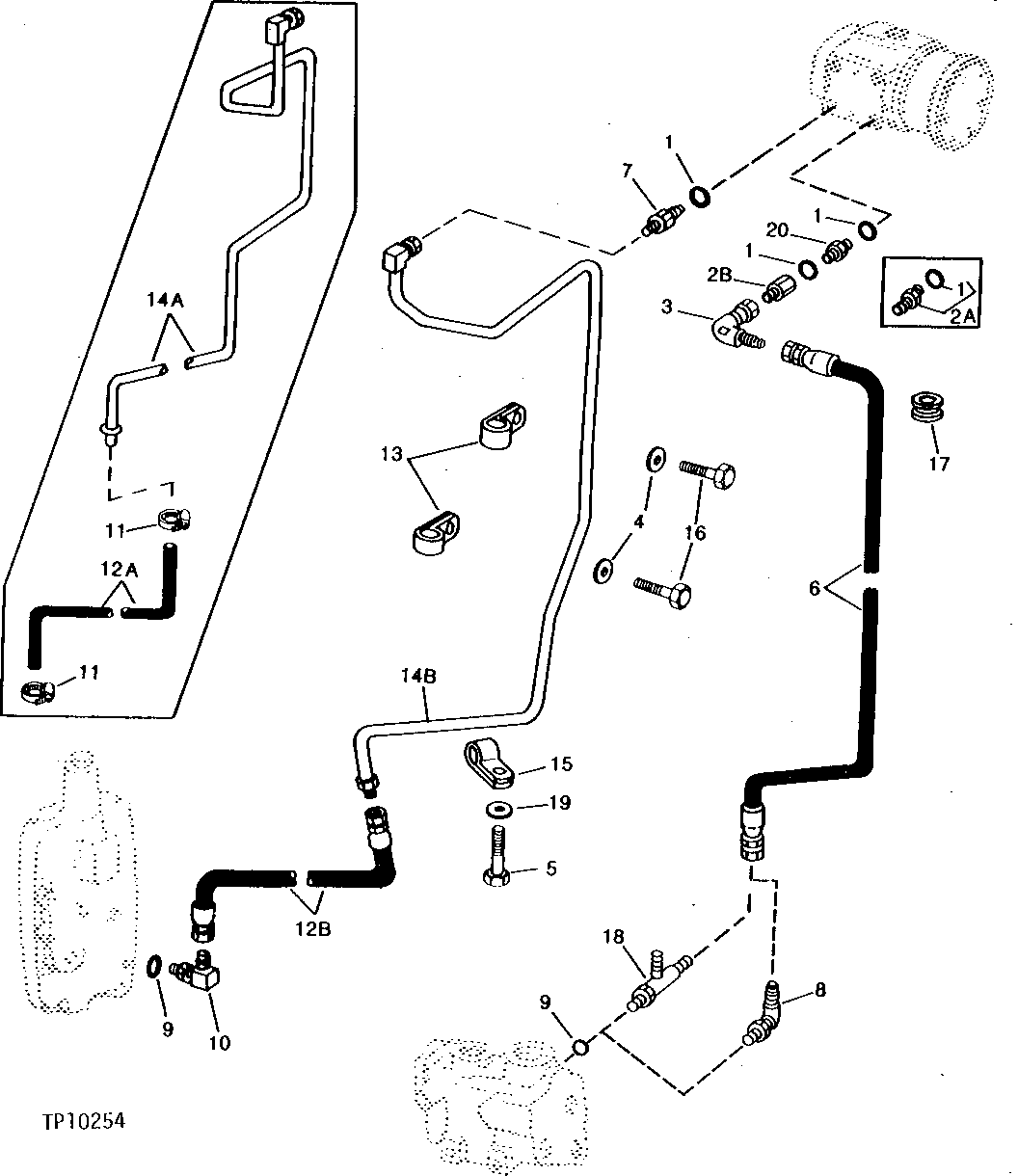

STEERING VALVE TO PRIORITY VALVE AND TRANSMISSION OIL LINE [01I20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26375	3	O-Ring	-
1	R26375	2	O-Ring	-
3	AE24616	1	Elbow Fitting	(SUB FOR AR67586)
3	AT38127	1	Elbow Fitting	-
4	24H1305	2	Washer	13/32" X 13/16" X 0.065"
5	19H2021	1	Cap Screw	3/8" X 5/8"
6	AT62085	1	HYDRAULIC HOSE - FABRICATE	9/16" X 1 067 MM (42") X 9/16"
7	R27237	1	Fitting	314 MM LONG (9/16" X 12")
8	AT35121	1	Elbow Fitting	(WITHOUT MFWD)
9	R26448	2	O-Ring	-
10	AT35120	1	Elbow Fitting	-
10	AT68978	1	Elbow Fitting	(SUB AT51103, AT75994 AND AT35120)
11	AR21837	2	Clamp	-
13	H75541	2	Clamp	(SUB FOR R34557)
15	H86139	1	CLIP	-
16	19H2461	2	CAP SCREW	3/8" X 1-1/4"
17	T28741	1	GROMMET	-
18	AT37518	1	Tee Fitting	(WITH MFWD)
19	24H1304	1	WASHER	13/32" X 23/32" X 0.120"
20	R63922	1	Fitting	-
2A	AT79012	1	CHECK VALVE	(SUB FOR AT58695)
2B	AT77488	1	CHECK VALVE	-
12A	T67708	1	HYDRAULIC HOSE	.... X 575 MM (22-3/4") X .... (SUB AT51103, AT35120 AND AT75994)
12B	AT51103	1	HYDRAULIC HOSE - FABRICATE	3/4" X 889 MM (35") X 3/4", (SUB FOR AT66579, THIS APPLICATION)
14A	AT69903	1	OIL LINE	(SUB AT51103, AT35120 AND AT75994)
14B	AT75994	1	LINE	(SUB FOR AT75996)

STEERING VALVE TO PRIORITY VALVE AND TRANSMISSION OIL LINE [01I20]

Нет текстового описания
