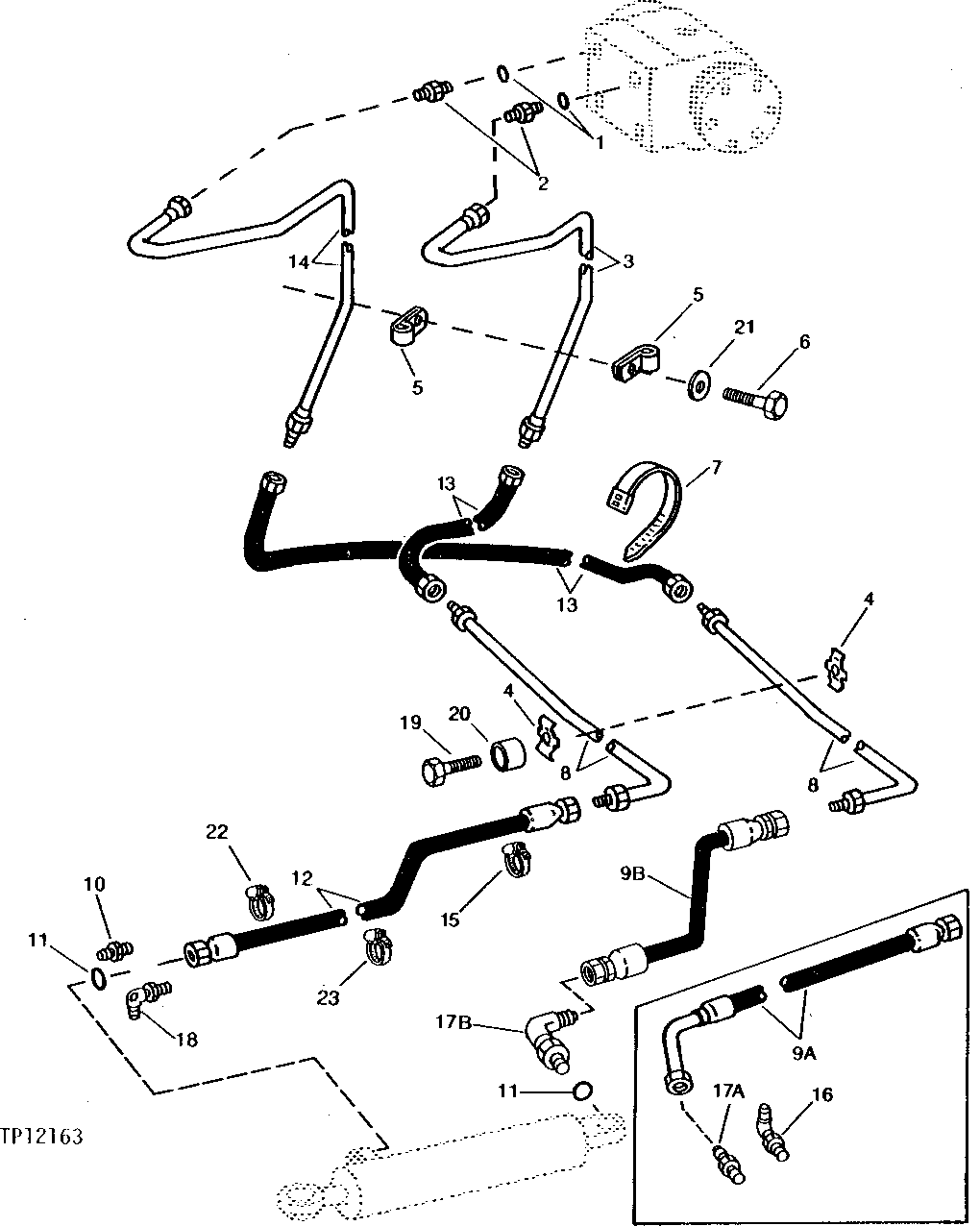

STEERING VALVE TO CYLINDER OIL LINES [01I22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26375	2	O-Ring	-
2	R36426	2	Fitting	-
3	AT67069	1	LINE	-
4	R42009	6	Clamp	-
5	T13814	4	Clamp	(SUB FOR T38545, THIS APPLICATION)
6	19H1648	2	Cap Screw	3/8" X 3/4"
7	R44302	1	Tie Band	-
8	AT75376	2	OIL LINE	-
10	R27212	1	Fitting	(USE WITHOUT MFWD)
11	R26448	2	O-Ring	-
12	AT48433	1	Hydraulic Hose	9/16" X 838 MM (33") X 9/16", (USE WITH MFWD)
12	AT67064	1	Hydraulic Hose	9/16" X 750 MM (29-1/2") X 9/16", (USE WITHOUT MFWD)
13	AT64907	2	HYDRAULIC HOSE - FABRICATE	9/16" X 1 016 MM (40") X 9/16"
14	AT67070	1	LINE	-
15	AR21837	2	Clamp	-
16	AT38033	1	Elbow Fitting	45° (USE WITHOUT MFWD) (SUB R27212, THIS APPLICATION)
18	AT35121	1	Elbow Fitting	90° (USE WITH MFWD)
19	19H218	3	Cap Screw	3/8" X 1"
20	28H856	3	Washer	0.423" X 0.675" X 3/16"
21	24H1305	2	Washer	13/32" X 13/16" X 0.065"
22	AR21999	1	Hose Clamp	-
23	AR21839	1	Clamp	-
9A	AT67065	1	HYDRAULIC HOSE - FABRICATE	9/16" X 508 MM (20") X 9/16", (SUB AT80439 AND AT35121)
9B	AT80439	1	HYDRAULIC HOSE - FABRICATE	9/16" X 494 MM (19-1/2") X 9/16"
17A	R27212	1	Fitting	(USE WITH MFWD)
17B	AT35121	2	Elbow Fitting	(USE WITH AND WITHOUT MFWD)

STEERING VALVE TO CYLINDER OIL LINES [01I22]
