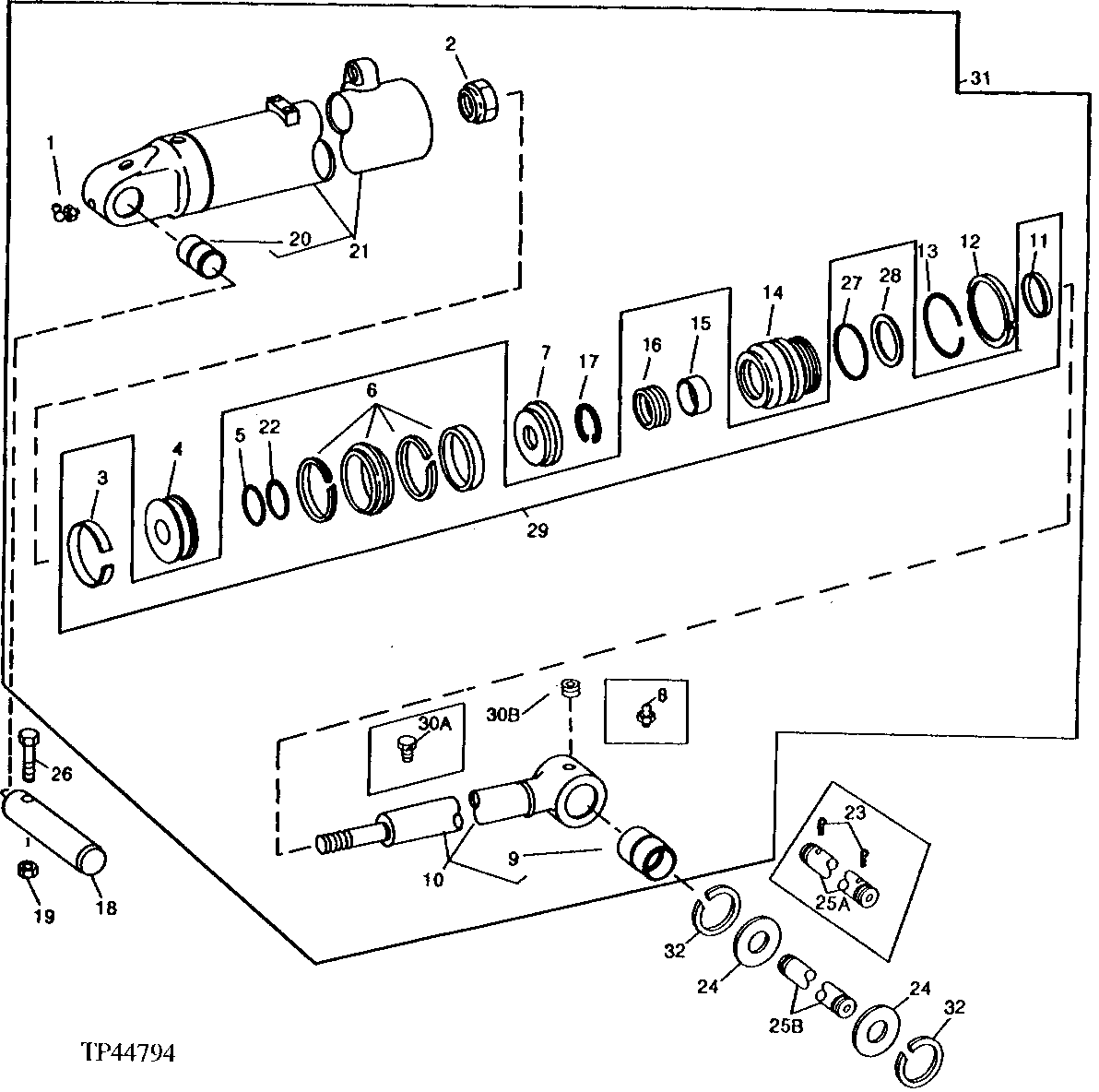

STABILIZER CYLINDER (SERIAL NO. -719455) [03E01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD7781	1	Lubrication Fitting	1/8"
2	L2235CU	1	LOCK NUT	(SUB FOR L2309CU, THIS APPLICATION)
3	U17337	1	WEAR RING	(BK)
4	U17334	1	PISTON	-
5	R29463	1	O-Ring	(RK)
6	RE11904	1	SEAL	(BK)
7	R77809	1	PISTON	-
8	JD7759	1	Lubrication Fitting	1/8", (SUB 15H558, THIS APPLICATION)
9	R72776	1	Bushing	-
10	RE12051	1	HYDRAULIC CYLINDER ROD	-
11	L2029CU	1	SEAL	(RK)
12	U12103	1	NUT	(SUB FOR R78834)
13	L2300CU	1	SNAP RING	(SUB FOR R75554, THIS APPLICATION)
14	R75413	1	GUIDE	-
15	U41578	1	WEAR RING	(RK)
16	R76801	1	PACKING	(RK)
17	N10193	1	SNAP RING	-
18	T68296	1	PIN FASTENER	-
19	14M7319	1	Lock Nut	M12
20	R72776	1	Bushing	-
21	RE12052	1	HYDRAULIC CYLINDER BARREL	-
22	R78389	2	WASHER	(RK) (SUB FOR T42032, THIS APPLICATION)
23	11H227	2	Cotter Pin	3/8" X 3", (USE WITH T68297)
24	24H1598	2	Washer	2-1/16" X 3-1/2" X 0.105"
26	19M7949	1	Cap Screw	M12 X 100
27	A5598R	1	O-Ring	(BK)
28	R79122	1	Back-Up Ring	(BK)
29	AR105378	1	KIT	(SUB RE16118 AND RE16119)
31	-	1	Part 33	( AR101733 NO LONGER AVAILABLE)
25A	T68297	1	PIN FASTENER	(SUB T127437 AND (2) 40M7166)
25B	T127437	1	Pin Fastener	(SUB FOR T127168)
30A	R42852	1	Pipe Plug	(SUB 15H558, THIS APPLICATION)
30B	15H558	1	Pipe Plug	1/8"
32A	40M7180	1	Snap Ring	(USE WITH T127168)
32B	40M7166	1	Snap Ring	(USE WITH T127437)
