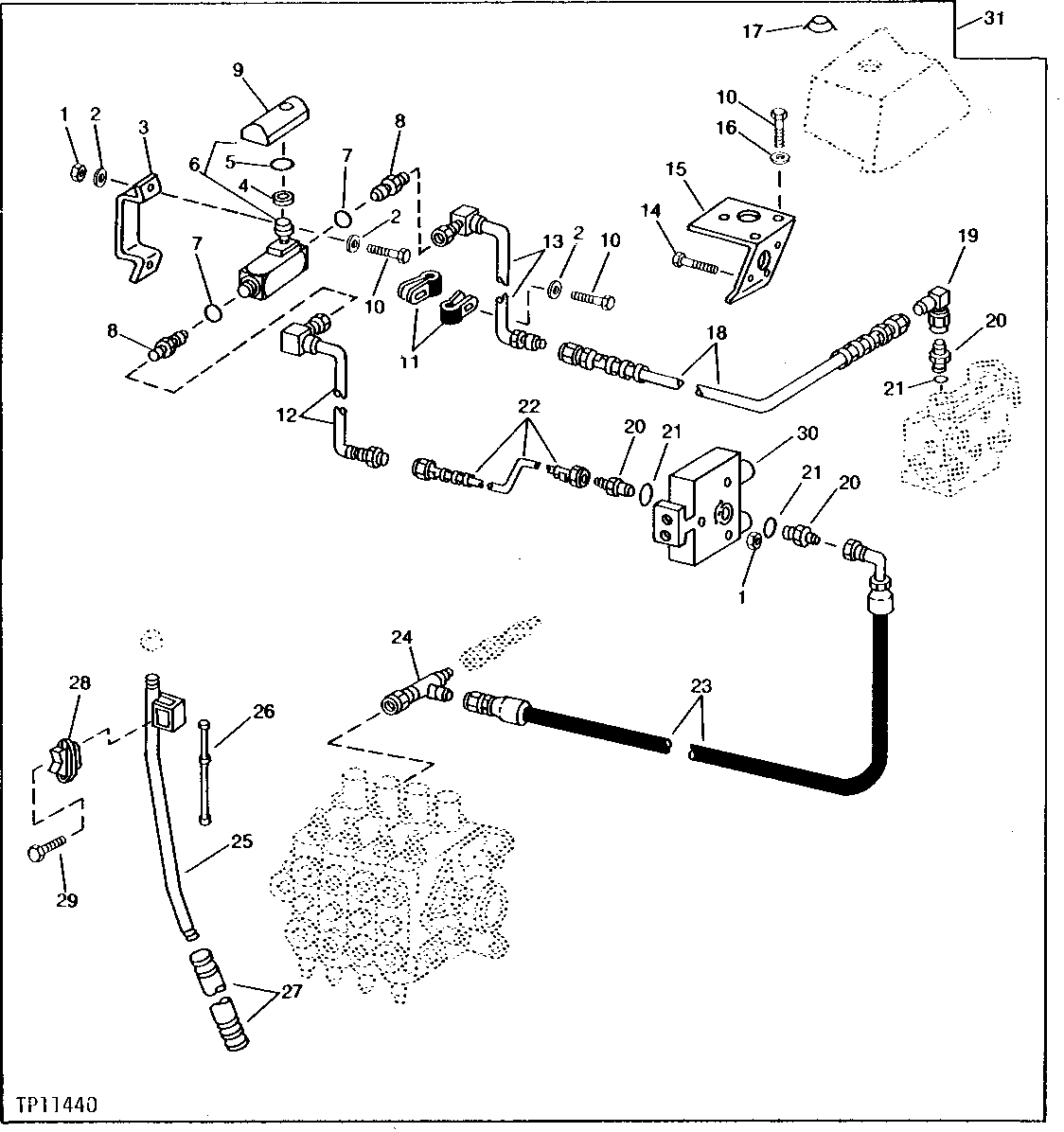

SOLENOID AUXILIARY VALVE (SERIAL NO. -718907) [03G22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7274	6	Nut	M10
2	24M7028	5	Washer	10.500 X 20 X 2 MM
3	T76941	1	CLAMP	-
4	W23690	1	Back-Up Ring	-
5	32246	1	O-Ring	-
6	AT75430	1	FLOW CONTROL HYD. VALVE	-
7	R29936	2	O-Ring	-
8	T37105	2	ADAPTER FITTING	-
9	T76942	1	ISOLATOR	-
10	19M7402	6	Cap Screw	M10 X 25
11	R46414	2	Clamp	(SUB FOR AH78125, THIS APPLICATION)
12	AT75431	1	OIL LINE	-
13	AT75432	1	OIL LINE	-
14	19M7668	3	Cap Screw	M10 X 100
15	AT76399	1	SUPPORT	-
16	24M7101	3	Washer	11 X 34 X 3 MM
17	T76943	1	ESCUTCHEON	-
18	AT75428	1	HYDRAULIC HOSE - FABRICATE	7/8" X 1 455 MM (57-1/4") X 7/8"
19	AH77612	1	Elbow Fitting	90°
20	T76951	3	ADAPTER FITTING	-
21	U17409	3	O-Ring	-
22	AT75447	1	HYDRAULIC HOSE - FABRICATE	7/8" X 480 MM (19") X 7/8"
23	AT75448	1	HYDRAULIC HOSE	7/8" X 360 MM (14-1/4") X 3/4"
24	AN33434	1	Tee Fitting	-
25	AT75443	1	LEVER	SWITCH BRACKET
26	AT75445	1	WIRING HARNESS	-
27	T76950	1	Conduit	-
28	AT75444	1	ROCKER SWITCH	-
29	21H1353	2	Screw	0.138" X 3/4"
30	-	1	Part 30	(NO LONGER AVAILABLE) (SUBSTITUTES ARE AVAILABLE, CONTACT CUSTOM ENGINEERING DEPT.,DUBUQUE, IOWA) (SUB AT75442) (INCLUDES (2) AR81175 AND AT77265) (SUB AT107665 AND (2) T37105)
31	AT75441	1	VALVE	(SUB AT83897 ALONG WITH AT83890)

SOLENOID AUXILIARY VALVE (SERIAL NO. -718907) [03G22]
