Открытый узел

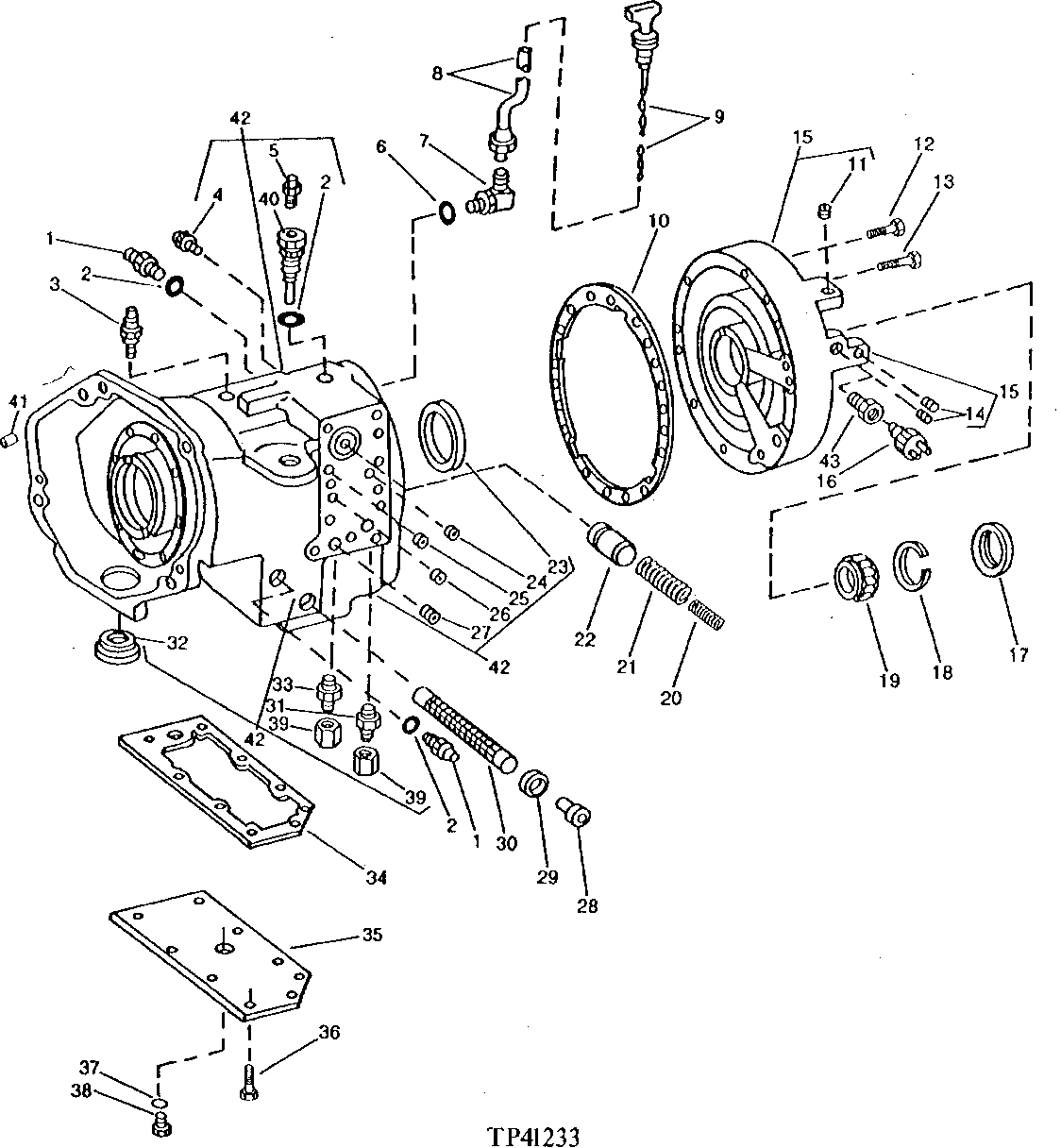

REVERSER CASE AND REAR COVER [01D03]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T75307	2	Adapter Fitting	(SUB FOR R40122, THIS APPLICATION)
2	U12547	3	O-Ring	(SUB FOR U12547, THIS APPLICATION)
3	AT37368	1	SENDER	TRANSMISSION OIL TEMPERATURE (STEWART-WARNER)
4	RE57836	1	Pipe Plug	(SUB FOR 15H561) 1/2"
5	U14273	1	Breather	(USE WITH AT85506)
6	U13639	1	O-Ring	-
7	X20C5OX-S	1	Elbow Fitting	(SUB FOR AT35600)
8	AT67330	1	DIPSTICK TUBE	-
9	AT107876	1	DIPSTICK	(SUB FOR AT67331)
10	T67198	1	GASKET	-
11	15H666	1	Pipe Plug	3/8"
12	19M7786	6	Screw	M10 X 30
13	19M7812	1	Screw	M10 X 100
14	15H275	2	Pipe Plug	1/4"
15	AT64180	1	COVER	(MARKED T67197)
16	AL27809	1	SWITCH	(REVERSE WARNING ALARM) (SUB FOR AR86974) (USE IF AVAILABLE)
16	AL67715	1	Switch	(SUB FOR AL27809)
17	R35643	1	Seal	-
18	F2367R	1	SNAP RING	-
19	JD9344	1	Ball Bearing	(SUB FOR JD9387, THIS APPLICATION)
20	T72401	1	COMPRESSION SPRING	-
21	R47449	1	Compression Spring	-
22	R47319	1	PISTON	-
23	R51328	1	Bushing	-
24	T71307	1	Orifice	-
25	T71306	1	Orifice	-
26	T71023	1	ORIFICE	-
27	15H690	1	Pipe Plug	3/4"
28	R40147	1	FITTING	(SUB FOR T77170 OR U15973, THIS APPLICATION) (DISCARD A4808R WASHER)
28	T77170	1	Fitting Plug	-
29	A4808R	1	WASHER	(SUB FOR T77170 AND U15973, THIS APPLICATION) (DISCARD A4808R WASHER)
29	U15973	1	O-Ring	-
30	R53169	1	Screen	(SUB FOR AR26375)
31	T76027	1	Adapter Fitting	3/4"
32	T72326	1	Plug	-
33	R44795	1	Adapter Fitting	3/8"
34	T79450	1	GASKET	(SUB FOR T67200)
35	T76940	1	COVER	-
36	19M7167	8	Cap Screw	M10 X 25
37	U17409	1	O-Ring	-
38	T78662	1	Drain Plug	(SUB FOR T76939)
39	R39783	2	Fitting	-
40	AT85506	1	FITTING	(SUB FOR AT75423)
41	R26919	1	WASHER	(TACHOMETER DRIVE SEAL)
42	AT64179	1	CASE	(MARKED T67196)
43	15H639	1	Pipe Bushing	1/8"

REVERSER CASE AND REAR COVER [01D03]
