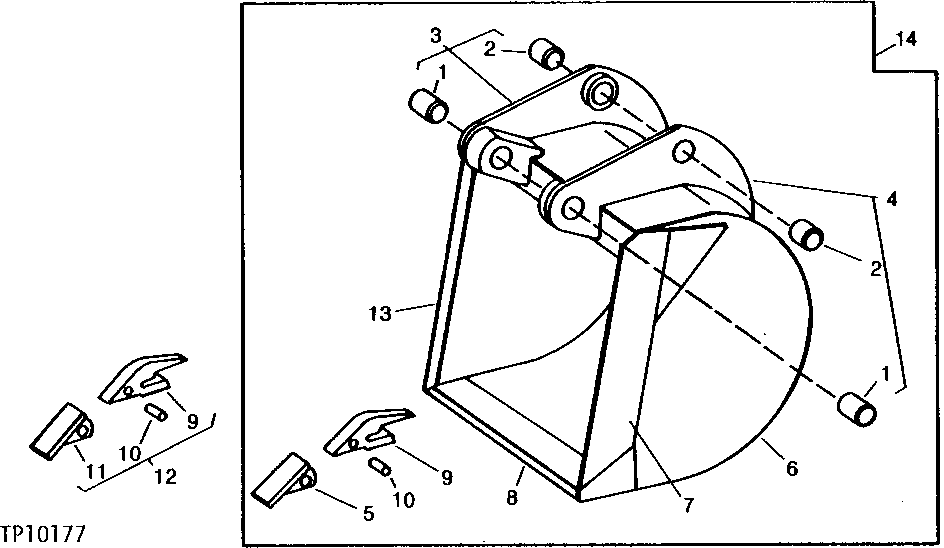

REPLACEMENT HEAVY-DUTY BUCKETS 457 MM, 609 MM AND 762 MM (18", 24" AND 30") [03B15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T105987	2	BUSHING	(SUB FOR U42736)
2	T105988	4	Bushing	(SUB FOR U42739)
3	-	1	Part 3	(SUB AT76972, AT76971 OR AT76969)
4	-	1	Part 4	(SUB AT76972, AT76971 OR AT76969)
5	T230SP	1	Tooth	(SUB FOR T54317) (4 USED WITH 457 MM (18") AND 609 MM (24") BUCKET, 5 USED WITH 762 MM (30") BUCKET)
6	-	1	Part 6	(SUB AT37726, AT37727 OR AT37728)
7	T38875	1	CUTTING EDGE	SIDE
8	T38865	1	CUTTING EDGE	FRONT (FOR 762 MM (30") BUCKET)
8	T38862	1	CUTTING EDGE	FRONT (FOR 609 MM (24") BUCKET)
8	T38856	1	CUTTING EDGE	FRONT (FOR 457 MM (18") BUCKET)
9	U43792	1	Bucket Tooth Adapter	(SUB FOR U42750)
10	T40910	1	PIN	-
11	U42751	1	POINT	-
12	-	1	Part 14	(3 USED WITH 457 MM (18"), 4 USED WITH 609 MM (24") BUCKET, 5 USED WITH 762 MM (30") BUCKET) ( AU41838 - NO LONGER AVAILABLE) (SUB T40910, U43792 AND U42751)
13	T38876	1	CUTTING EDGE	SIDE
14	-	1	Part 16	457 MM (18") (USE AT76972 IF AVAILABLE) (SUB AT114261) (SUB FOR AT37726)
14	-	1	Part 17	609 MM (24") (USE AT76971 IF AVAILABLE) (SUB AT114258) (SUB FOR AT37727)
14	-	1	Part 18	762 MM (30") ( AT76969 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS) (SUB FOR AT37728)
