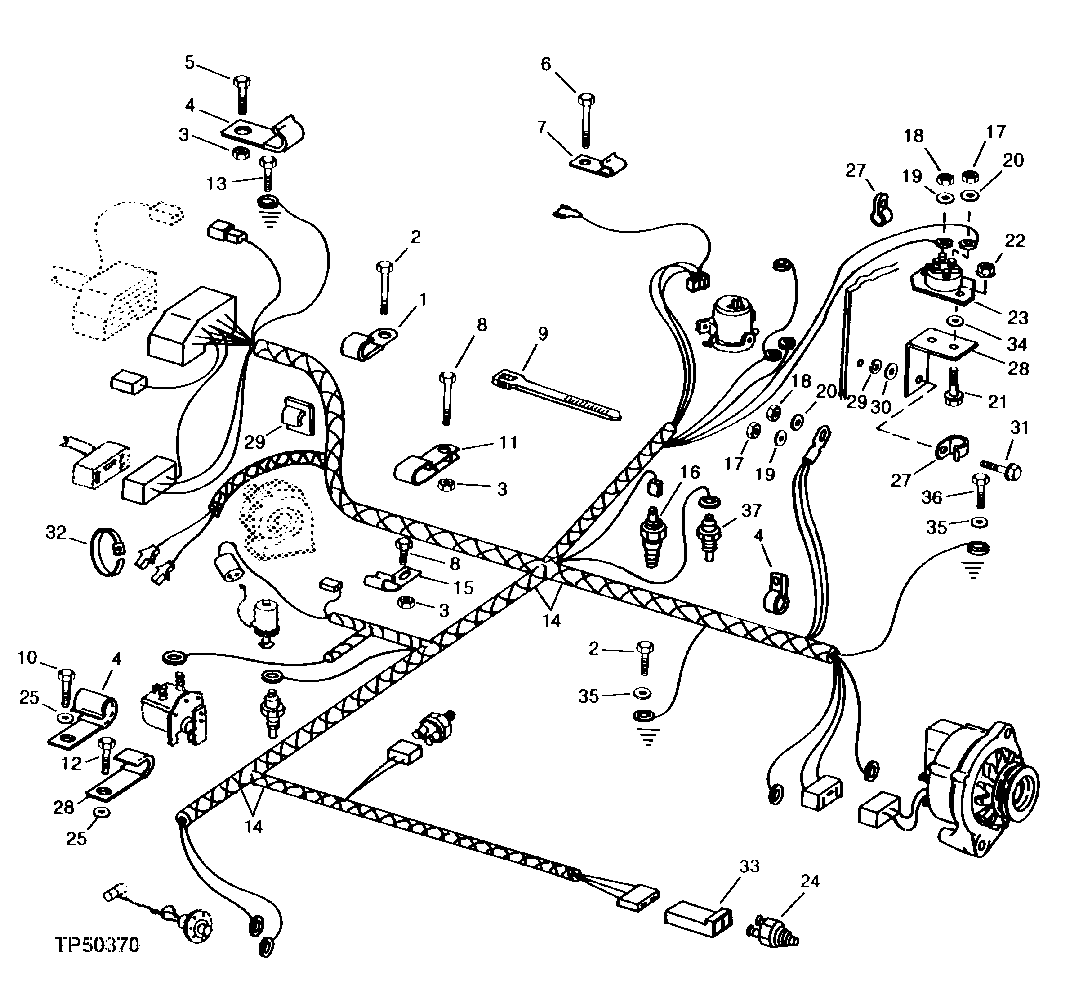

ENGINE WIRING HARNESS (WITHOUT AIR CONDITIONER) [02C18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R45211	1	Clamp	-
2	19H2038	1	Cap Screw	3/8" X 1/2"
3	14M7298	1	Flange Nut	M8
4	T19935	2	Clamp	-
5	19M7139	1	Cap Screw	M8 X 20
6	19M7008	1	Cap Screw	M8 X 10
7	N10011	1	Clip	-
8	19M7865	1	Screw	M8 X 16
9	R76477	1	Tie Band	(SUB FOR R45440)
10	37H29	1	Screw	5/16" X 5/8"
11	R49921	1	Clamp	-
12	19H3649	1	CAP SCREW	9/16" X 1"
13	21M7267	1	Screw	M6 X 20
14	-	1	Part 14	( AT74091 NO LONGER AVAILABLE)
14	T32231	1	Clamp	HORN LEAD
14	T75197	1	Clamp	COWL SUPPORT
15	T19935	1	Clamp	(SUB FOR R55618, THIS APPLICATION)
16	AT85174	1	Switch	(SUB FOR AR27977) ENGINE OIL PRESSURE
17	14H785	3	Nut	5/16"
18	14H631	3	Nut	0.190"
19	12H295	3	Lock Washer	0.190"
20	12H291	4	Lock Washer	5/16"
21	19M7862	1	Screw	M6 X 20
22	14M7303	2	Flange Nut	M6
23	-	1	Part 25	( AT68973 NO LONGER AVAILABLE) (SUB RE38391)
23	RE38391	1	Starter Relay	-
24	AL27809	1	SWITCH	REVERSE WARNING ALARM (SUB FOR AR86974) (USE IF AVAILABLE) (SUB FOR R32548, THIS APPLICATION)
24	AL67715	1	Switch	(SUB FOR AL27809)
25	24H1890	1	Washer	19/32" X 1" X 1/4"
26	T13744	1	Clamp	-
27	T19935	3	Clamp	(SUB FOR AH89557, THIS APPLICATION)
28	T69291	1	ANGLE	-
29	28H856	1	Washer	3/8" X 3/16"
30	24M7296	1	Washer	10.500 X 30 X 2.500 MM
31	19M7785	1	Screw	M10 X 25
32	R44302	1	Tie Band	-
33	-	1	Part 37	( T28583, NO LONGER USED)
34	12M7081	1	Lock Washer	M6
35	24H1305	2	Washer	13/32" X 13/16" X 0.065"
36	19H1648	1	Cap Screw	3/8" X 3/4"
37	AT37368	1	SENDER	ENGINE COOLANT TEMPERATURE (USE WITH STEWART-WARNER)
37	AT124052	1	SENDER	ENGINE COOLANT TEMPERATURE (USE WITH VDO)

ENGINE WIRING HARNESS (WITHOUT AIR CONDITIONER) [02C18]
