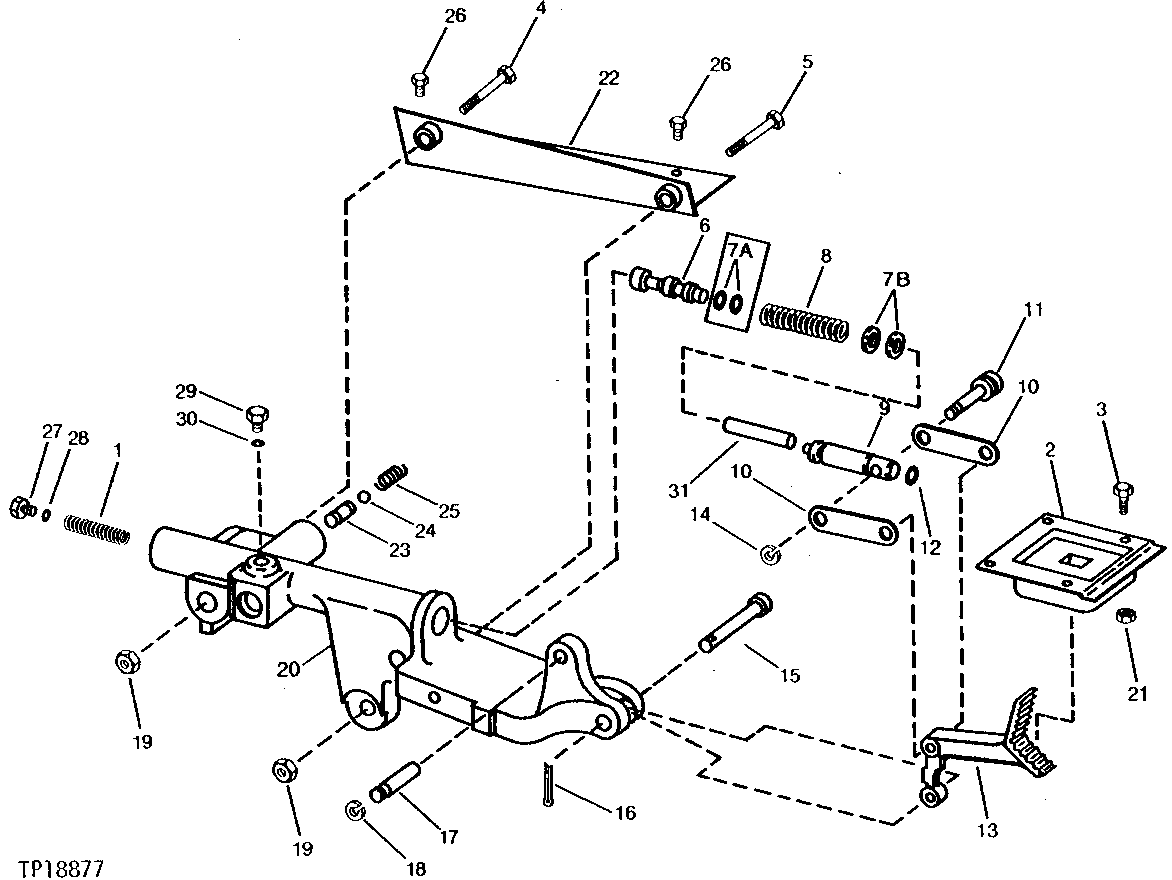

DIFFERENTIAL LOCK CONTROL VALVE (MECHANICAL FRONT WHEEL DRIVE) [01C05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R74418	1	Spring	-
2	AT75860	1	BOOT	-
3	19M7862	4	Screw	M6 X 20
4	19M7501	1	Cap Screw	M16 X 110
5	19M7344	1	Cap Screw	M16 X 65
6	R82134	1	VALVE	(SUB FOR R79134) (WHEN SUBBED FOR R79134, ALSO ORDER R82133) (USE WITH R79133)
6	R85362	1	VALVE	(USE WITH R86162)
8	B2597R	1	SPRING	-
9	R86162	1	PLUNGER	(SUB FOR R68648) (ALSO ORDER R63249)
10	R79135	2	STRAP	-
11	R26385	2	PIN FASTENER	-
12	F3353R	1	O-Ring	-
13	R79136	1	PEDAL	-
14	R26386	2	SNAP RING	-
15	R46866	1	PIN FASTENER	-
16	11M7059	1	Cotter Pin	3.200 X 20 MM
17	R26650	1	Dowel Pin	-
18	F3396R	1	Snap Ring	-
19	14M7276	2	Nut	M16
20	R86770	1	HOUSING	(SUB FOR R79133)
21	14M7303	4	Flange Nut	M6
22	AT118788	1	SUPPORT	(SUB FOR AT75072)
23	R33058	1	NEEDLE ROLLER	-
24	400R	1	Ball	-
25	R26373	1	Spring	-
26	19H2993	2	Cap Screw	1/2" X 1-1/2"
27	R27218	1	Fitting Plug	-
28	R26448	1	O-Ring	-
29	R31631	1	DRAIN PLUG	(SUB FOR R72834)
30	R26287	1	O-Ring	-
31	R63249	1	Needle Roller	(SUB FOR R77904) (ALSO ORDER R86162)
7A	R82133	1	SHIM	(SUB FOR R46901) 0.51 MM (.020") (USE WITH R68648)
7B	R82133	1	SHIM	0.51 MM (.020") (USE WITH R86162)
7B	B1664R	1	SHIM	0.76 MM (.030") (USE WITH R86162)

DIFFERENTIAL LOCK CONTROL VALVE (MECHANICAL FRONT WHEEL DRIVE) [01C05]
