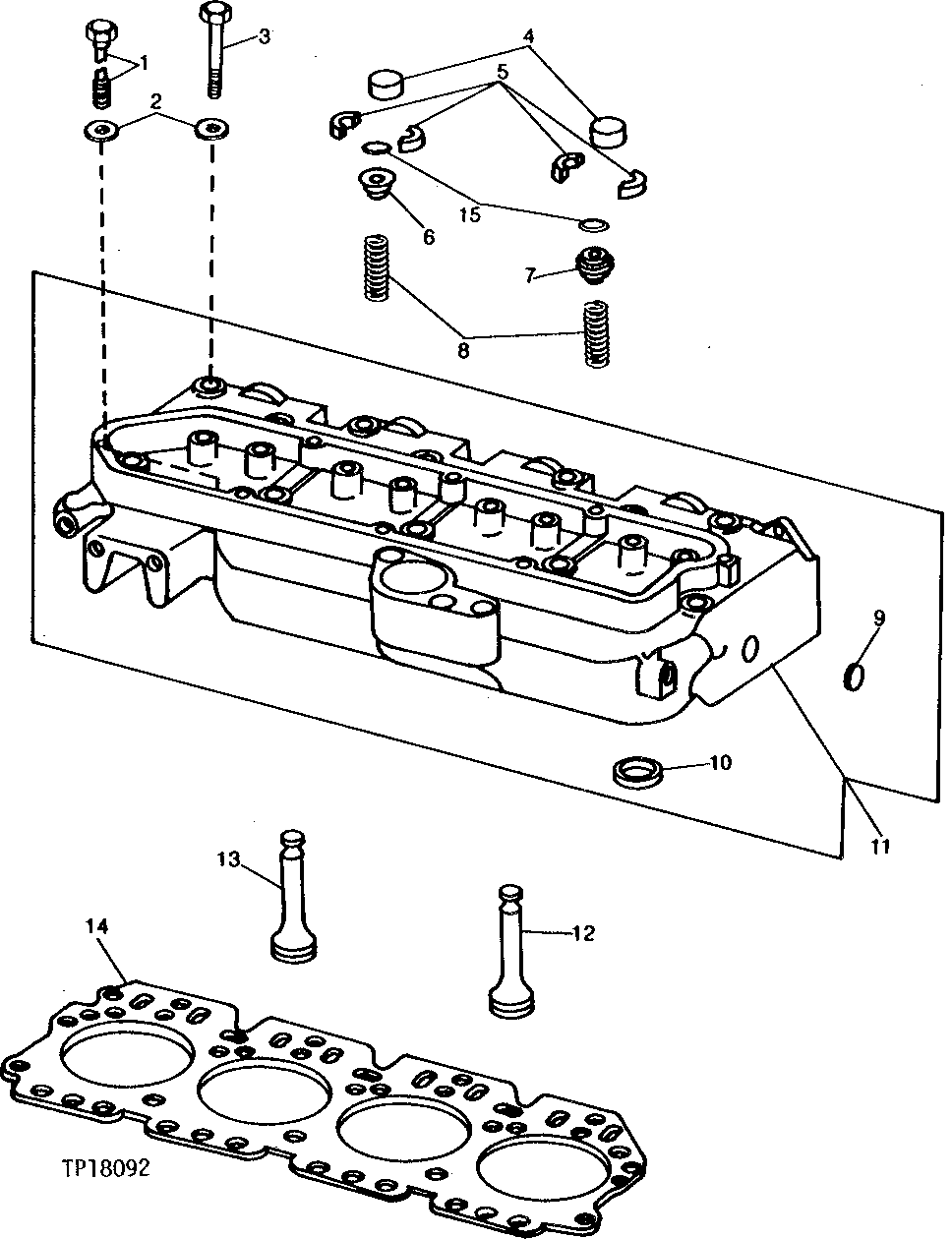

CYLINDER HEAD, HEAD GASKET AND VALVES [01F06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R85363	4	Cap Screw	(SUB FOR R78558) 1/2" X 4-1/2"
1	R85363	4	Cap Screw	(SUB FOR T20182 AND R78558) 1/2" X 4-1/2"
2	T20168	18	Washer	(DO NOT USE WITH R85363)
3	R53223	14	CAP SCREW	1/2" X 4-1/4"
3	R85363	14	Cap Screw	(SUB FOR R78558) 1/2" X 4-1/2"
4	T20129	8	Cap	-
5	T20077	16	Retainer	-
6	R41412	4	CAP	INTAKE, (SUB FOR T20176, THIS APPLICATION)
7	RE11410	4	Rotator	EXHAUST
8	R26125	8	Spring	-
9	A3910R	1	PLUG	-
9	CD16284	1	Plug	-
10	R51734	4	VALVE SEAT INSERT	EXHAUST
11	AR62452	1	CYLINDER HEAD	(MARKED R54560)
12	R79624	4	EXHAUST VALVE	STANDARD, (SUB FOR R52252)
12	R79625	4	EXHAUST VALVE	0.08 MM (.003") OVERSIZE, (SUB FOR R57333)
12	R79626	4	EXHAUST VALVE	0.38 MM (.015") OVERSIZE, (SUB FOR R57335)
12	-	4	Part 18	( R79627 NO LONGER AVAILABLE) 0.76 MM (.030") OVERSIZE, (SUB FOR R57337)
13	R79623	4	Intake Valve	STANDARD, (SUB FOR R52251)
13	R79628	4	INTAKE VALVE	0.08 MM (.003") OVERSIZE, (SUB FOR R57332)
13	R79629	4	INTAKE VALVE	0.36 MM (.015") OVERSIZE, (SUB FOR R57334)
13	-	4	Part 22	( R79630 NO LONGER AVAILABLE) 0.76 MM (.030") OVERSIZE, (SUB FOR R57336)
14	R91878	1	GASKET	(SUB FOR R59448 AND R80242)
15	R87627	4	O-RING	EXHAUST, (SUB FOR R27976, THIS APPLICATION)
15	R87627	4	O-RING	INTAKE, (SUB FOR R27976, THIS APPLICATION)

CYLINDER HEAD, HEAD GASKET AND VALVES [01F06]
