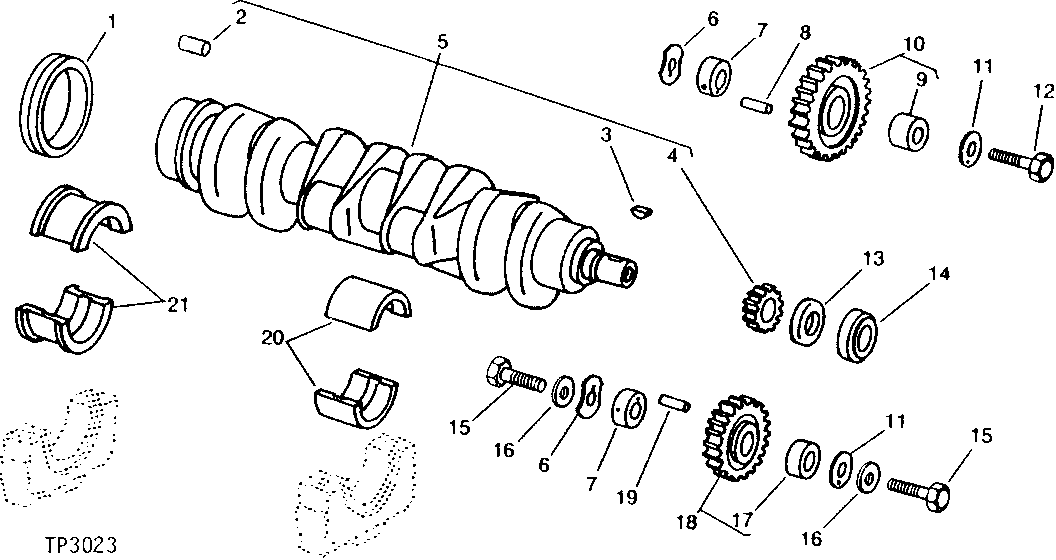

CRANKSHAFT, IDLER GEARS AND MAIN BEARINGS [01E04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE44574	1	Seal	(SUB FOR RE24959)
1	RE24959	1	SEAL	(USE IF AVAILABLE) (SUB FOR RE17831)
2	R48685	1	Dowel Pin	(SUB FOR A120R)
3	26H72	1	Shaft Key	1/8" X 5/8"
4	T20094	1	Helical Gear	(24 TEETH)
5	-	1	Part 6	RE56792,MARKED R108657 NO LONGER AVAILABLE (SUB FOR RE11026 OR RE33845,MARKED R54501, AND RE57660,MARKED R90825)SUB RE71439 CRANKSHAFT KIT,
6	T26324	2	THRUST WASHER	-
7	T26323	2	SHAFT	-
8	34H283	1	Spring Pin	3/16" X 1-1/8"
9	T20034	1	Bushing	-
10	AR91660	1	Gear	(55 TEETH) (MARKED R70182)
11	T26326	2	THRUST WASHER	-
12	T26327	1	Screw	-
13	T20046	1	Oil Slinger	-
14	AR67942	1	Seal	-
15	T26325	2	SCREW	-
16	R76126	2	Washer	(SUB FOR R42364)
17	T26321	1	Bushing	-
18	AT24252	1	GEAR	(45 TEETH) (MARKED T26322)
19	34H286	1	Spring Pin	3/16" X 1-1/2"
20	AT21140	4	Bearing	STANDARD (SET OF (2) T23214)
20	-	4	Part 22	( AT21108 NO LONGER AVAILABLE) 0.05 MM (.002") UNDERSIZE (SET OF (2) T23552)
20	AT21110	4	BEARING	0.25 MM (.010") UNDERSIZE (SET OF (2) T23554)
20	AT21112	4	BEARING	0.51 MM (.020") UNDERSIZE (SET OF (2) T23556)
20	AT21114	4	BEARING	0.76 MM (.030") UNDERSIZE (SET OF (2) T23558)
21	AT21139	1	BEARING	STANDARD (SET OF (2) T23215)
21	-	1	Part 27	( AT21130 NO LONGER AVAILABLE) 0.05 MM (.002") UNDERSIZE (SET OF (2) T23574)
21	AT21132	1	BEARING	0.25 MM (.010") UNDERSIZE (SET OF (2) T23576)
21	AT21134	1	BEARING	0.51 MM (.020") UNDERSIZE (SET OF (2) T23578)
21	AT21136	1	BEARING	0.76 MM (.030") UNDERSIZE (SET OF (2) T23580)

CRANKSHAFT, IDLER GEARS AND MAIN BEARINGS [01E04]
