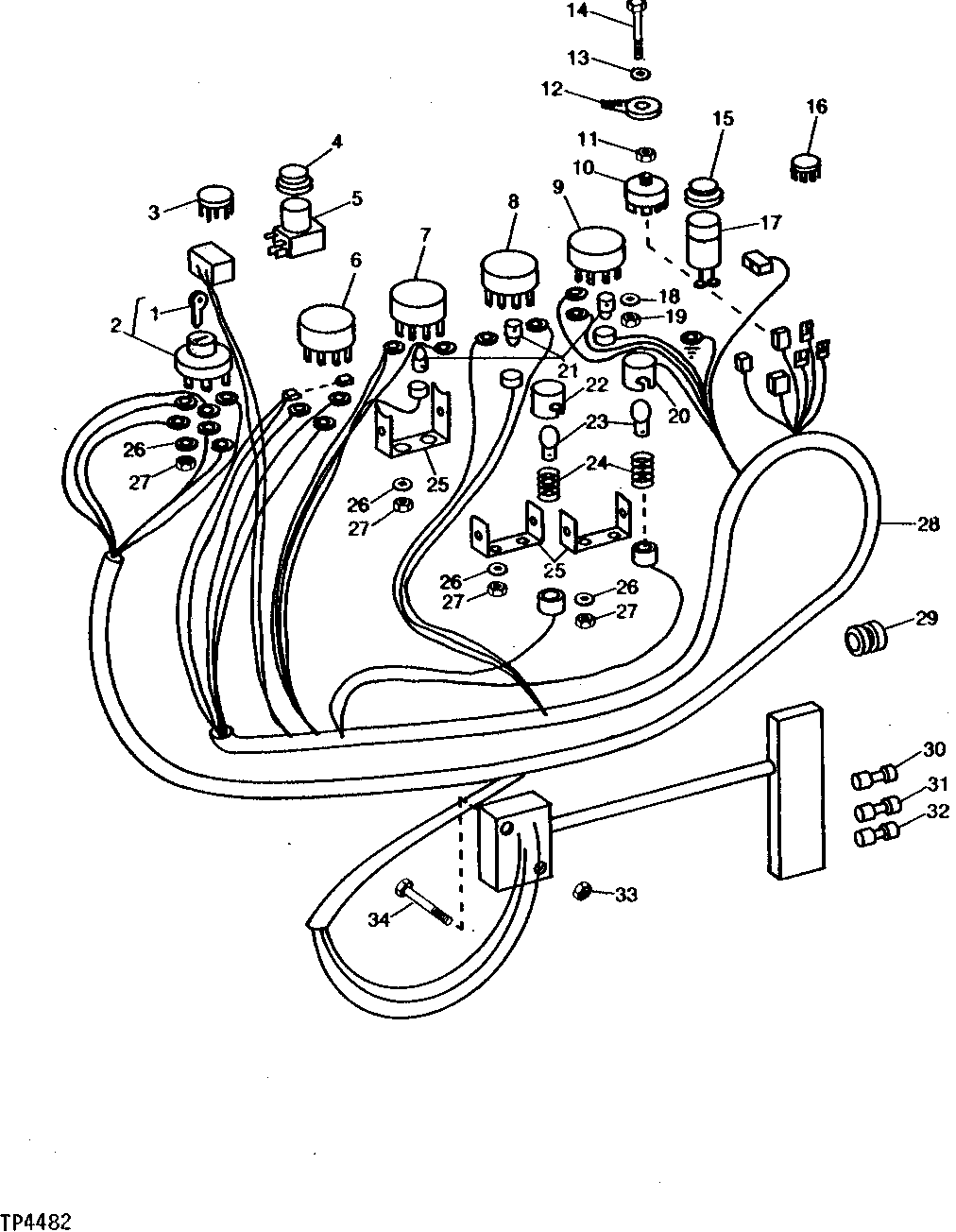

CONSOLE WIRING HARNESS (WITH ROPS) [02C09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT195302	2	Key	(SUB FOR (2) AR51481 AND AT145929) (IGNITION AND CAB)
2	AT37390	1	SWITCH	(IGNITION)
3	H99452	1	Plug	(SUB FOR M2655T)
4	T58440	1	CAP	-
5	AT65314	1	SWITCH	(STARTER)
6	AT302762	1	KIT	(SUB FOR AT65318, AT76756, AT142304 OR AT162517) (INCLUDES HOUR METER)
6	RE12926	1	Bulb	-
7	AT61468	1	GAUGE	(FUEL)
8	-	1	Part 9	ENGINE TEMPERATURE (STEWART-WARNER) (SUB AT149018) ( AT61467 USE IF AVAILABLE)
8	AT104755	1	TEMPERATURE GAUGE	(K) ENGINE TEMPERATURE (VDO)
9	AT167692	1	SOCKET	-
9	T151558	1	LAMP	-
9	AT148831	1	TEMPERATURE GAUGE	(VDO) INCLUDES SENDER
9	-	1	Part 11	TRANSMISSION OIL TEMPERATURE (STEWART-WARNER) ( AT61460 USE IF AVAILABLE) (SUB AT148831) (VDO)
10	AR41288	1	SWITCH	(SUB FOR AT21792) (LIGHT)
10	AT117624	1	SWITCH	(SUB FOR AT79052)
11	A4655R	1	Nut	-
12	AT65316	1	KNOB	-
12	AT79053	1	KNOB	-
13	12H315	1	Lock Washer	0.164"
14	21H973	1	Screw	0.164" X 3/8"
15	T55585	1	Cap	-
16	T16738	1	PLUG	-
17	R39554	1	Switch	(STARTING AID)
18	12M7084	3	Lock Washer	4.300 MM
19	14H605	3	Nut	0.164"
20	AT48674	1	LENS	(ENGINE OIL PRESSURE)
21	T40990	3	BULB	-
22	AT48673	2	LENS	(ALTERNATOR)
23	AR55694	2	BULB	-
24	R30378	2	Spring	-
25	T118593	1	BRACKET	(K)
25	T38594	3	BRACKET	-
26	12H295	10	Lock Washer	0.190"
27	14H631	10	Nut	0.190"
28	AT74089	1	WIRING HARNESS	-
29	T70341	1	Grommet	-
30	AT28077	10	Fuse	-
31	AH76113	3	FUSE	-
32	AH84167	1	FUSE	-
33	14M7272	2	Nut	M6
34	21M7267	2	Screw	M6 X 20

CONSOLE WIRING HARNESS (WITH ROPS) [02C09]
