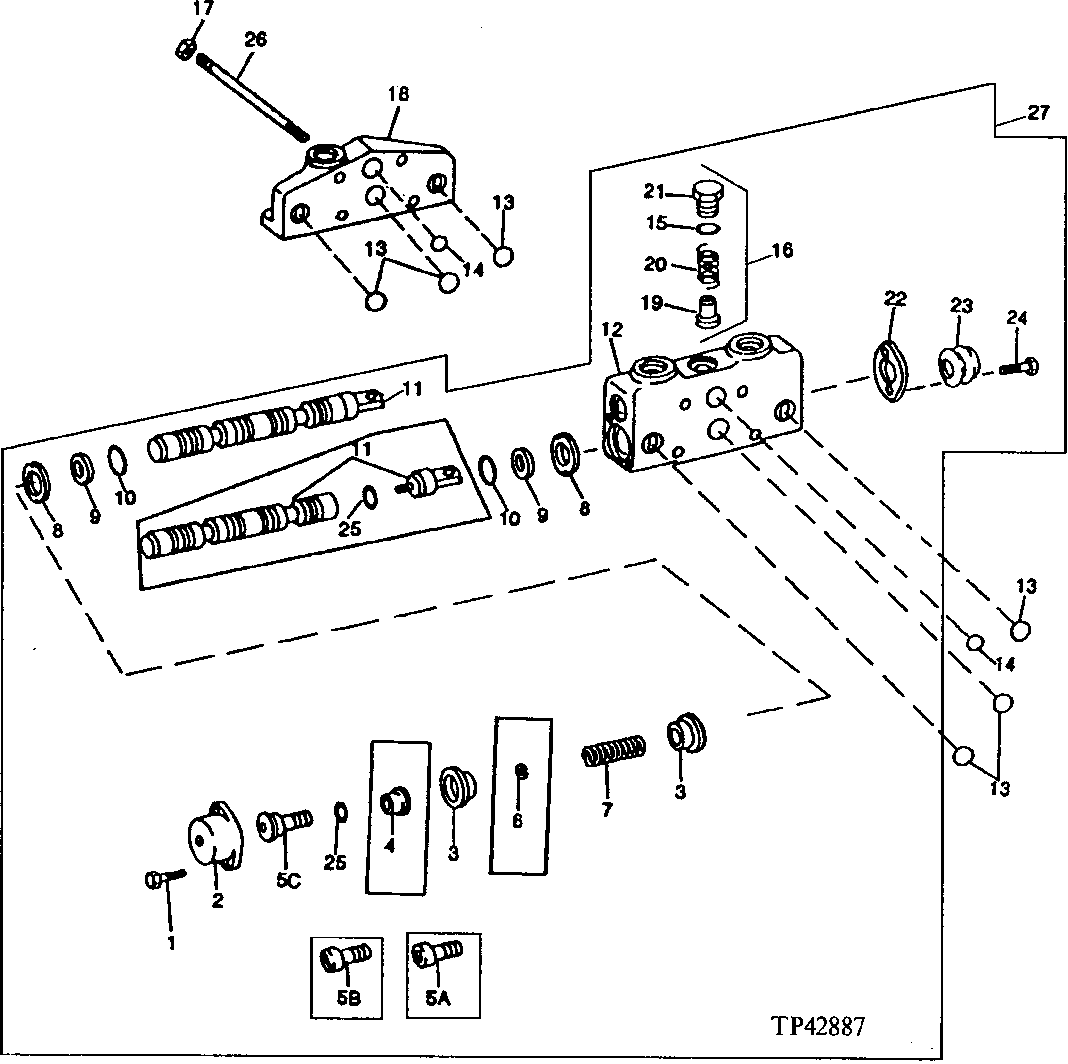

BACKHOE CONTROL VALVE CROWD SECTION WITH END PLATE (GRESEN) [03D08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T106306	2	Screw	(SUB FOR R35975)
2	AT117656	1	CAP	(SUB FOR T75995 AND T106286)
3	T75991	2	ROUND RETAINER	-
4	T75993	1	BUSHING	(SUB T106305 AND R26287)
6	U11298	1	LOCK WASHER	(SUB T106305 AND R26287)
7	T75992	1	SPRING	-
8	T75997	2	RING	-
9	T76002	2	BACK-UP RING	-
10	T122034	2	O-Ring	(SUB FOR A4730R, THIS APPLICATION) (SUB FOR T106295)
11	-	1	Part 13	(SUB AT163864)
12	-	1	Part 14	(SUB AT163864)
13	-	6	Part 15	(SUB AT159816) (SUB FOR T76003)
14	-	2	Part 16	(SUB AT159816) (SUB FOR U11326, THIS APPLICATION)
15	U17409	1	O-Ring	-
16	AT74127	1	FITTING PLUG	-
17	14H1047	1	Nut	(USE WITH T128826)
18	T146906	1	COVER	(SUB FOR T77828) (ALSO ORDER AT159816) RIGHT (IF ORDERED FOR 4-SPOOL VALVE, PROVIDE (4) T147000 TIE BOLTS) (IF ORDERED FOR 5-SPOOL VALVE, PROVIDE (4) T147001 TIE BOLTS)
19	-	1	Part 21	( T75990 - NO LONGER AVAILABLE)
20	-	1	Part 22	( U17406 - NO LONGER AVAILABLE)
21	-	1	Part 23	(SUB FOR T75989 AND AT107496) (SUB FOR T54922, THIS APPLICATION)
22	T75998	1	FLANGE	-
23	T149740	1	BOOT	(SUB FOR T75999, T106279 AND T113029)
24	T104773	2	Cap Screw	(SUB FOR T75973)
25	R26287	2	O-Ring	-
26	T147000	4	ROD	(SUB FOR T128826) (SUB FOR T76000 AND T106285) (ALSO ORDER 14H1047)
27	AT163864	1	SPOOL VALVE	CROWD SECTION, (ALSO ORDER AT159816) (USE WITH AT141190 AND AT159226) (SUB FOR AT141187, AT74136, AT78504, AT106800 AND AT151898)
5A	T75994	1	CAP SCREW	(SUB T106305 AND R26287)
5B	T78361	1	PLUG	(SUB T106305)
5C	T106305	1	BUSHING	-
