AIR CLEANER BRACKET AND HOSE (WITHOUT TURBOCHARGER) [01H25]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7866	4	Screw	M8 X 20, (USE WITH AT106524)
1	19M7784	4	Screw	M10 X 20, (USE WITH AT72622)
2	19M7788	2	Screw	M12 X 25
3	14M7299	1	Flange Nut	-
4	AT100512	1	BRACKET	(SUB FOR AT100512 AND AT72622) (ALSO ORDER (4) 19M7866 AND (4) 14M7298)
5	14M7296	4	Flange Nut	M10, (USE WITH AT72622)
5	14M7298	4	Flange Nut	M8, (USE WITH AT106524)
6	R57119	1	SEAL	(SUB FOR R28799)
7	AN33226	2	CLAMP	-
8	AT39141	1	Hose Clamp	(USE WITH T77126 AND AT56659)
8	AT175744	1	Hose Clamp	(SUB FOR AT172239) (USE WITH T155632)
8	AT37478	1	Hose Clamp	(USE WITH T118723 AND AT50924)
8	AT43291	1	Hose Clamp	(USE WITH T70508 AND AT50924)
9	T70508	1	HOSE	(SUB T118723, AT37478 AND AT50924)
9	T77126	1	HOSE	(SUB T118723, AT37478 AND AT50924)
9	-	1	Part 16	( T118723 NO LONGER AVAILABLE) (SUB T155632 AND AT175744) (USE WITH AT37478 AND AT50924)
9	T155632	1	Suction Hose	(SUB FOR T118723) (ALSO ORDER AT175744)
10	AT50924	1	Hose Clamp	(USE WITH T70508 AND AT43291)
10	AT56659	1	Hose Clamp	(USE WITH T77126 AND AT39141)
10	AT50924	1	Hose Clamp	(USE WITH T118723 AND AT37478)

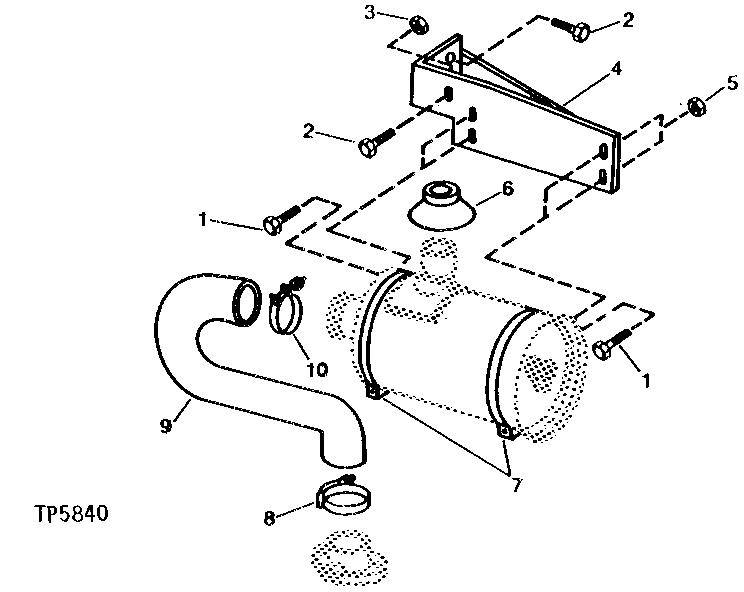

AIR CLEANER BRACKET AND HOSE (WITHOUT TURBOCHARGER) [01H25]

Нет текстового описания
