PLATFORM WIRING HARNESS, SYNCSHUTTLE PTE (TSS)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ12673	1	Wiring Harness	SUB FOR SJ10008
2	57M7839	1	Electrical Connector Assy	-
3	57M8746	1	Elec. Connector Housing	-
4	57M8279	1	Elec. Connector Housing	-
5	57M8280	1	Elec. Connector Housing	-
6	57M7953	1	Electrical Connector Assy	-
7	57M7328	2	Elec. Connector Housing	-
8	R112653	2	Grommet	-
9	57M8484	1	Elec. Connector Housing	-
10	R255312	1	Bracket	-
11	14M7152	2	Nut	M10
12	57M7182	1	Elec. Connector Housing	-
13	Z61311	1	Elec. Connector Housing	-
14	AL76702	1	Relay	-
15	57M7263	1	Elec. Connector Housing	-
16	57M7260	3	Elec. Connector Housing	-
17	57M7261	1	Elec. Connector Housing	-
18	57M7262	1	Elec. Connector Housing	-
19	57M8815	6	Elec. Connector Housing	SUB FOR T28583
20	57M8996	2	Elec. Connector Terminal	-
21	57M7256	4	Elec. Connector Housing	-
22	57M8871	5	Elec. Connector Terminal	-
23	19M7865	2	Screw	M8 X 16
24	57M8868	1	Elec. Connector Terminal	-
25	RE46736	1	Electrical Connector Assy	-
26	57M7183	1	Elec. Connector Accessory	-
27	R77480	1	Electrical Connector Assy	-
28	57M7254	2	Elec. Connector Housing	-
29	57M8281	1	Elec. Connector Housing	-
30	57M9190	2	Clip	-
31	RE186986	1	Junction Block	-
32	19M7502	2	Cap Screw	M5 X 25
33	24M7027	2	Washer	5.300 X 10 X 1 mm
34	14M7375	2	Flange Nut	M5
35	14M7297	6	Nut	M5
36	14M7194	8	Nut	M6
37	57M8875	4	Elec. Connector Terminal	-
38	57M9182	1	Nut	-
39	57M9183	1	Elec. Connector Housing	-
40	RE217864	1	Cap	-
41	M117518	1	Elec. Connector Terminal	-
42	57M7255	1	Elec. Connector Housing	-
43	57M8528	1	Electrical Connector Cap	-
44	57M8523	1	Elec. Connector Housing	(SUB FOR 57M8523)
45	57M8519	1	Elec. Connector Housing	-
46	57M8527	1	Elec. Connector Housing	-
47	57M8900	1	Elec. Connector Terminal	-
48	57M9412	1	Clamp	-
49	57M9432	1	Clamp	-
50	SU299953	1	Bracket	-
51	R266722	1	Bracket	-
52	R273101	1	Clamp	-
53	57M9429	1	Clamp	-
54	57M9425	1	Clamp	-
55	R266718	3	Clamp	-
56	03M7222	8	Bolt	M6 X 20
57	14M7303	9	Flange Nut	M6
58	03M7183	2	Bolt	M8 X 16
59	14M7298	6	Flange Nut	M8
60	19M7775	1	Screw	M6 X 16
61	RE258807	9	Tie Band	-
62	57M9437	1	Clamp	-
63	SJ10098	2	Turn Signal Wiring Harness	-
64	57M7349	2	Elec. Connector Accessory	-
65	57M8903	2	Clip	-

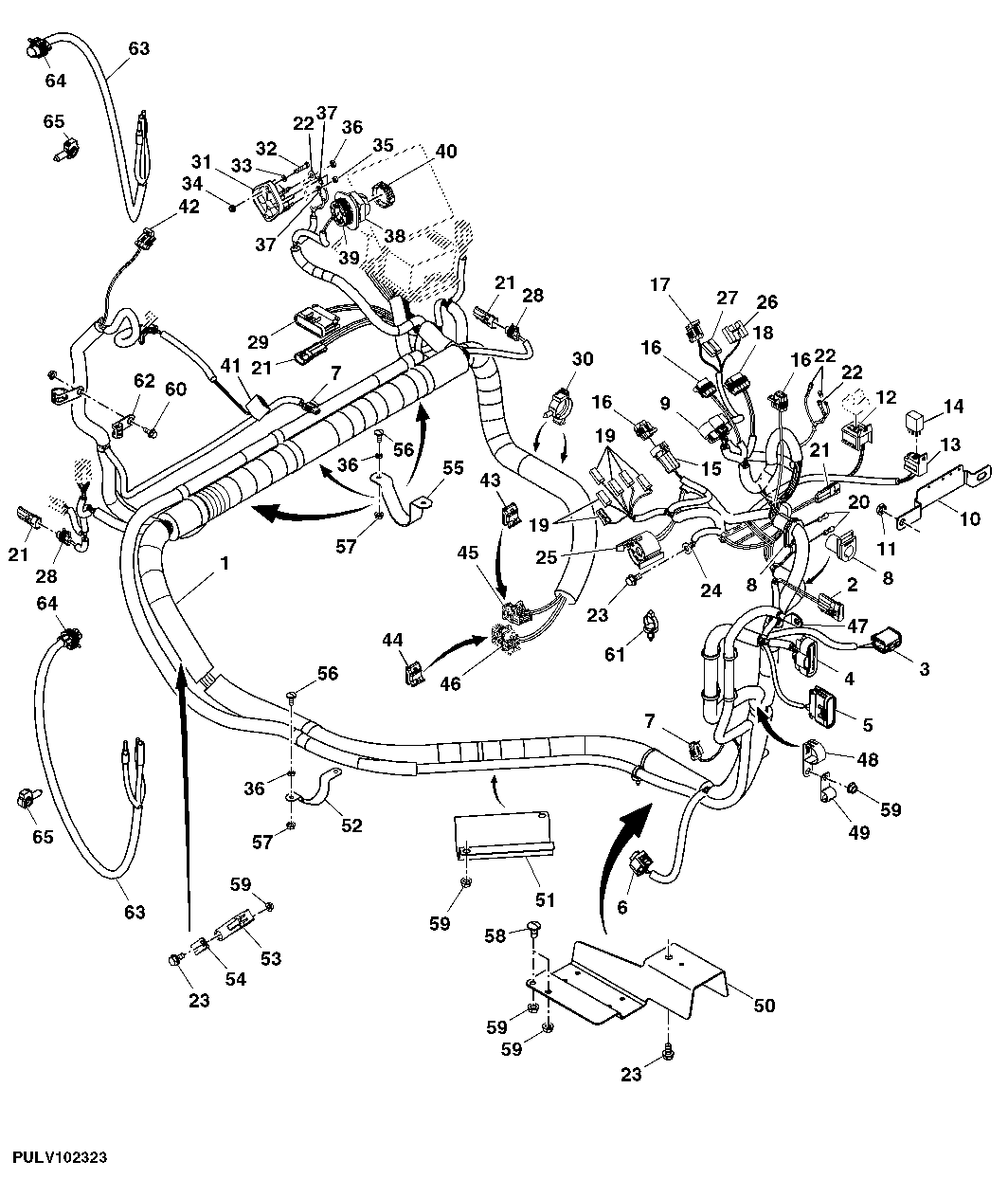

PLATFORM WIRING HARNESS, SYNCSHUTTLE PTE (TSS)
