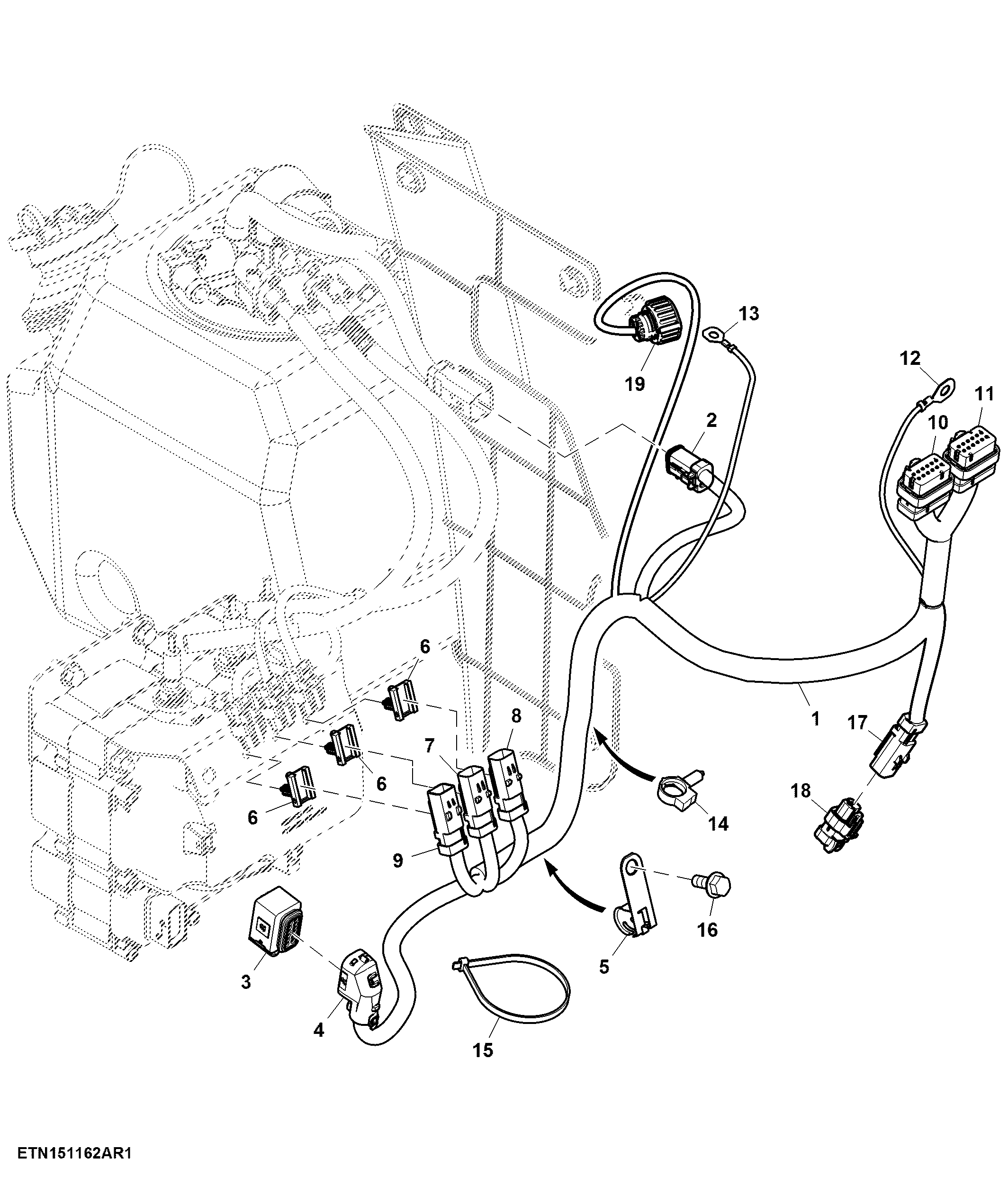

DEF Tank Wiring Harness

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ27514	1	Wiring Harness	-
2	57M8635	1	Elec. Connector Housing	DEF Quality Sensor XA5507-1
2	57M8016	1	Elec.Connect Locking Device	-
2	57M8263	2	Elec. Connector Terminal	Cavity 1, 2
2	57M8537	2	Elec. Connector Terminal	Cavity 3, 4
3	57M10958	1	Elec. Connector Housing	SCR Supply Module B5501
3	57M11248	10	Elec. Connector Terminal	Cavity 2-6, 8-12
3	57M8241	10	Elec. Connector Terminal	Cavity 2-6, 8-12
3	57M7403	1	Elec. Connector Cavity Plug	Cavity 1, 7
4	57M11439	1	Elec. Connector Accessory	SCR Supply Module Cover
5	57M12144	1	Clamp	-
6	57M9940	3	Elec. Connector Accessory	-
7	57M9778	1	Elec. Connector Housing	DEF Heater Return Line E5603
7	57M10322	2	Elec. Connector Terminal	Cavity1, 2
8	57M9777	1	Elec. Connector Housing	DEF Heater Pressure Line E5601
8	57M10322	2	Elec. Connector Terminal	Cavity1, 2
9	57M9776	1	Elec. Connector Housing	DEF Heater Suction Line E5602
9	57M10322	2	Elec. Connector Terminal	Cavity1, 2
10	57M9814	1	Elec. Connector Cavity Plug	Cavity 9
10	57M9808	2	Elec. Connector Terminal	Cavity 1, 7
10	57M9802	1	Elec. Connector Housing	Engine Interface, DEF X5038B
10	57M10321	9	Elec. Connector Terminal	Cavity 2-6, 9-12
11	57M9801	1	Elec. Connector Housing	Engine Interface, SCR X5037B
11	57M10321	11	Elec. Connector Terminal	Cavity 1-6, 8-12
11	57M9814	1	Elec. Connector Cavity Plug	Cavity 7
12	57M8872	1	Elec. Connector Terminal	Fuel Tank Ground XGND15
13	57M8871	1	Elec. Connector Terminal	Fuel Tank Ground XGND16
13	57M8869	1	Elec. Connector Terminal	Cavity 1
14	RE258807	1	Tie Band	-
15	R105388	1	Tie Band	-
16	19M7866	1	Screw	M8 X 20
17	57M9776	1	Elec. Connector Housing	CAN Terminator R5605
17	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
18	57M11134	1	Elec. Connector Housing	CAN Terminator
19	57M13137	1	Elec. Connector Housing	DEF Tank Heater XA5507-2
19	57M13185	2	Elec. Connector Terminal	Cavity 1, 4
19	57M7950	2	Elec. Connector Terminal	Cavity 1, 4
19	57M7401	2	Elec. Connector Cavity Plug	Cavity 2, 4
