Открытый узел

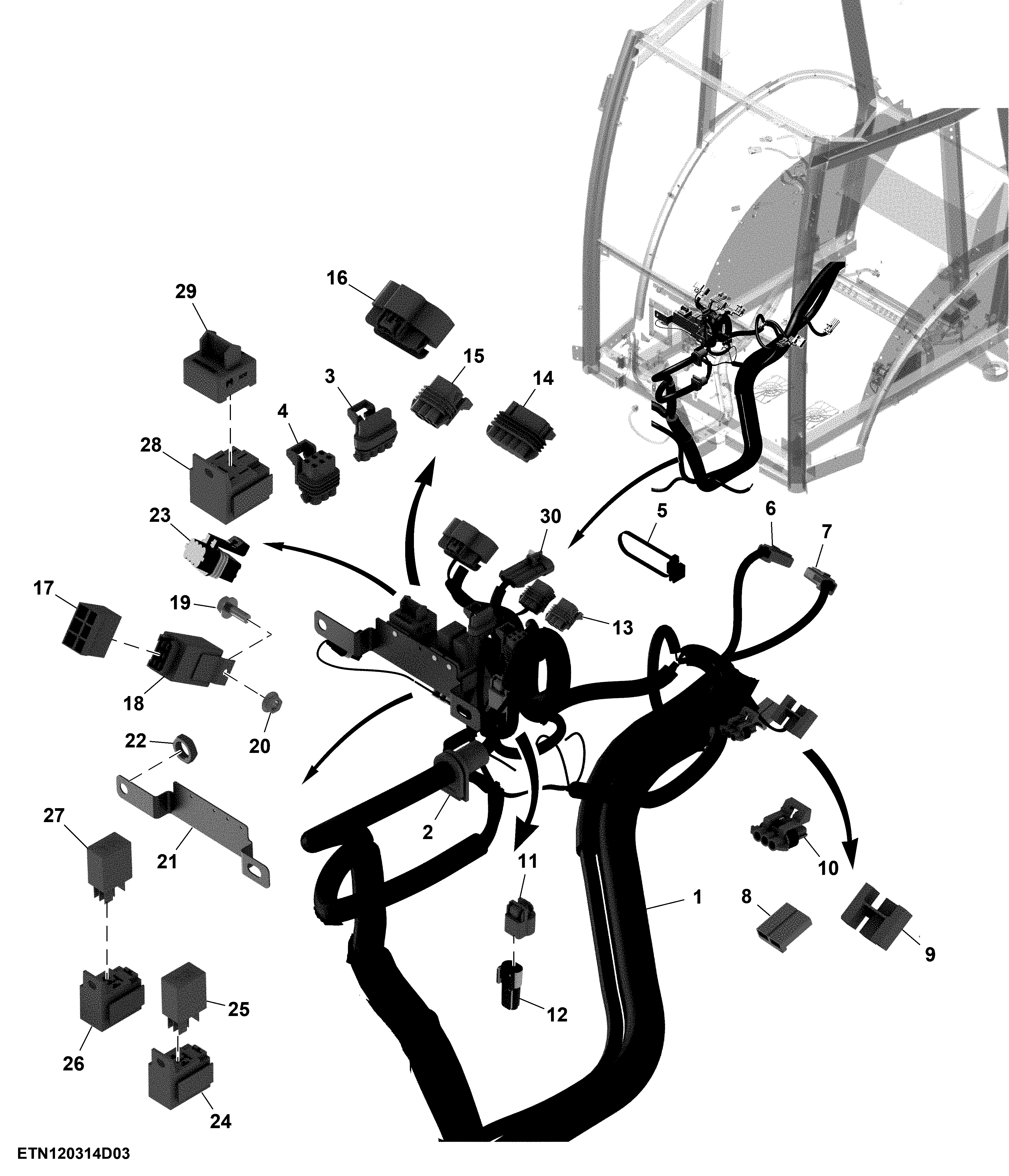

Wiring Harness, PowrReverser™, PTE, OOS (3/7)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ21159	1	Wiring Harness	Front Console
2	R112653	1	Grommet	Grommet
3	57M7840	1	Elec. Connector Housing	FNR Switch 58
3	57M7469	1	Electrical Connector Assy	-
3	57M7494	4	Elec. Connector Terminal	Cavity A - D
3	57M9215	4	Elec. Connector Seal	Cavity A - D
4	57M7260	1	Elec. Connector Housing	Clutch Assembly 59
4	57M7291	1	Electrical Connector Assy	-
4	57M7494	6	Elec. Connector Terminal	Cavity A - F
4	57M9215	6	Elec. Connector Seal	Cavity A - F
5	57M9229	1	Clip	-
6	57M8815	1	Elec. Connector Housing	Hazard Switch B 63A
6	57M9200	1	Elec. Connector Terminal	Cavity 1
7	57M8815	1	Elec. Connector Housing	Hazard Switch C 63B
7	57M9200	1	Elec. Connector Terminal	Cavity 1
8	R77480	1	Electrical Connector Assy	Horn Switch 60
8	57M9199	2	Elec. Connector Terminal	Cavity A, B
9	57M7183	1	Elec. Connector Accessory	Turn Signal Switch 61
10	57M7494	3	Elec. Connector Terminal	Cavity A - C
10	57M9215	3	Elec. Connector Seal	Cavity A - C
10	57M7290	1	Elec. Connector Accessory	-
10	57M7255	1	Elec. Connector Housing	Power Shuttle Control 62
11	57M11133	1	Elec. Connector Housing	Cab Can Terminator 64
11	57M11557	1	Elec. Connector Accessory	-
11	57M10641	2	Elec. Connector Terminal	Cavity A, B
11	57M8321	2	Elec. Connector Terminal	Cavity A, B
12	SJ12004	1	Electronic Terminator	-
13	57M9215	3	Elec. Connector Seal	Cavity E - G
13	57M7494	3	Elec. Connector Terminal	Cavity E - G
13	57M7296	1	Elec. Connector Accessory	-
13	57M7261	1	Elec. Connector Housing	Instrumentation J3 65
14	57M7262	1	Elec. Connector Housing	Instrumentation J1 66
14	57M8907	1	Elec.Connect Locking Device	-
14	57M7494	2	Elec. Connector Terminal	Cavity A, G
14	R104846	4	Elec. Connector Terminal	Cavity B - D, H
14	57M9215	3	Elec. Connector Seal	Cavity A, B, G
14	57M7258	3	Elec. Connector Seal	Cavity C, D, H
15	57M7260	1	Elec. Connector Housing	Instrumentation J2 67
15	57M9215	4	Elec. Connector Seal	Cavity A, B, D, E
15	57M7494	3	Elec. Connector Terminal	Cavity B, D, E
15	57M7291	1	Electrical Connector Assy	-
15	R104846	1	Elec. Connector Terminal	Cavity A
16	57M8484	1	Elec. Connector Housing	Instrumentation J4 69
16	57M9919	1	Elec. Connector Accessory	-
16	57M8300	3	Elec. Connector Terminal	Cavity H, J, P
16	57M8299	2	Elec. Connector Terminal	Cavity R, S
16	57M8321	3	Elec. Connector Terminal	Cavity H, J, P
16	57M9223	2	Elec. Connector Seal	Cavity R, S
17	L39317	1	Elec. Connector Terminal	Flasher Relay 54
17	57M8692	2	Elec. Connector Terminal	Cavity 4, 6
18	AL32891	1	Flasher	-
19	19M7775	1	Screw	M6 X 16
20	14M7303	1	Flange Nut	M6
21	R255312	1	Bracket	-
22	14M7152	2	Nut	M10
23	57M9215	4	Elec. Connector Seal	Cavity A - D
23	57M7494	4	Elec. Connector Terminal	Cavity A - D
23	57M7261	1	Elec. Connector Housing	Brake Switch 55
23	57M7296	1	Elec. Connector Accessory	-
24	Z61311	1	Elec. Connector Housing	Neutral Start Relay K11 51
24	Z61303	2	Elec. Connector Terminal	Cavity 1, 2
24	57M9491	1	Elec. Connector Terminal	Cavity 3
24	57M10498	1	Elec. Connector Terminal	Cavity 5
25	AL76702	1	Relay	10 A
26	57M10498	2	Elec. Connector Terminal	Cavity 3, 5
26	Z61303	2	Elec. Connector Terminal	Cavity 1, 2
26	Z61311	1	Elec. Connector Housing	Accessory Relay K07 52
27	AL76702	1	Relay	10 A
28	57M7182	1	Elec. Connector Housing	Diode Module 53
28	Z61303	2	Elec. Connector Terminal	Cavity 1, 3
28	57M9491	3	Elec. Connector Terminal	Cavity 2, 4, 5
28	57M9714	1	Elec. Connector Terminal	Cavity 7
28	57M10498	1	Elec. Connector Terminal	Cavity 8
29	RE262484	1	Diode	-
30	57M7257	1	Elec. Connector Housing	Dustcap
