Открытый узел

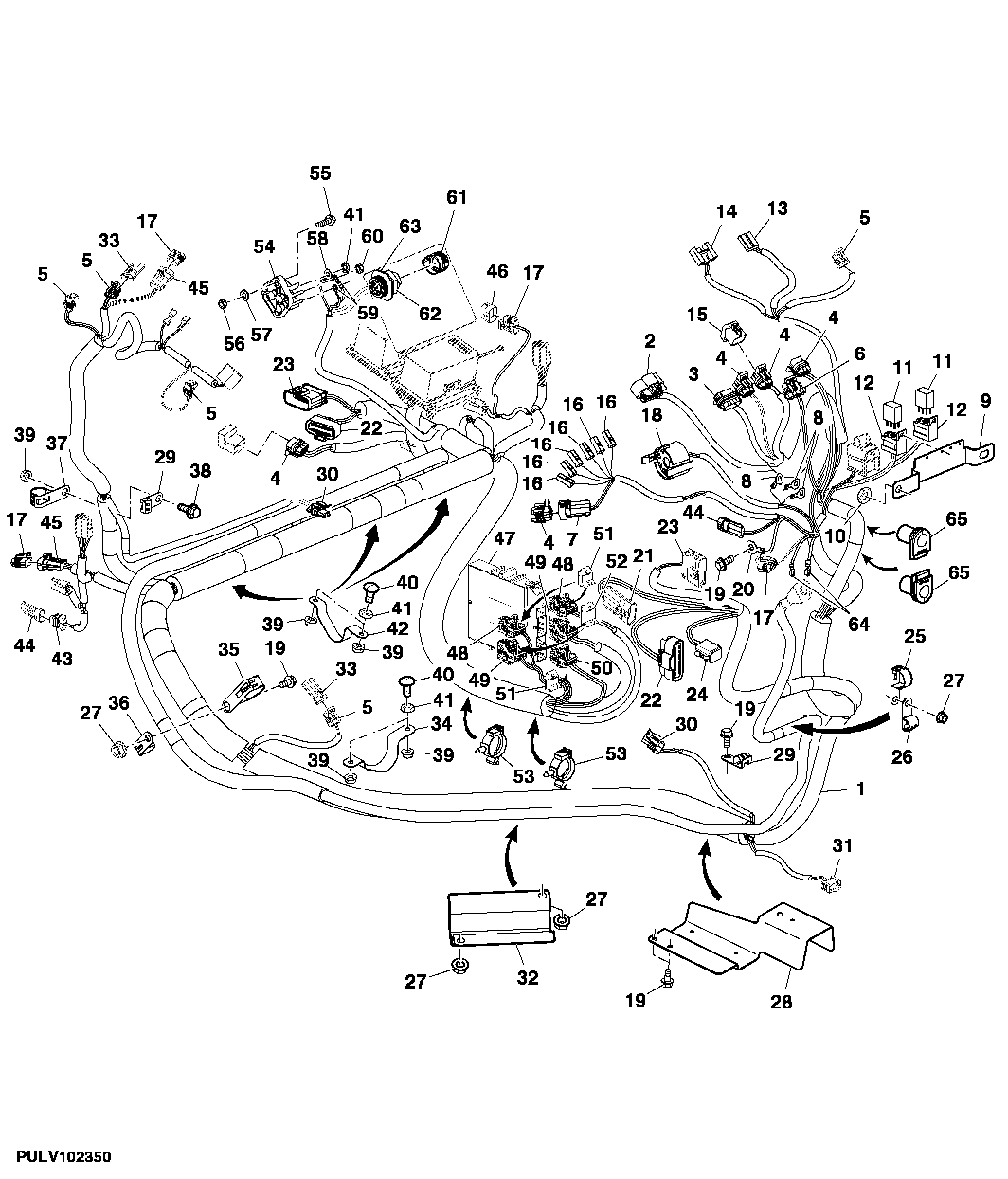

PLATFORM WIRING HARNESS, POWRREVERSER PTE, (PR)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ299144	1	Wiring Harness	-
2	57M8484	1	Elec. Connector Housing	-
3	57M7262	1	Elec. Connector Housing	-
4	57M7260	5	Elec. Connector Housing	-
5	57M7255	5	Elec. Connector Housing	-
6	57M7840	1	Elec. Connector Housing	-
7	57M7263	1	Elec. Connector Housing	-
8	57M8873	1	Elec. Connector Terminal	-
9	R255312	1	Bracket	-
10	14M7152	2	Nut	M10
11	57M8853	2	Relay	-
12	Z61311	2	Elec. Connector Housing	-
13	R77480	1	Electrical Connector Assy	-
14	57M7183	1	Elec. Connector Accessory	-
15	RE207311	1	Electronic Control Unit	-
16	57M8815	6	Elec. Connector Housing	SUB FOR T28583
17	57M7261	4	Elec. Connector Housing	-
18	RE46736	1	Electrical Connector Assy	-
19	19M7865	4	Screw	M8 X 16
20	57M8866	1	Elec. Connector Terminal	-
21	57M7839	1	Electrical Connector Assy	-
22	57M8279	2	Elec. Connector Housing	-
23	57M8280	2	Elec. Connector Housing	-
24	57M8746	1	Elec. Connector Housing	-
25	57M9412	1	Clamp	(SUB FOR 57M8832)
26	57M8856	1	Elec. Connector Accessory	-
27	14M7298	4	Flange Nut	M8
28	SU299952	1	Bracket	-
29	57M8909	2	Clip	-
30	57M7328	2	Elec. Connector Housing	-
31	57M7953	1	Electrical Connector Assy	-
32	R266722	1	Bracket	-
33	57M7257	2	Elec. Connector Housing	-
34	R273101	1	Clamp	-
35	57M9429	1	Clamp	(SUB FOR 57M8836)
36	57M9425	1	Clamp	(SUB FOR 57M8833)
37	57M8827	1	Clamp	-
38	19M7775	1	Screw	M6 X 16
39	14M7303	9	Flange Nut	M6
40	03M7221	8	Bolt	M6 X 16
41	14M7194	9	Nut	M6
42	R266718	3	Clamp	-
43	57M7254	1	Elec. Connector Housing	-
44	57M7256	2	Elec. Connector Housing	-
45	57M7264	2	Elec. Connector Housing	-
46	L116273	1	Elec. Connector Accessory	-
47	SJ290320	1	Electronic Control Unit	-
48	57M8519	2	Elec. Connector Housing	-
49	57M8527	2	Elec. Connector Housing	-
50	57M8523	1	Elec. Connector Housing	(SUB FOR 57M8523)
51	57M8528	3	Electrical Connector Cap	-
52	57M8529	2	Electrical Connector Cap	-
53	57M9190	2	Clip	-
54	RE186986	1	Junction Block	-
55	19M7502	2	Cap Screw	M5 X 25
56	14M7375	2	Flange Nut	M5
57	24M7027	2	Washer	5.300 X 10 X 1 mm
58	57M8871	1	Elec. Connector Terminal	-
59	57M8875	2	Elec. Connector Terminal	-
60	14M7297	2	Nut	M5
61	RE217864	1	Cap	-
62	57M9183	1	Elec. Connector Housing	-
63	57M9182	1	Nut	-
64	57M8996	2	Elec. Connector Terminal	-
65	R112653	2	Grommet	-

PLATFORM WIRING HARNESS, POWRREVERSER PTE, (PR)

Нет текстового описания
