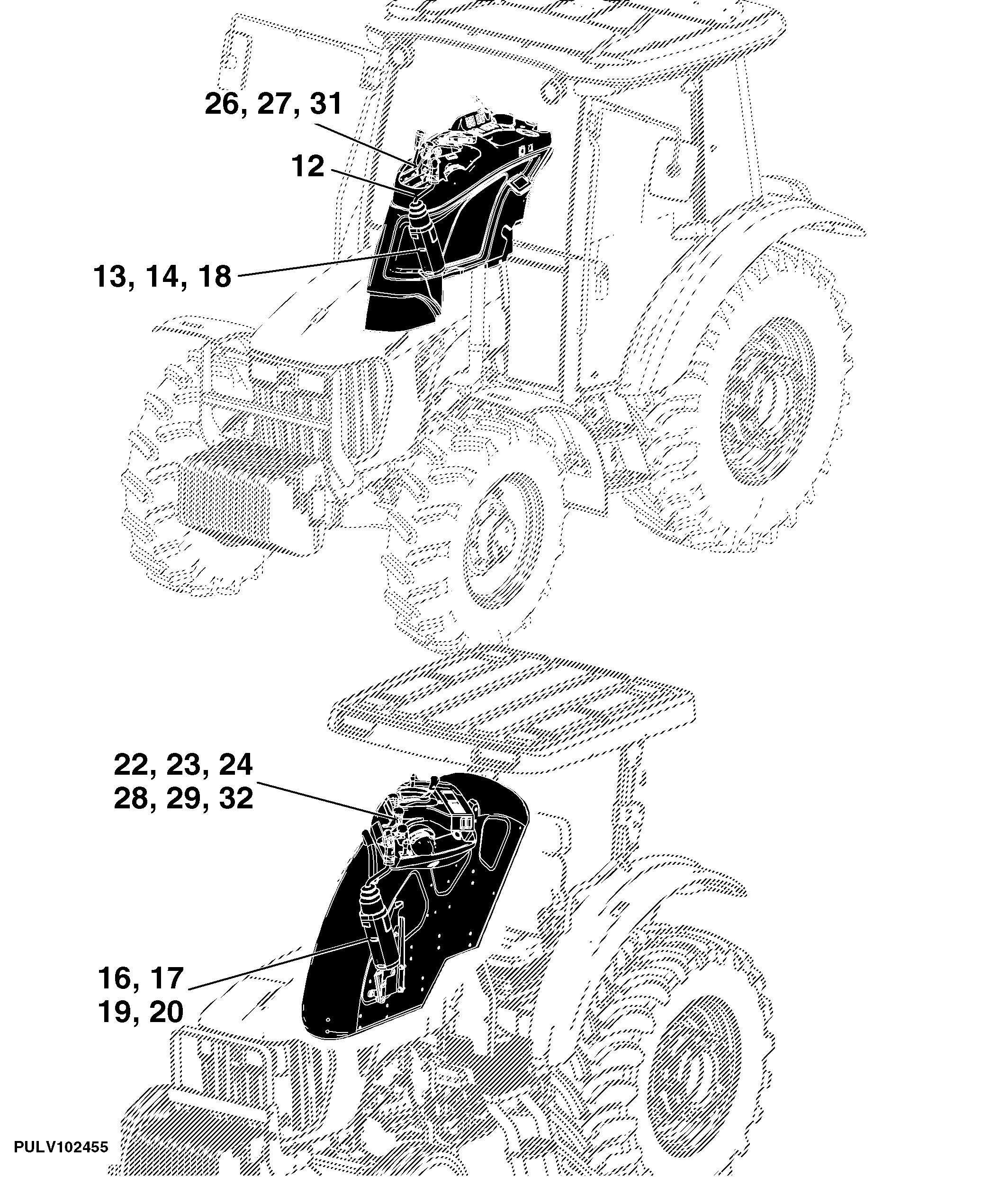

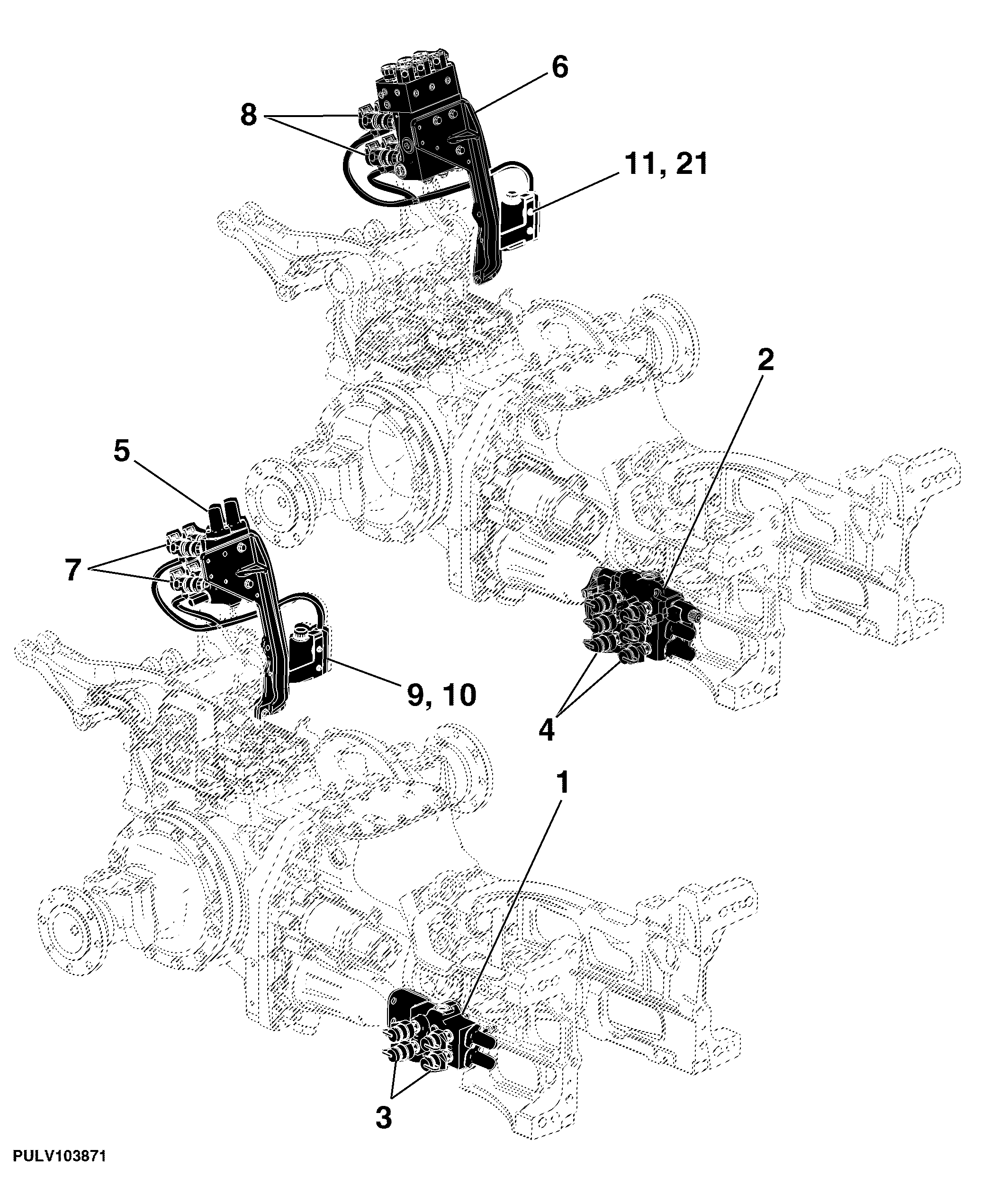

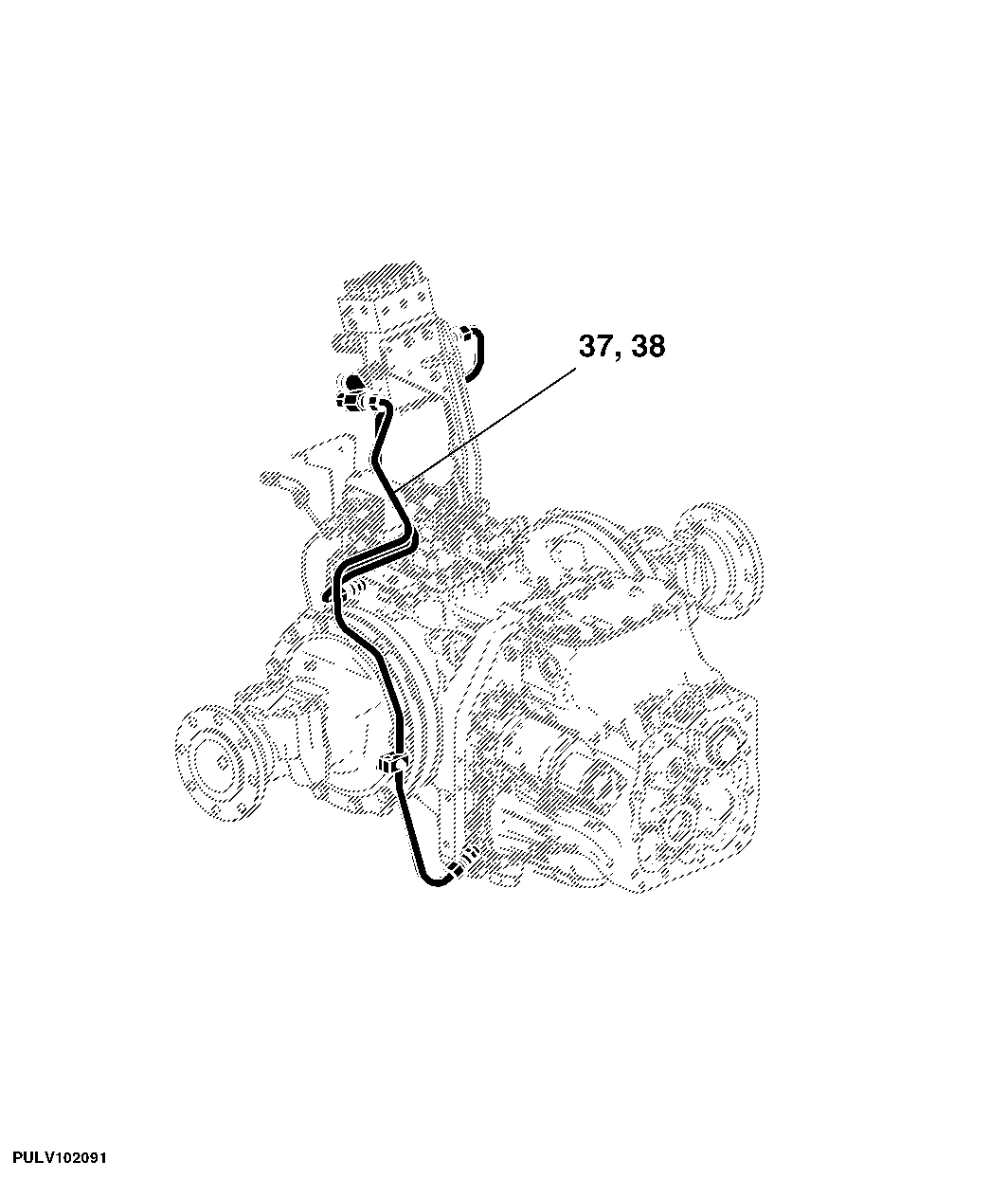

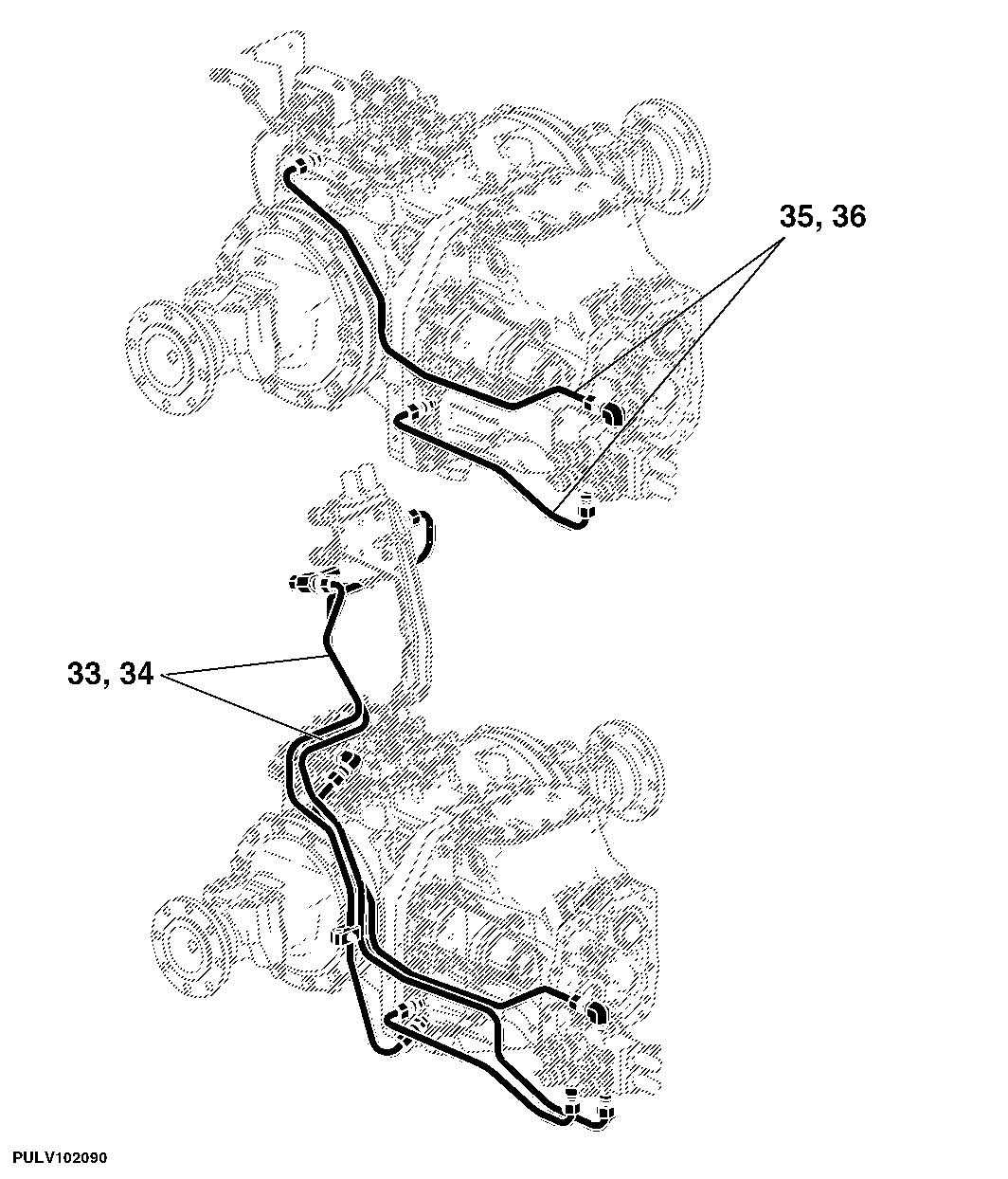

71 Selective Control Valve, Controls And Lines Tractor

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Rear SCV Control Levers, Dual, OOS	-
-	-	1	OIL LINES, REAR SCV WITHOUT MID SCV (EH) (FOR EUROPEAN TRACTORS)	-
-	-	1	OIL LINES, REAR SCV WITHOUT MID SCV (MECHANICAL HITCH)	-
-	-	1	OIL LINES, TRIPLE MID SCV WITH REAR SCV	-
-	-	1	OIL LINES, TRIPLE MID SCV WITHOUT REAR SCV (MECHANICAL HITCH)	-
-	-	1	QUICK CONNECT COUPLERS AND DUST CAP, DUAL MID SCV	-
-	-	1	QUICK CONNECT COUPLERS AND DUST CAP, TRIPLE MID SCV	-
-	-	1	REAR SCV CONTROL LEVERS (TRIPLE SCV) OPEN OPERATOR'S STATION (FOR EUROPEAN TRACTORS)	-
-	-	1	REAR SCV CONTROL LEVERS, (DUAL) CAB	-
-	-	1	REAR SCV CONTROL LEVERS, (DUAL) OPEN OPERATOR'S STATION (FOR EUROPEAN TRACTORS)	-
-	-	1	REAR SCV CONTROL LEVERS, (TRIPLE DELUXE SCV) CAB	-
-	-	1	REAR SCV CONTROL LEVERS, (TRIPLE SCV) OPEN OPERATOR'S STATION	-
-	-	1	OIL LINES, DUAL MID WITHOUT REAR SCV (MECHANICAL HITCH)	-
-	-	1	REAR SCV LOCKING DEVICE (FOR EUROPEAN TRACTORS)	-
-	-	1	Rear SCV Locking Device, OOS	-
-	-	1	Triple Deluxe Rear SCV, Attachment	-
-	-	1	Triple Deluxe Rear Selective Control Valve	-
-	-	1	Triple Deluxe Rear Selective Control Valve	-
-	-	1	Triple Deluxe Rear Selective Control Valve	-
-	-	1	TRIPLE MID SCV CONTROL LEVER (OPEN OPERATOR'S STATION)	-
-	-	1	TRIPLE MID SCV CONTROL LEVER, CAB	-
-	-	1	Triple Mid Selective Control ValVe	-
-	-	1	Triple Mid Selective Control Valve (2/4)	-
-	-	1	Triple Mid Selective Control Valve, Kit (3/4)	-
-	-	1	Dual Rear SCV (2/2)	-
-	-	1	Attachment, Dual Mid, SCV (1/4)	-
-	-	1	Attachment, Oil Collection System, Rear SCV	-
-	-	1	Attachment, Triple Mid SCV (1/4)	-
-	-	1	CONTROL LEVER, MID SELECTIVE CONTROL VALVE	-
-	-	1	Control, Dual Mid SCV, Kit (4/4)	-
-	-	1	Control, Triple Mid SCV, Kit (4/4)	-
-	-	1	DUAL MID SCV CONTROL LEVER, CAB	-
-	-	1	DUAL MID SCV CONTROL LEVER, OPEN OPERATOR'S STATION	-
-	-	1	Dual Mid SCV Valve	-
-	-	1	DUAL MID SELECTIVE CONTROL VALVE	-
-	-	1	Dual Mid, SCV, Kit (2/4)	-
-	-	1	Attachment, Dual Mid SCV	-
-	-	1	Dual Rear SCV, Cab, Attachment	-
-	-	1	Dust Cap And Quick Connect Couplers, Standard Dual Rear Scv	-
-	-	1	DUST CAP AND QUICK CONNECT COUPLERS, TRIPLE DELUXE REAR SCV	-
-	-	1	DUST CAP WITH OIL COLLECTION (DUAL REAR SCV)	-
-	-	1	DUST CAP WITH OIL COLLECTION (REAR TRIPLE SCV)	-
-	-	1	KIT, DUAL MID SCV, JOYSTICK CONTROL (CAB)	-
-	-	1	Kit, Dual Mid SCV, Joystick Control (Open Operator's Station)	-
-	-	1	Kit, Dual Rear SCV, Lever Control, Open Operator's Station	-
-	-	1	Mounting Parts, Mid SCV, Kit (3/4)	-
-	-	1	OIL LINES, DUAL MID SCV WITH REAR SCV	-

71 Selective Control Valve, Controls And Lines Tractor

Нет текстового описания
