Chassis Wiring Harness, PowerTech™ Mechanical, OOS (4/4)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ21158	1	Wiring Harness	-
2	57M10615	1	Elec. Connector Housing	FCC Controller J2 4
2	57M10331	7	Elec. Connector Terminal	Cavity L1, L2, L4, M1, M2, M3, M4
2	57M10330	35	Elec. Connector Terminal	Cavity A1, A2, A3, A4, B1, B2, B4, C1, C2, C3, D1, D2, D3, D4, E1, E2, E3, E4, F1, F2, F3, F4, G1, G2, G3, G4, H1, H2, H3, H4, J2, J4, K1, K2, K4
3	57M10613	1	Elec. Connector Housing	FCC Controller J2, Cover
4	57M10609	1	Elec. Connector Housing	FCC Controller J1 3
4	57M10330	12	Elec. Connector Terminal	Cavity A1, A3, A4, B1, B2, C1, C2, C3, D3, E1, E2, E3
4	57M10331	3	Elec. Connector Terminal	Cavity H1, H2, G1
5	57M10604	1	Elec. Connector Housing	FCC Controller J1, Cover
6	57M10606	1	Elec. Connector Housing	FCC Controller J3 5
6	57M10330	14	Elec. Connector Terminal	Cavity A1, A2, A3, A4, B1, B2, B3, C1, C2, D1, D4, E1, E4, F3
7	57M10604	1	Elec. Connector Housing	FCC Controller J3, Cover
8	57M7255	1	Elec. Connector Housing	Hand Brake Switch 29
8	57M7494	3	Elec. Connector Terminal	Cavity A-C
8	57M9215	3	Elec. Connector Seal	Cavity A-C
9	57M11153	1	Elec. Connector Housing	Cab Can Terminator 64
9	57M8321	2	Elec. Connector Terminal	Cavity A, B
9	57M10641	2	Elec. Connector Terminal	Cavity A, B
10	SJ12004	1	Electronic Terminator	Cab Can Terminator
11	57M7261	1	Elec. Connector Housing	LH, Fender External Harness 10
11	R104846	2	Elec. Connector Terminal	Cavity H, G
11	57M7494	6	Elec. Connector Terminal	Cavity A-F
11	57M7258	2	Elec. Connector Seal	Cavity G, H
11	57M9215	6	Elec. Connector Seal	Cavity A-F
12	57M7254	1	Elec. Connector Housing	License Plate Lamp 12
12	R104846	2	Elec. Connector Terminal	Cavity A, B
12	57M7258	2	Elec. Connector Seal	Cavity A, B
13	57M9223	13	Elec. Connector Seal	Cavity A, C, D, E, F, G, H, J, K, L, M, R, S
13	57M8300	2	Elec. Connector Terminal	Cavity B, P
13	57M8321	2	Elec. Connector Terminal	Cavity B, P
13	57M9786	1	Elec. Connector Housing	Transmission Harness 3 18
13	57M8299	13	Elec. Connector Terminal	Cavity A, C, D, E, F, G, H, J, K, L, M, R, S
14	57M8281	1	Elec. Connector Housing	Transmission Harness 1 17
14	57M8308	2	Elec. Connector Terminal	Cavity A, H
14	57M9539	6	Elec. Connector Terminal	Cavity B, C, L, M, N, R
14	57M8301	6	Elec. Connector Terminal	Cavity B, C, L, M, N, R
14	57M8307	2	Elec. Connector Terminal	Cavity J, S
14	57M8324	2	Elec. Connector Terminal	Cavity A, H
14	57M9223	6	Elec. Connector Seal	Cavity B, C, L, M, N, R
14	57M8321	6	Elec. Connector Terminal	Cavity D, E, F, G, K, P
14	57M8323	2	Elec. Connector Terminal	Cavity J, S
15	57M8484	1	Elec. Connector Housing	Transmission Harness 2 18
16	RE186986	1	Junction Block	-
17	RE269840	1	Fuse Box	Load Center 1 15
17	57M8515	4	Elec. Connector Seal	Cavity C3, D3, E6, F6
17	57M7399	42	Elec. Connector Seal	Cavity A1, A10, A2, A3, A4, A5, A6, A7, A8, A9, B1, B2, B3, B4, B5, B6, C1, C10, C4, C5, C6, C7, C8, C9, D1, D10, D4, D5, D6, D9, E1, E2, E3, E4, E5, F1, F10, F2, F3, F4, F5, F9
17	57M8584	4	Elec. Connector Terminal	Cavity C3, D3, E6, F6
17	57M8585	42	Elec. Connector Terminal	Cavity A1, A10, A2, A3, A4, A5, A6, A7, A8, A9, B1, B2, B3, B4, B5, B6, C1, C10, C4, C5, C6, C7, C8, C9, D1, D10, D4, D5, D6, D9, E1, E2, E3, E4, E5, F1, F10, F2, F3, F4, F5, F9
18	RE269840	1	Fuse Box	Load Center 2 16
18	57M8585	14	Elec. Connector Terminal	Cavity A10, A5, A7, A9, B6, C10, C2, C4, C9, D2, E8, E9, F8, F9
18	57M8584	28	Elec. Connector Terminal	Cavity A2, A4, A6, B1, B2, C1, C3, C5, C7, D1, D3, D4, D5, D6, D7, E1, E10, E2, E3, F1, F10, F2, F3, F4, F5, F6, F7
18	57M7399	14	Elec. Connector Seal	Cavity A10, A5, A7, A9, B6, C10, C2, C4, C9, D2, E8, E9, F8, F9
18	57M8515	28	Elec. Connector Seal	Cavity A2, A4, A6, B1, B2, C1, C3, C5, C7, D1, D3, D4, D5, D6, D7, E1, E10, E2, E3, F1, F10, F2, F3, F4, F5, F6, F7
19	57M8903	1	Clip	-
20	57M8908	1	Clip	-
21	57M9188	1	Clip	-

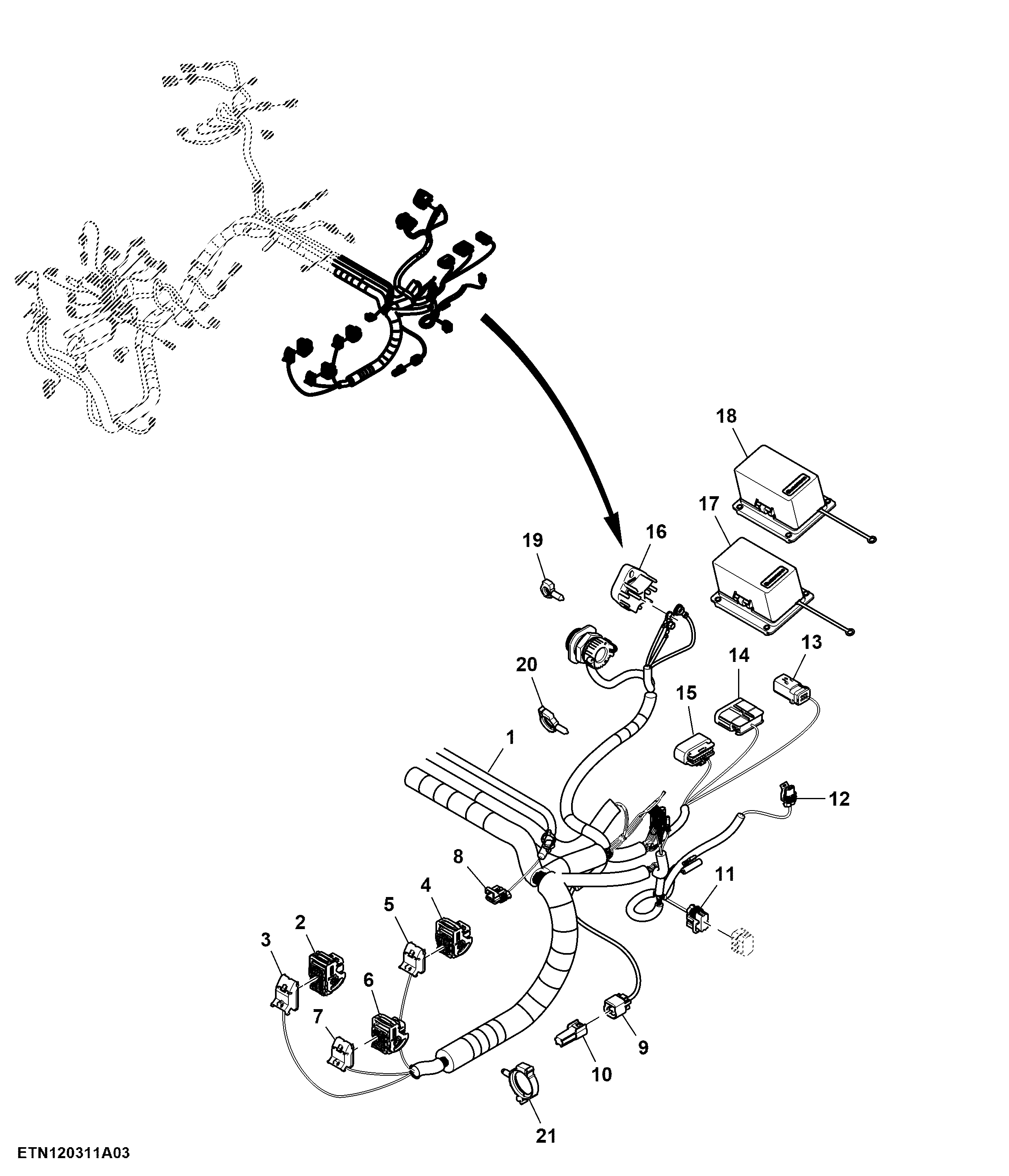

Chassis Wiring Harness, PowerTech™ Mechanical, OOS (4/4)
