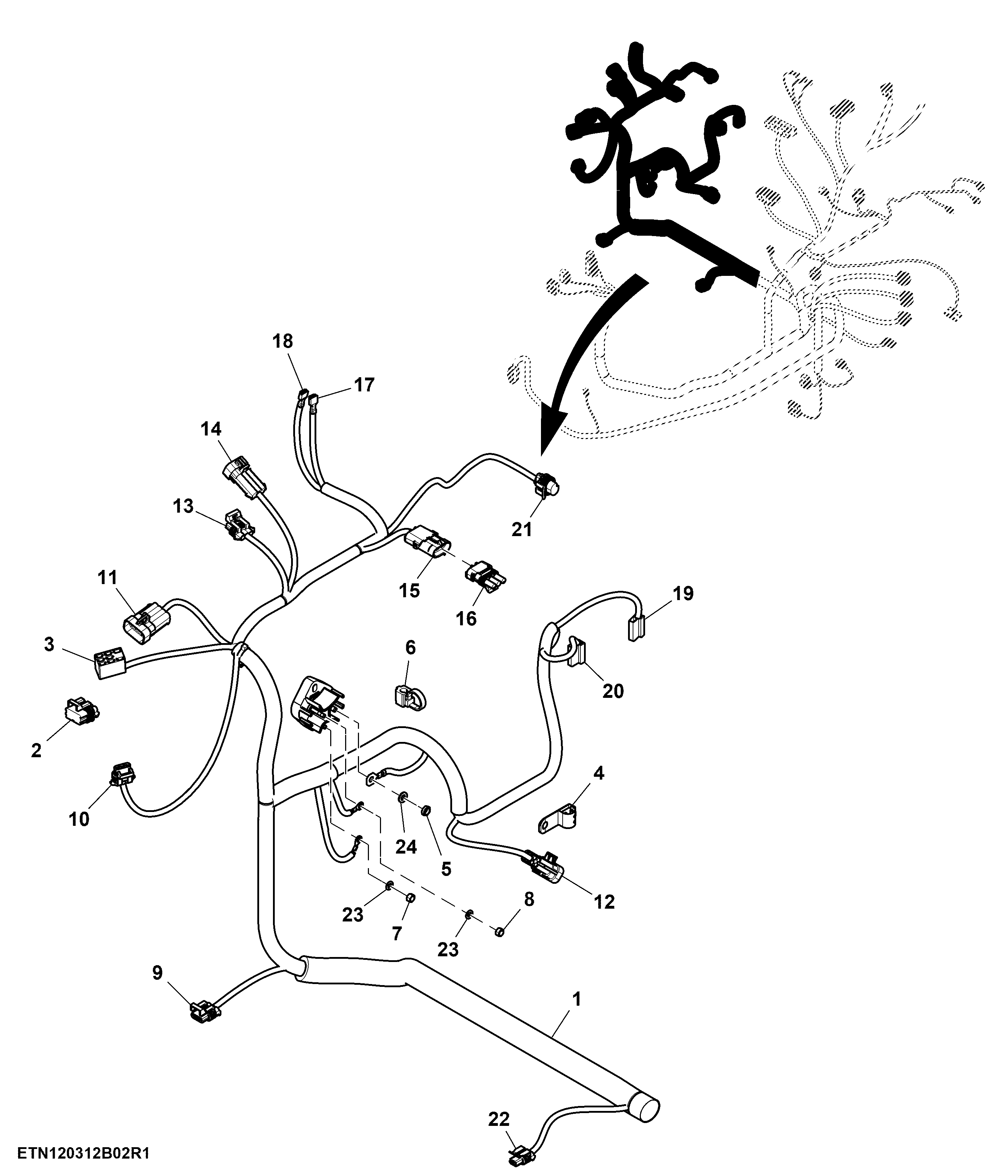

Cab Wiring Harness, PowerTech™ Mechanical (2/6)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ21160	1	Wiring Harness	-
2	57M10765	1	Elec. Connector Terminal	-
2	57M7261	1	Elec. Connector Housing	Dust Cap 33A
3	57M7264	2	Elec. Connector Housing	Draft Sensor Harness 37
3	57M7495	8	Elec. Connector Terminal	Cavity A-H
3	57M9215	8	Elec. Connector Seal	Cavity A-H
4	57M9432	2	Clamp	-
5	14M7194	1	Nut	M6, Junction Block Accessory Power 24C
5	57M9196	1	Elec. Connector Terminal	Cavity 1
6	CB01483609	12	Tie Band	-
7	14M7297	1	Nut	M5, Junction Block Battery Power JB-A
7	57M8901	1	Elec. Connector Terminal	Cavity 1
8	57M8875	1	Elec. Connector Terminal	Cavity 1
8	14M7297	1	Nut	M5, Junction Block Ground 24B
9	57M7255	1	Elec. Connector Housing	Hi/Low Shifter 25
9	57M7494	3	Elec. Connector Terminal	Cavity A-C
9	57M9215	3	Elec. Connector Seal	Cavity A, B, C
10	57M7257	1	Elec. Connector Housing	MFWD Switch 32
10	57M7495	2	Elec. Connector Terminal	Cavity A, C
10	57M9215	2	Elec. Connector Seal	Cavity A, C
11	57M7257	1	Elec. Connector Housing	Rear PTO Switch 31
11	57M7495	3	Elec. Connector Terminal	Cavity A-C
11	57M9215	3	Elec. Connector Seal	Cavity A-C
12	57M9215	8	Elec. Connector Seal	Cavity A-H
12	R104919	1	Elec. Connector Terminal	Cavity D
12	57M7264	1	Elec. Connector Housing	Hitch Quick Raise/ Lower Assembly 30
12	57M7495	7	Elec. Connector Terminal	Cavity A-C, E-H
13	57M7255	1	Elec. Connector Housing	Load Depth Sensor 29
13	57M7494	3	Elec. Connector Terminal	Cavity A-C
13	57M9215	3	Elec. Connector Seal	Cavity A-C
14	57M7263	1	Elec. Connector Housing	Rear Wiper Option 34
14	R104919	3	Elec. Connector Terminal	Cavity B, C, E
14	57M7258	3	Elec. Connector Seal	Cavity B, C, E
15	R78054	1	Electrical Connector Assy	Convenience Outlet 33
15	R78061	3	Elec. Connector Terminal	Cavity A-C
15	57M9218	3	Elec. Connector Seal	Cavity A-C
16	RE12364	1	Electrical Connector Assy	Dust Cap 37A
17	57M8949	1	Elec. Connector Terminal	Power Outlet Positive 35A
18	57M8949	1	Elec. Connector Terminal	Power Outlet Negative 35B
19	R77476	1	Electrical Connector Assy	Rear Washer Pump 27
19	57M9200	2	Elec. Connector Terminal	Cavity A, B
20	R77476	1	Electrical Connector Assy	Front Washer Pump 26
20	57M9200	2	Elec. Connector Terminal	Cavity A, B
21	57M7349	1	Elec. Connector Accessory	Right Tail Lamp 36
21	R104846	4	Elec. Connector Terminal	Cavity A-D
21	57M7258	4	Elec. Connector Seal	Cavity A-D
22	57M7328	1	Elec. Connector Housing	Differential Lock 7
22	57M7494	2	Elec. Connector Terminal	Cavity A, B
22	57M9215	2	Elec. Connector Seal	Cavity A, B
23	24M7087	2	Washer	5.500 X 10 X 1 mm
24	24M7088	1	Washer	6.600 X 12 X 1.600 mm
