Cab Wiring Harness, PowerTech™ Electronic (6/7)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ21162	1	Wiring Harness	-
2	R255312	1	Bracket	Relay Holder
3	57M7306	1	Elec.Connect Locking Device	-
3	57M7297	2	Elec. Connector Terminal	Cavity A, B
3	57M9219	2	Elec. Connector Seal	Cavity A, B
3	57M7309	1	Elec. Connector Housing	A/C Compressor
4	57M11168	2	Elec. Connector Accessory	-
5	RE258807	2	Tie Band	-
6	57M7182	1	Elec. Connector Housing	Diode Module
6	57M9714	3	Elec. Connector Terminal	Cavity 1, 3, 7
6	57M7825	1	Elec. Connector Terminal	Cavity 2
6	57M9491	1	Elec. Connector Terminal	Cavity 8
7	L39317	1	Elec. Connector Terminal	Flasher Relay
7	57M11328	4	Elec. Connector Terminal	Cavity 1, 2, 3, 5
8	57M8299	2	Elec. Connector Terminal	Cavity S, R
8	57M9223	2	Elec. Connector Seal	Cavity S, R
8	57M8321	3	Elec. Connector Terminal	Cavity H, J, P
8	57M8300	3	Elec. Connector Terminal	Cavity H, J, P
8	57M9919	1	Elec. Connector Accessory	-
8	57M8484	1	Elec. Connector Housing	Instrument Cluster J4
9	AL76702	1	Relay	20 A, K07_1
10	Z61311	1	Elec. Connector Housing	Accessory Relay K07
10	Z61303	2	Elec. Connector Terminal	Cavity 85, 86
10	57M10498	2	Elec. Connector Terminal	Cavity 30, 87
11	Z61311	1	Elec. Connector Housing	Neutral Relay K11A
11	Z61303	2	Elec. Connector Terminal	Cavity 85, 86
11	57M7825	1	Elec. Connector Terminal	Cavity 30
11	57M9491	1	Elec. Connector Terminal	Cavity 87
12	RE46735	1	Electrical Connector Assy	Front Wiper Switch
12	57M7511	3	Elec. Connector Terminal	Cavity 4, L, P
12	57M7429	2	Elec. Connector Terminal	Cavity 1, B
13	57M7170	1	Elec. Connector Housing	PTO Lamp
13	57M11328	1	Elec. Connector Terminal	Cavity 1
14	57M7840	1	Elec. Connector Housing	FNR Switch
14	57M7469	1	Electrical Connector Assy	-
14	57M7494	2	Elec. Connector Terminal	Cavity A, D
14	R104846	2	Elec. Connector Terminal	Cavity B, C
14	57M9215	4	Elec. Connector Seal	Cavity A, B, C, D
15	AL76702	1	Relay	20 A, K11A_1
16	57M7170	1	Elec. Connector Housing	PTO Lamp
17	57M8910	1	Clip	-
18	57M7839	1	Electrical Connector Assy	Hood Harness
18	57M7469	1	Electrical Connector Assy	-
18	R104919	4	Elec. Connector Terminal	Cavity A, B, C, D
18	57M7258	3	Elec. Connector Seal	Cavity A, B, C
18	57M9215	1	Elec. Connector Seal	Cavity D
19	R77502	1	Tube	Light Switch HD2
20	R77502	1	Tube	Light Switch HD1
21	R77502	1	Tube	Light Switch TL
22	R77502	1	Tube	Light Switch FL
23	RE262484	1	Diode	9 Pin Block
24	SJ12004	1	Electronic Terminator	-
25	R77502	1	Tube	Light Switch B
26	57M11133	1	Elec. Connector Housing	CAN Terminator
26	57M11557	1	Elec. Connector Accessory	-
26	57M10641	2	Elec. Connector Terminal	Cavity A, B
26	57M8321	2	Elec. Connector Terminal	Cavity A, B
27	57M7261	1	Elec. Connector Housing	Brake Switch
27	57M7296	1	Elec. Connector Accessory	-
27	57M7494	1	Elec. Connector Terminal	Cavity A
27	R104846	3	Elec. Connector Terminal	Cavity B, C, D
27	57M9215	3	Elec. Connector Seal	Cavity A, C, D
27	57M7258	1	Elec. Connector Seal	Cavity B

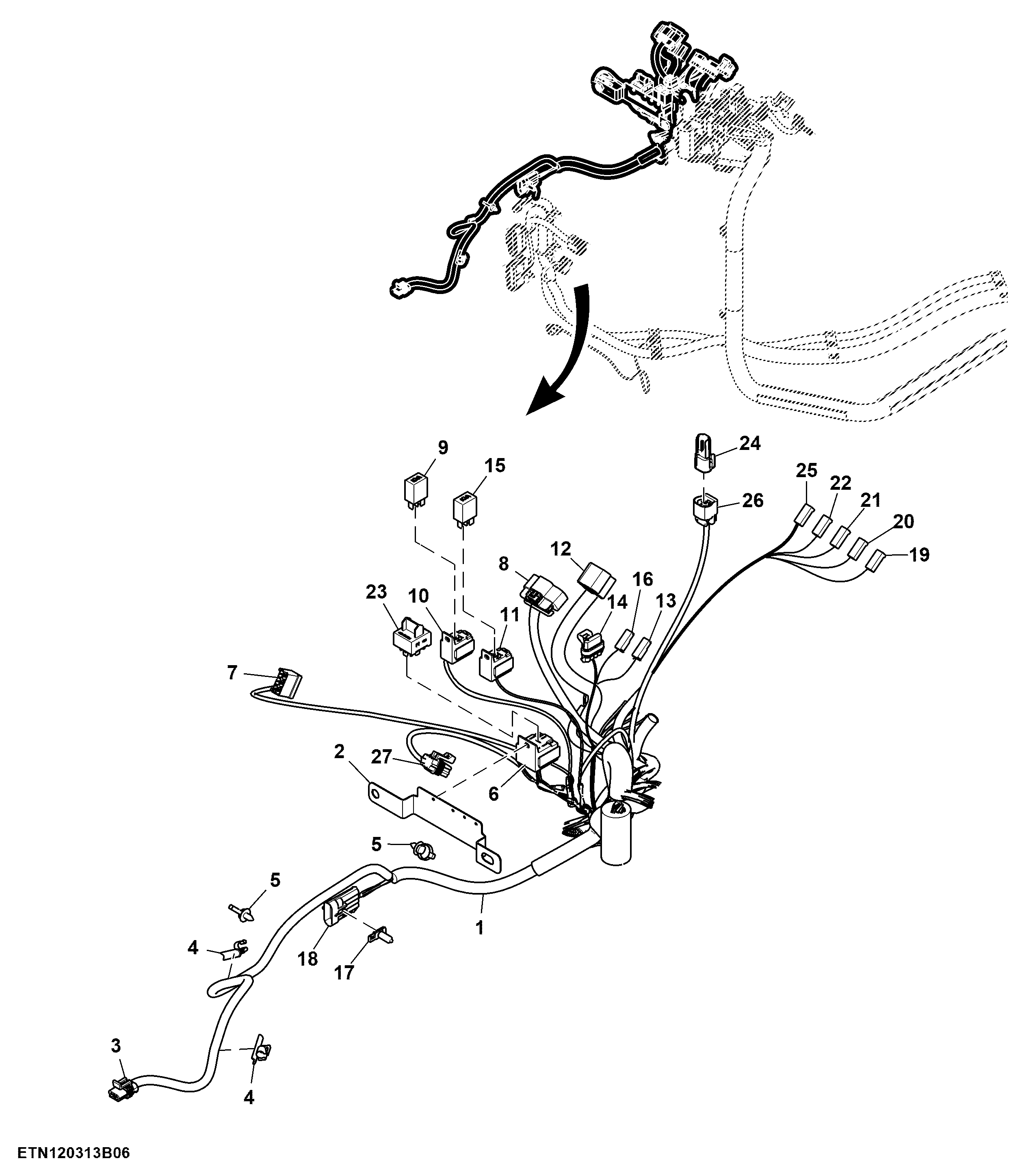

Cab Wiring Harness, PowerTech™ Electronic (6/7)

Нет текстового описания
