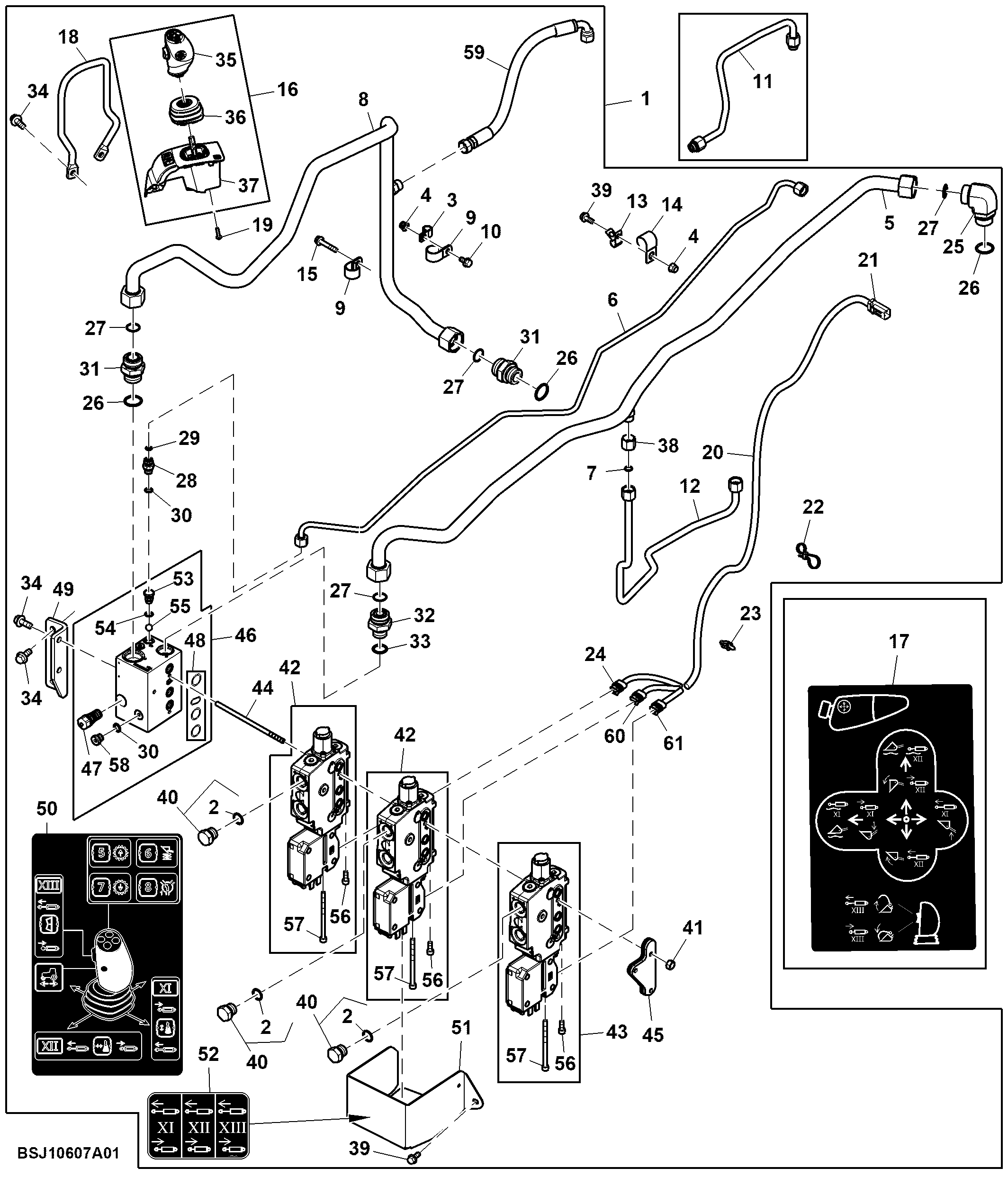

Triple SCV, CommandARM™, Attachment

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BSJ10607	1	Selective Control Valve	ORDER BSJ10651
1	BSJ10384	1	Selective Control Valve	ORDER BSJ10607
1	BSJ10651	1	Selective Control Valve	-
2	51M7045	6	O-Ring	19.300 X 2.200 mm
3	H75541	1	Clamp	-
4	14M7396	2	Lock Nut	M8
5	SJ36879	1	Oil Line	Supply SUB FOR SJ29823
6	SJ29824	1	Oil Line	Loadsense
7	T77857	1	O-Ring	-
8	SJ35299	1	Oil Line	Return SUB FOR SJ32691
9	T27550	2	Clip	-
10	19M7865	1	Screw	M8 X 16
11	SJ30187	1	Oil Line	Valve ORDER SJ38293
12	SJ30825	1	Oil Line	SFA Control Valve Supply
13	T13814	1	Clamp	-
14	R72659	1	Clamp	-
15	19M8318	1	Screw	M8 X 45
16	SJ35801	1	Control	E-Joystick SUB FOR SJ25572
17	SU48731	1	Label	Electro Hydraulic Mid SCV Controls ORDER SU56875
18	SU49442	1	Guard	-
19	R542221	1	Screw	-
20	SJ26764	1	Chassis Wiring Harness	-
21	57M9821	1	Elec. Connector Housing	X320B
21	57M9813	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
22	57M10421	2	Elec. Connector Accessory	-
23	RE258807	1	Tie Band	-
24	57M9223	2	Elec. Connector Seal	Cavity C, D
24	57M8566	2	Elec. Connector Seal	Cavity A, B
24	57M8602	2	Elec. Connector Terminal	Cavity C, D
24	57M8560	2	Elec. Connector Terminal	Cavity A, B
24	57M10466	1	Elec. Connector Housing	Mid Stack 1 A714
25	38H5020	1	Elbow Fitting	-
26	51M7048	3	O-Ring	29.600 X 2.900 mm
27	T76938	4	O-Ring	-
28	38H5002	1	Adapter Fitting	-
29	T77613	1	O-Ring	-
30	51M7041	2	O-Ring	11.300 X 2.200 mm
31	38H5006	2	Adapter Fitting	-
32	38H5014	1	Adapter Fitting	-
33	51M7047	1	O-Ring	23.600 X 2.900 mm
34	19M7785	2	Screw	M10 X 25
35	SJ25570	1	Control	E-Joystick Handle
36	R543695	1	Boot	-
37	RE573556	1	Module	-
38	38H5120	1	Fitting	-
39	19M7866	3	Screw	M8 X 20
40	RE46687	6	Drain Plug	-
41	14M7273	3	Nut	M8
42	AL217896	2	Valve	Electronic Selective Control Valve
43	AL217897	1	Valve	Electronic Independent Control Valve
44	L169114	3	Rod	LGTH = 189 mm
45	L206084	1	Cover	End LH
46	SJ29638	1	Valve Stack	-
47	AL222498	1	Pressure Relief Valve	-
48	AL207509	1	Seal Kit	-
49	SU44064	1	Bracket	Mid SCV
50	SU56875	4	Label	Mid SCV Controls
51	SU44207	1	Shield	-
52	SU48203	1	Label	Mid SCV Port Identification
53	L211801	1	Fitting Plug	-
54	51M7040	1	O-Ring	9.300 X 2.200 mm
55	T71988	1	Ball	6.756 mm (17/64")
56	19M7768	6	Screw	M6 X 16
57	19M8873	3	Screw	M6 X 90
58	64M1017	1	Drain Plug	-
59	SJ38293	1	Hydraulic Hose	LGTH = 475 mm, Return
60	57M8560	2	Elec. Connector Terminal	Cavity A, B
60	57M9223	2	Elec. Connector Seal	Cavity C, D
60	57M8566	2	Elec. Connector Seal	Cavity A, B
60	57M8602	2	Elec. Connector Terminal	Cavity C, D
60	57M10466	1	Elec. Connector Housing	Mid Stack 2 A715
61	57M10466	1	Elec. Connector Housing	Mid Stack 3 A716
61	57M8560	2	Elec. Connector Terminal	Cavity A, B
61	57M8602	2	Elec. Connector Terminal	Cavity C, D
61	57M8566	2	Elec. Connector Seal	Cavity A, B
61	57M9223	2	Elec. Connector Seal	Cavity C, D
