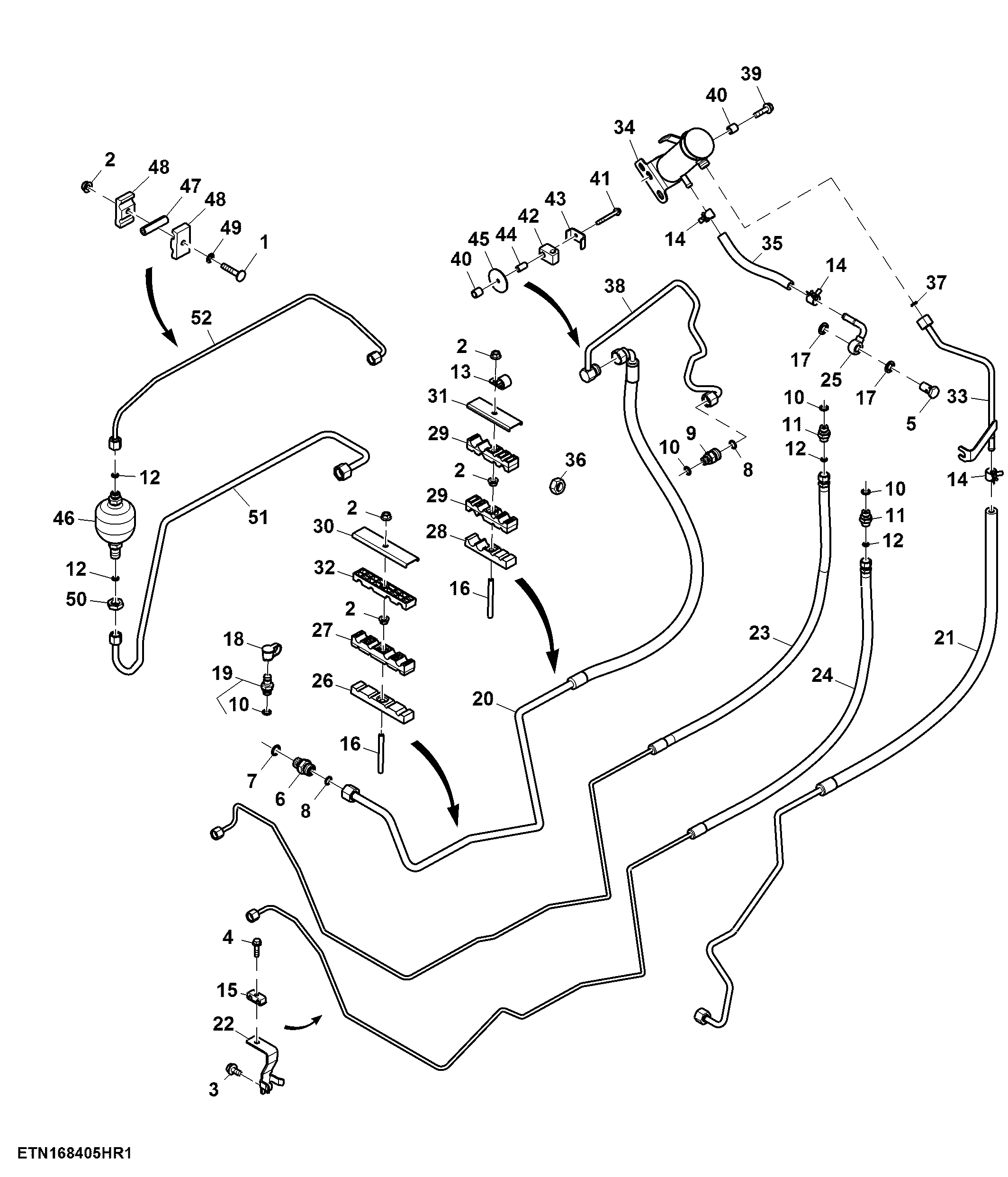

Brake Lines, PFC Pump, W/O Trailer Brake

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	03M7188	1	Bolt	M8 X 40
2	14M7298	5	Flange Nut	M8
3	19M7865	1	Screw	M8 X 16
4	19M7863	1	Screw	M6 X 25
5	38M7008	1	Hollow Screw	-
6	38H5003	1	Adapter Fitting	-
7	51M7043	1	O-Ring	15.300 X 2.200 mm
8	T77857	2	O-Ring	-
9	38H5002	1	Adapter Fitting	-
10	51M7041	3	O-Ring	11.300 X 2.200 mm
11	38H5011	2	Adapter Fitting	-
12	T77814	4	O-Ring	-
13	R46414	1	Clamp	-
14	R202160	3	Clamp	-
15	H112910	1	Clamp	-
16	SU54404	2	Stud	SUB FOR T167759
17	R64857	2	Washer	-
18	R77175	1	Cover	-
19	RE190805	1	Diagnostic Coupling	-
20	SJ31733	1	Oil Line	Break Supply
21	SJ29431	1	Oil Line	Return
22	SJ32795	1	Bracket	SUB FOR SJ29460
23	SJ32569	1	Oil Line	LH SUB FOR SJ29715
24	SJ32570	1	Oil Line	RH SUB FOR SJ29716
25	SJ30905	1	Oil Line	Brake Return
26	SU48802	1	Clamp	-
27	SU48803	1	Clamp	-
28	SU48804	1	Clamp	-
29	SU48805	2	Clamp	-
30	SU49017	1	Plate	-
31	SU49018	1	Plate	-
32	SU49019	1	Clamp	-
33	SJ31295	1	Oil Line	Brake Return
34	SJ31294	1	Hydraulic Reservoir	Brake Return Reservoir
35	-	1	Part 35	Brake Return CTL 183.2 MM, MF TY22561
36	14M7296	1	Flange Nut	M10
37	T77613	1	O-Ring	-
38	SJ31734	1	Oil Line	Brake Supply
39	19M7868	1	Screw	M8 X 30
40	28H3376	2	Spacer	0.364" X 0.540" X 9/16"
41	37M7535	1	Screw	M6 X 50
42	TCU32334	1	Clamp	-
43	TCU32329	1	Clamp	-
44	TCU34008	1	Bushing	-
45	24H1908	1	Washer	17/64" X 1-3/4" X 0.095"
46	SJ33971	1	Hydraulic Reservoir	-
46	AL212677	1	Hydraulic Reservoir	-
47	R141702	1	Isolator	CTL 52 mm, MF DT5867
48	H108291	2	Clamp	-
49	M84309	1	Nut	7.925 mm (5/16")
50	38H5090	1	Nut	9/16"
51	SJ33705	1	Oil Line	Aeration Valve to Brake Valve
52	SJ33704	1	Oil Line	Brake Valve to De-Aeration Valve

Brake Lines, PFC Pump, W/O Trailer Brake
