Открытый узел

Antenna Mounting, OOS, Attachment

Antenna Mounting, OOS, Attachment

Antenna Mounting, OOS, Attachment

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

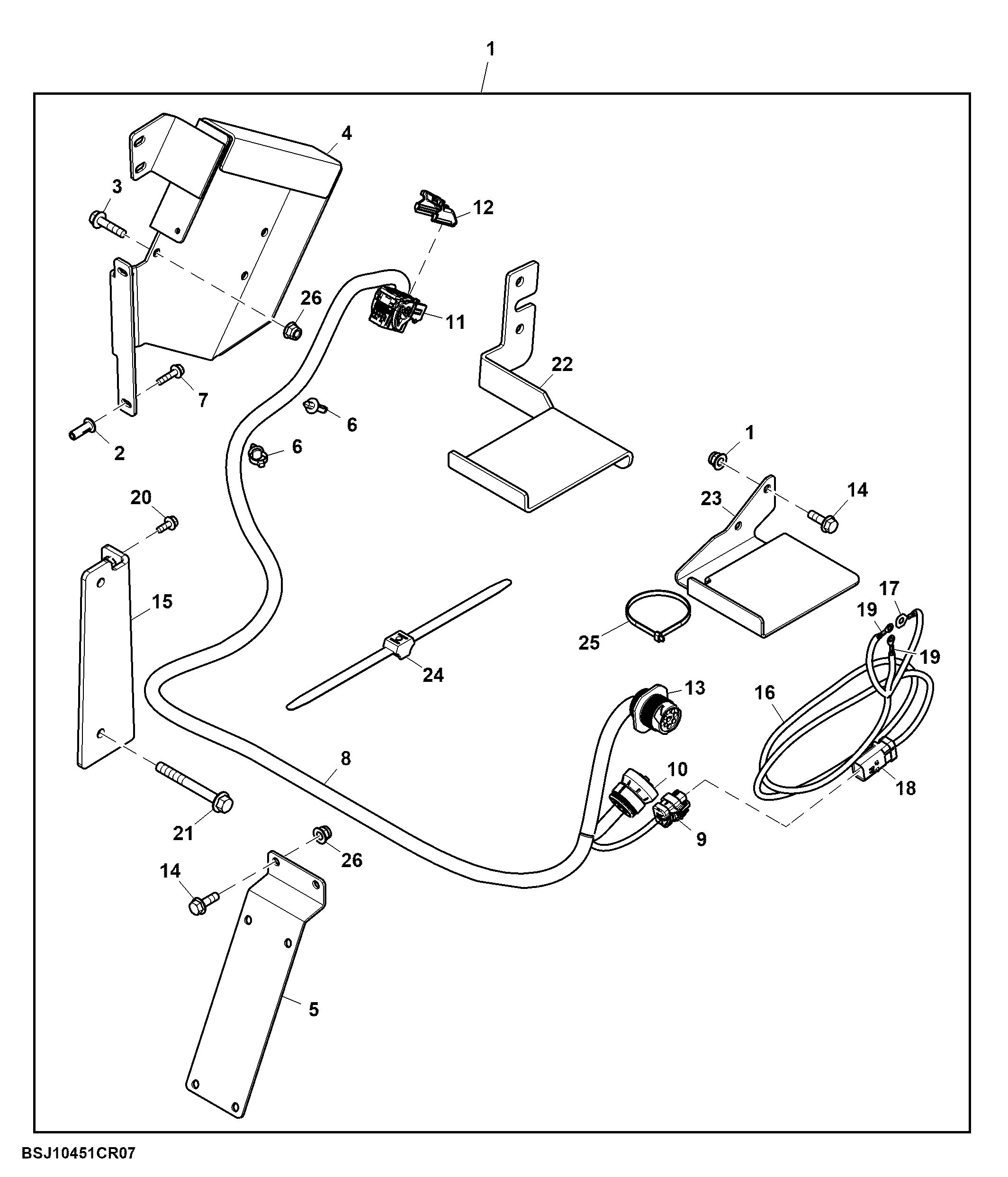

Antenna Mounting, OOS, Attachment

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BSJ10451	1	Antenna Kit	-
2	R113522	2	Nut	-
3	19M7897	4	Screw	M8 X 35
4	SJ32074	1	Bracket	Controller Mounting
5	SU49686	1	Bracket	Controller Mounting
6	RE258807	4	Tie Band	-
7	19M7863	2	Screw	M6 X 25
8	SJ32163	1	Wiring Harness	Antenna, OOS
9	57M9817	1	Elec. Connector Housing	MTG to Vehicle Interconnect X037B
9	57M10631	3	Elec. Connector Terminal	Cavity 1, 3, 4
9	57M9809	1	Elec. Connector Terminal	Cavity 2
10	57M7920	1	Electrical Connector Assy	Mate to Vehicle Service Advisor X10B
10	R78069	5	Elec. Connector Cavity Plug	Cavity E -J
10	57M8165	2	Elec. Connector Terminal	Cavity D -E
10	57M7546	2	Elec. Connector Terminal	Cavity A -B
11	57M10614	1	Elec. Connector Housing	Modular Telematics Gateway D112
11	57M10514	3	Elec. Connector Terminal	Cavity F3, H1, H2
11	57M10331	3	Elec. Connector Terminal	Cavity L1, M1, M2
11	57M10333	37	Elec. Connector Cavity Plug	Cavity A1, A2, A3, A4, B1, B2, B3, B4, C1, C2, C3, C4, D1, D2, D3, D4, E1, E2, E3, E4, F1, F2, F4, G1, G2, G3, G4, H3, H4, J1, J2, J3, J4, H1, H2, H3, H4
11	57M10334	5	Elec. Connector Cavity Plug	Cavity L2, L3, L4, M3, M4
12	57M10613	1	Elec. Connector Housing	-
13	57M9182	1	Nut	-
13	N282069	2	Elec. Connector Terminal	Cavity A -B
13	57M8164	2	Elec. Connector Terminal	Cavity C - D
13	57M9181	5	Elec. Connector Cable Seal	Cavity E - J
13	57M9183	1	Elec. Connector Housing	Service Advisor X10
14	19M7867	4	Screw	M8 X 25
15	SJ33943	1	Bracket	-
16	SJ33965	1	Wiring Harness	-
17	57M8871	1	Elec. Connector Terminal	Interconnect X02_BATT
18	57M10603	3	Elec. Connector Terminal	Cavity 1, 2, 4
18	57M9813	1	Elec. Connector Terminal	Cavity 3
18	57M9821	1	Elec. Connector Housing	Junction Block Accessory Power X01
19	57M8875	2	Elec. Connector Terminal	Junction Block Battery Power X02_ACC
20	19M7775	2	Screw	M6 X 16
21	19M7811	2	Screw	M10 X 90
22	SU55009	1	Bracket	RH
23	SU55010	1	Bracket	LH
24	R213663	4	Clamp	-
25	R105388	2	Tie Band	-
26	14M7396	8	Lock Nut	M8
