Front Console Wiring Harness, Cab, SyncShuttle™(2/6)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ18258	1	Wiring Harness	-
2	57M8070	1	Elec. Connector Housing	Cab Interface 1 1
2	57M7399	11	Elec. Connector Seal	Cavity 7, 8, 9, 10, 11, 18, 19, 20, 21, 22, 23
2	57M8515	8	Elec. Connector Seal	Cavity 2, 3, 4, 5, 6, 14, 16, 17
2	57M8732	8	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 14, 16, 17,
2	57M9158	11	Elec. Connector Terminal	Cavity 7, 8, 9, 10, 11, 18, 19, 20, 21, 22, 23
2	57M8943	1	Elec.Connect Locking Device	-
3	57M10717	1	Elec. Connector Housing	-
4	57M8156	1	Elec. Connector Housing	Cab Interface 2 02
4	57M11996	1	Elec. Connector Accessory	-
4	57M8304	4	Elec. Connector Terminal	Cavity A, H, J, S
4	57M8300	9	Elec. Connector Terminal	Cavity B, D, E, F, G, L, M, N, P,
4	R104846	1	Elec. Connector Terminal	Cavity C,
4	57M8299	2	Elec. Connector Terminal	Cavity K, R
4	57M8324	4	Elec. Connector Terminal	Cavity A, H, J, S
4	57M7258	9	Elec. Connector Seal	Cavity B, D, E, F, G, L, M, N, P,
4	57M9215	1	Elec. Connector Seal	Cavity C,
4	57M9223	1	Elec. Connector Seal	Cavity K, R
5	57M8872	1	Elec. Connector Terminal	-
6	57M7258	1	Elec. Connector Seal	Cavity B
6	57M9215	3	Elec. Connector Seal	Cavity A, C, D
6	R104846	3	Elec. Connector Terminal	Cavity B, C, D
6	57M7296	1	Elec. Connector Accessory	-
6	57M7261	1	Elec. Connector Housing	Brake Switch S17
6	57M7494	1	Elec. Connector Terminal	Cavity A,
7	57M8014	1	Elec. Connector Housing	-
8	RE46735	1	Electrical Connector Assy	S30
9	57M8484	1	Elec. Connector Housing	-
9	57M9919	1	Elec. Connector Accessory	-
9	57M8300	9	Elec. Connector Terminal	Cavity A, B, C, D, E, J, M, R, S
9	57M8299	5	Elec. Connector Terminal	Cavity G, H, K, L, N,
10	57M7262	1	Elec. Connector Housing	11
10	57M7494	1	Elec. Connector Terminal	Cavity H,
10	R104846	8	Elec. Connector Terminal	Cavity A - G, J
10	57M8907	1	Elec.Connect Locking Device	-
11	57M10299	1	Elec. Connector Housing	10
11	57M8565	6	Elec. Connector Terminal	Cavity 1, 2, 3, 5, 6, 9
11	57M8545	3	Elec. Connector Terminal	Cavity 4, 7, 8
12	57M9223	3	Elec. Connector Seal	Cavity E, M, N
12	57M8321	6	Elec. Connector Terminal	Cavity A, B, F, G, H, J,
12	57M8300	6	Elec. Connector Terminal	Cavity A, B, F, G, H, J,
12	57M10201	1	Elec. Connector Accessory	-
12	57M8299	3	Elec. Connector Terminal	Cavity E, M, N
12	57M9835	1	Elec. Connector Housing	23
13	RE153894	1	Diode	-
14	57M10426	1	Elec. Connector Accessory	14
14	57M9714	3	Elec. Connector Terminal	Cavity 1, 3, 7
14	57M9491	2	Elec. Connector Terminal	Cavity 2, 8
14	57M7825	2	Elec. Connector Terminal	Cavity 4, 6,
15	AL76702	1	Relay	AL76702_3
16	AL76702	1	Relay	AL76702_2
17	Z61311	1	Elec. Connector Housing	12A(K07)
17	57M10498	1	Elec. Connector Terminal	Cavity 5
17	Z61303	3	Elec. Connector Terminal	Cavity 1, 2, 3
18	Z61311	1	Elec. Connector Housing	12B(K27)
18	Z61303	3	Elec. Connector Terminal	Cavity 1, 2, 3
18	57M9491	1	Elec. Connector Terminal	Cavity 5
19	57M9776	1	Elec. Connector Housing	27
19	57M9812	2	Elec. Connector Terminal	Cavity 1, 2, 3
20	57M7825	4	Elec. Connector Terminal	Cavity 1 - 4
20	57M8761	1	Elec. Connector Housing	07
21	57M10105	1	Elec. Connector Accessory	-
22	57M11134	1	Elec. Connector Housing	-
23	57M10350	1	Elec. Connector Housing	16
23	57M10062	2	Elec. Connector Terminal	Cavity 1, 2
23	57M7938	2	Elec. Connector Terminal	Cavity 1, 2
24	57M10350	1	Elec. Connector Housing	20 (K18)
24	57M10062	2	Elec. Connector Terminal	Cavity 1, 2
24	57M7938	2	Elec. Connector Terminal	Cavity 1, 2
25	57M8871	1	Elec. Connector Terminal	Cavity 1
25	57M8873	1	Elec. Connector Terminal	Start Relay (K18) 17
26	57M8873	1	Elec. Connector Terminal	18
26	57M8871	1	Elec. Connector Terminal	Cavity 1
27	57M8873	1	Elec. Connector Terminal	Start Relay (K18) 19
27	57M8871	1	Elec. Connector Terminal	Cavity 1
28	57M7985	1	Electrical Connector Assy	-
29	37M7089	2	Screw	M6 X 12
30	19M7774	1	Screw	M6 X 12
31	19M7865	2	Screw	M8 X 16
32	57M8866	1	Elec. Connector Terminal	-

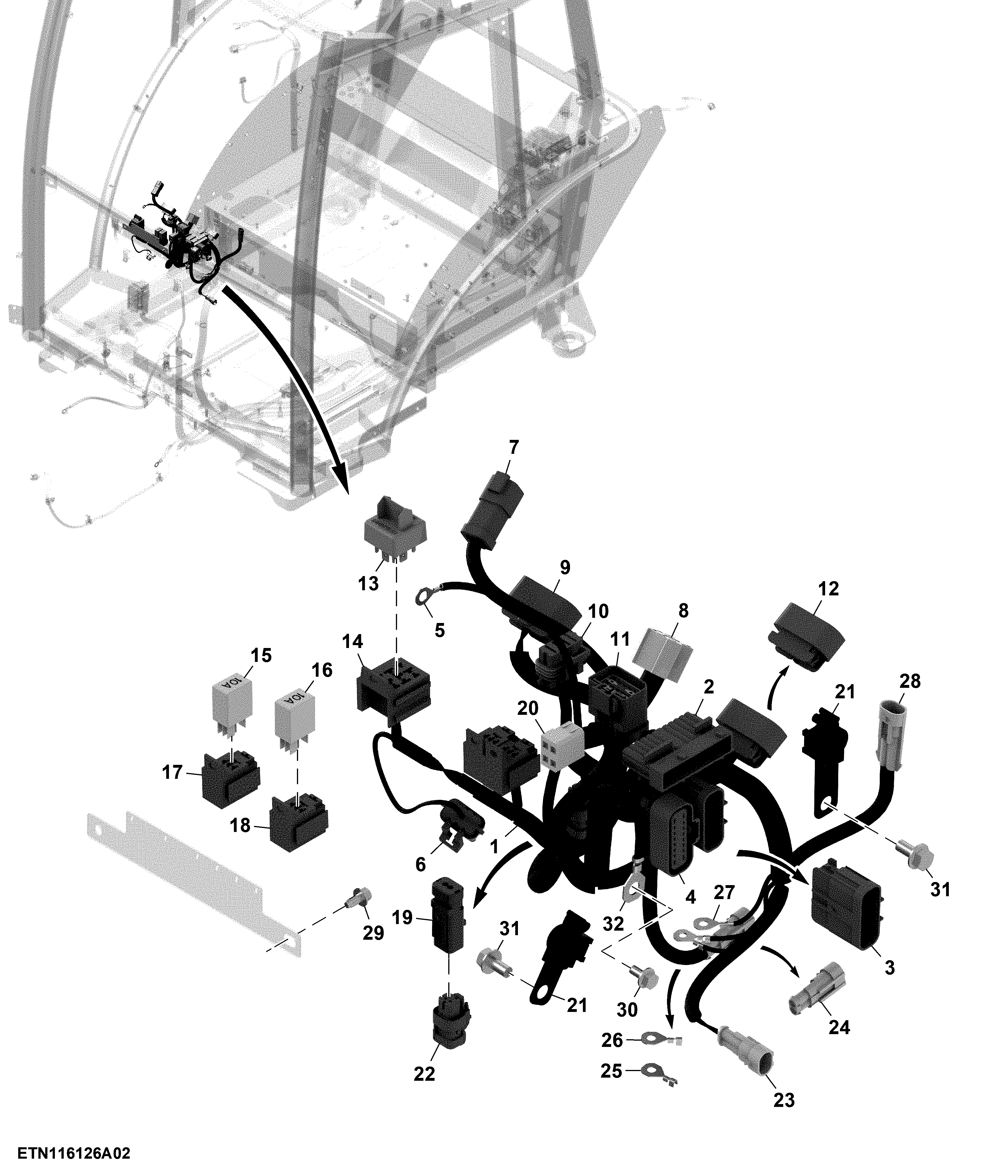

Front Console Wiring Harness, Cab, SyncShuttle™(2/6)
