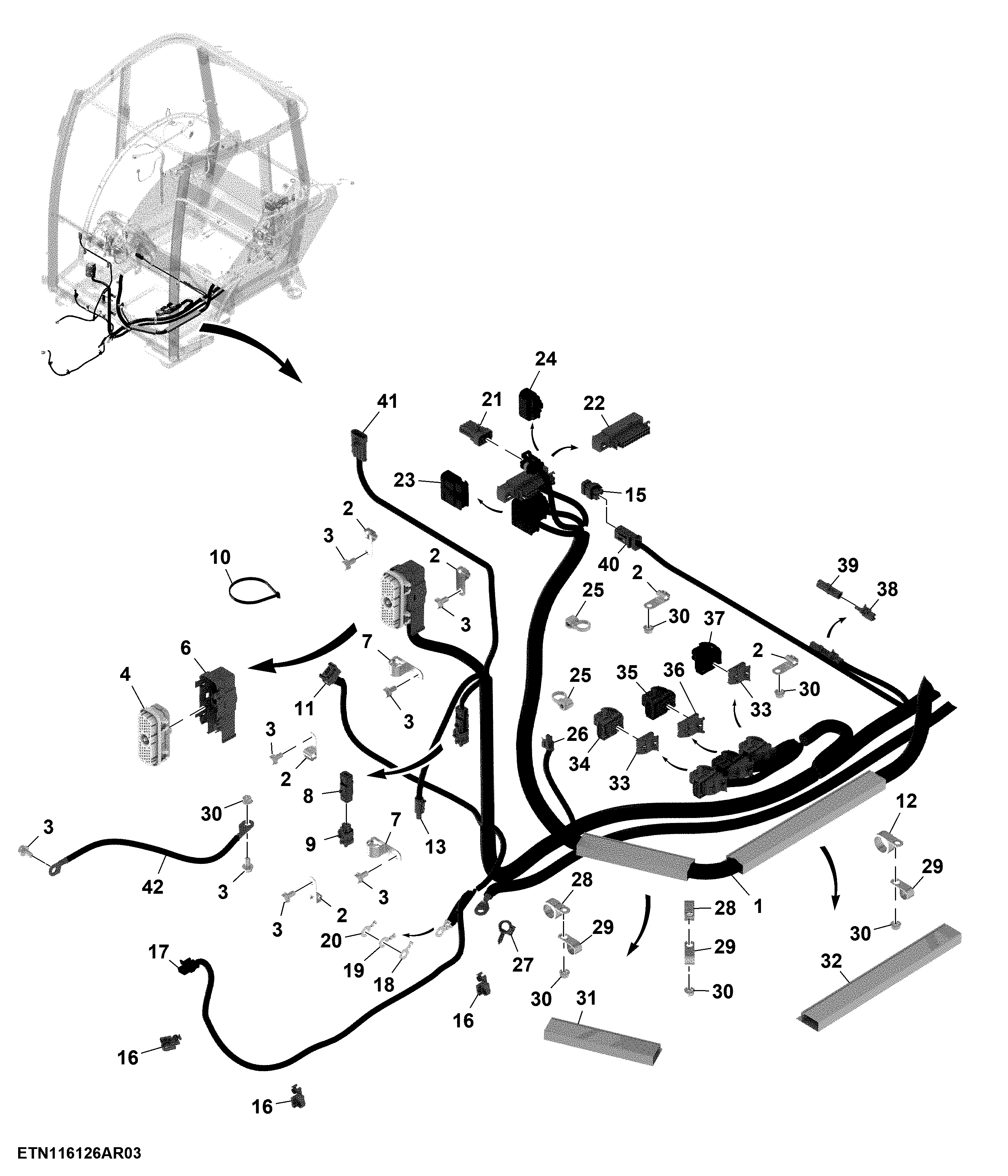

Cab Wiring Harness, SyncShuttle™(3/6)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ18255	1	Wiring Harness	-
2	57M9435	6	Clamp	-
3	19M7865	8	Screw	M8 X 16
4	RE538503	1	Elec. Connector Accessory	ECU J3 Connector 52
5	57M9808	1	Elec. Connector Terminal	-
6	R528122	1	Elec. Connector Accessory	-
7	57M12053	2	Elec. Connector Accessory	-
8	57M9776	1	Elec. Connector Housing	Can Terminator 53
8	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
9	57M11134	1	Elec. Connector Housing	-
10	R105388	1	Tie Band	-
11	57M7953	1	Electrical Connector Assy	Foot Throttle 56
11	57M9180	2	Elec. Connector Terminal	Cavity 1, 2
12	57M10826	1	Clamp	-
13	57M7762	1	Electrical Connector Assy	Engine Harness 50
14	57M10916	1	Elec. Connector Terminal	Cavity 1
15	57M9817	1	Elec. Connector Housing	39 A
16	57M12024	3	Elec. Connector Accessory	-
17	57M7309	1	Elec. Connector Housing	AC Compressor 49
17	57M7306	1	Elec.Connect Locking Device	-
17	57M7297	2	Elec. Connector Terminal	Cavity A, B
17	57M9219	2	Elec. Connector Seal	Cavity A, B
18	57M8866	1	Elec. Connector Terminal	Single Point Ground Stud XGN18A / 47 A Cavity 1
19	57M8866	1	Elec. Connector Terminal	Single Point Ground Stud 47 B, Cavity 1
20	57M8866	1	Elec. Connector Terminal	Single Point Ground Stud 47 C, Cavity 1
21	57M7264	1	Elec. Connector Housing	Dust Cap 10 A
21	57M7283	1	Elec.Connect Locking Device	-
22	57M8944	1	Elec. Connector Housing	-
23	57M8306	1	Elec. Connector Terminal	Cavity S
23	57M8307	1	Elec. Connector Terminal	Cavity J
23	57M9539	4	Elec. Connector Terminal	Cavity C, L, N, M
23	57M8301	7	Elec. Connector Terminal	B, D, E, F, G, K, R, P,
23	57M11996	1	Elec. Connector Accessory	-
23	57M8281	1	Elec. Connector Housing	Transmission Harness 17
23	57M8308	2	Elec. Connector Terminal	Cavity A, H
24	57M8484	1	Elec. Connector Housing	-
25	CB01483609	3	Tie Band	-
26	57M7328	1	Elec. Connector Housing	Diff Lock 46
26	57M7289	1	Elec.Connect Locking Device	-
26	57M7494	2	Elec. Connector Terminal	Cavity A, B
26	57M9215	2	Elec. Connector Seal	Cavity A, B
27	57M8902	1	Clip	-
28	57M10825	2	Clamp	-
29	57M9855	3	Clamp	-
30	14M7298	3	Flange Nut	M8
31	R267934	1	Channel	-
32	R267935	1	Channel	-
33	57M10604	2	Elec. Connector Housing	-
34	57M10609	1	Elec. Connector Housing	43
34	57M10330	8	Elec. Connector Terminal	FCC J1 Connector Cavity A4, B1, C3, C4, E2, G2, H1, H2
35	57M10615	1	Elec. Connector Housing	44
35	57M10330	11	Elec. Connector Terminal	FCC J2 Connector Cavity A1, A3, A4, B1, B2, B4, G2, H4, J2, J4, K2,
35	57M10617	4	Elec. Connector Housing	Cavity L1, M1, M3, M4
36	57M10613	1	Elec. Connector Housing	-
37	57M10606	1	Elec. Connector Housing	FCC J3 Connector 45 - 1
37	57M10330	2	Elec. Connector Terminal	Cavity C2, E4
38	RE12362	1	Electrical Connector Assy	Front PTO Interface 57
38	R78057	1	Elec. Connector Terminal	Cavity A
38	57M9219	1	Elec. Connector Seal	Cavity A
39	R78052	1	Electrical Connector Assy	Dust Cap 57 A
40	57M9821	1	Elec. Connector Housing	Mid Mount SCV Interface 39
40	57M9813	2	Elec. Connector Terminal	Cavity 1, 2
41	57M7839	1	Electrical Connector Assy	Hood Harness 51
