Открытый узел

Cab Wiring Harness (6/6)

Cab Wiring Harness (6/6)

Cab Wiring Harness (6/6)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

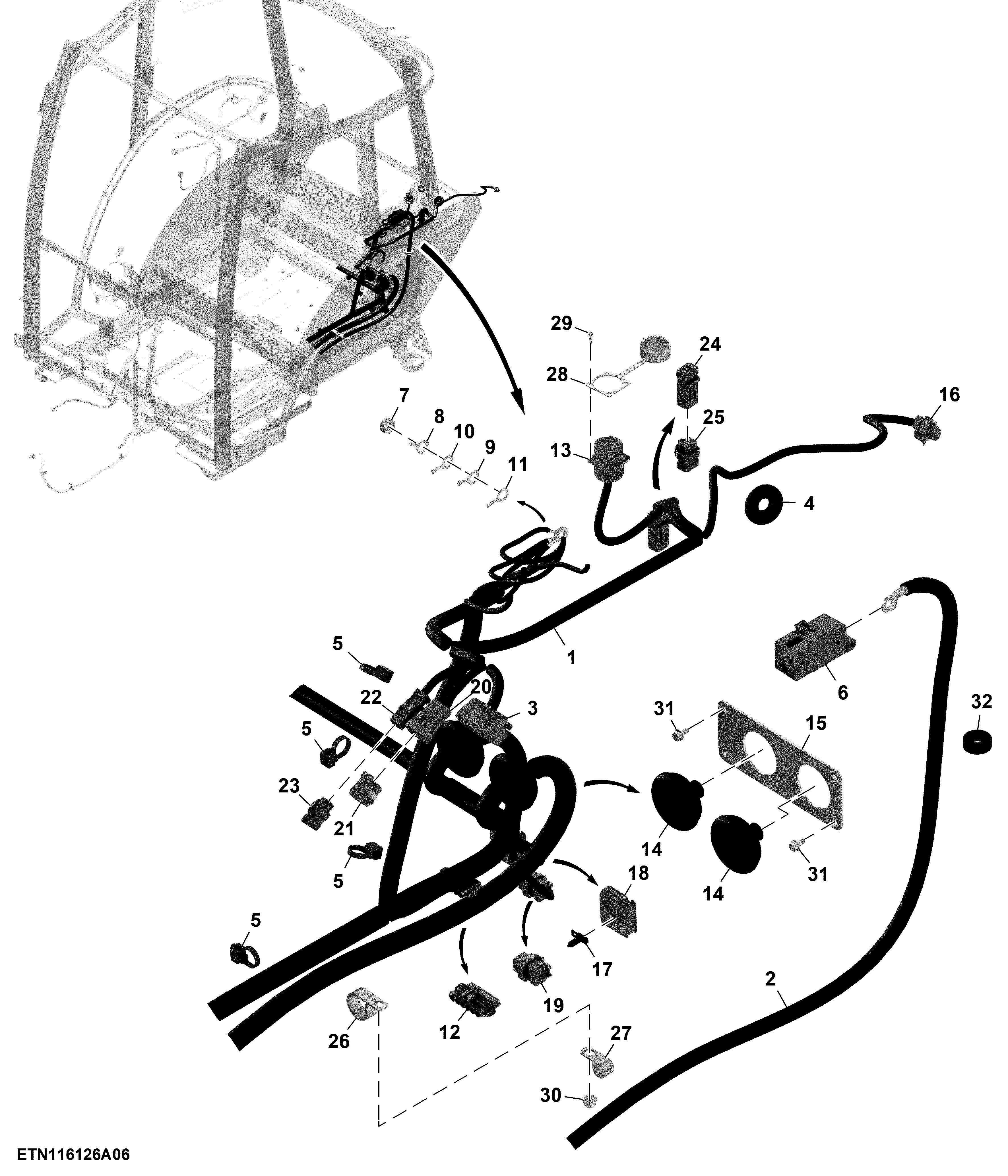

Cab Wiring Harness (6/6)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ18255	1	Wiring Harness	-
2	SJ18836	1	Battery Cable	-
3	57M8279	1	Elec. Connector Housing	Roof Harness 09
3	57M8304	6	Elec. Connector Terminal	Cavity A, F, G, K, L, N
3	57M8303	9	Elec. Connector Terminal	Cavity B, C, D, E, J, H, M, P, S,
3	57M8324	6	Elec. Connector Terminal	Cavity A, F, G, K, L, N
3	57M8323	9	Elec. Connector Terminal	Cavity B, C, D, E, J, H, M, P, S,
4	Z53033	1	Grommet	-
5	CB01483609	1	Tie Band	-
6	RE48875	1	Junction Block	-
7	14M7274	1	Nut	M10
8	57M7894	1	Elec. Connector Terminal	JB - A
9	57M7894	1	Elec. Connector Terminal	JB - B
10	57M7894	1	Elec. Connector Terminal	JB - C
11	57M7894	1	Elec. Connector Terminal	JB - D
12	57M9406	1	Elec. Connector Accessory	05
12	57M8326	1	Electrical Connector Assy	-
12	57M7299	1	Elec. Connector Terminal	Cavity A
12	57M7491	3	Elec. Connector Terminal	Cavity B, D, E,
12	57M7297	1	Elec. Connector Terminal	Cavity F
12	57M9217	1	Elec. Connector Seal	Cavity A
12	57M9216	4	Elec. Connector Seal	Cavity B, D, E, F
13	57M7919	1	Elec. Connector Housing	Service Advisor 11
13	N282069	2	Elec. Connector Terminal	Cavity A, B
13	57M8164	2	Elec. Connector Terminal	Cavity C, D
14	R138078	2	Grommet	-
15	SU23151	1	Bracket	-
16	57M7258	4	Elec. Connector Seal	Cavity A - D
16	R104846	4	Elec. Connector Terminal	Cavity A - D
16	57M7349	1	Elec. Connector Accessory	Left Tail / Turn Lamp 14
16	57M7347	1	Elec. Connector Accessory	-
17	57M8910	1	Clip	-
18	57M8281	1	Elec. Connector Housing	02
18	57M11996	1	Elec. Connector Accessory	-
18	57M8308	4	Elec. Connector Terminal	Cavity A, H, J, S,
18	57M8301	12	Elec. Connector Terminal	Cavity B, C, D, E, F, G, K, L, M, N, P, R,
18	57M8324	4	Elec. Connector Terminal	-
18	57M8321	12	Elec. Connector Terminal	-
19	57M9786	1	Elec. Connector Housing	-
20	57M7264	1	Elec. Connector Housing	GPS Extension Interface 10
20	57M7283	1	Elec.Connect Locking Device	-
20	57M7495	2	Elec. Connector Terminal	Cavity A, E
20	R104919	3	Elec. Connector Terminal	Cavity C, D, H
20	57M9215	2	Elec. Connector Seal	Cavity A, E
20	57M7258	3	Elec. Connector Seal	Cavity C, D, H
21	57M7261	1	Elec. Connector Housing	Dust Cap 10A
21	57M7296	1	Elec. Connector Accessory	-
22	57M9776	1	Elec. Connector Housing	Roof Harness 08
22	57M9813	1	Elec. Connector Terminal	-
23	57M9772	1	Elec. Connector Housing	Dust Cap 08A
24	57M9821	1	Elec. Connector Housing	Mid Mount SCV Interface 39
24	57M9813	2	Elec. Connector Terminal	Cavity 1, 2
24	57M10603	1	Elec. Connector Terminal	Cavity 3
25	57M9817	1	Elec. Connector Housing	Dust Cap 39A
26	57M10826	1	Clamp	-
27	57M9855	1	Clamp	-
28	L156796	1	Plug	-
29	37M7095	1	Screw	-
30	14M7298	1	Flange Nut	M8
31	19M7774	1	Screw	M6 X 12
32	FH318001	1	Grommet	-
