20 Engine 4045HLV72-RE565006

Нет текстового описания

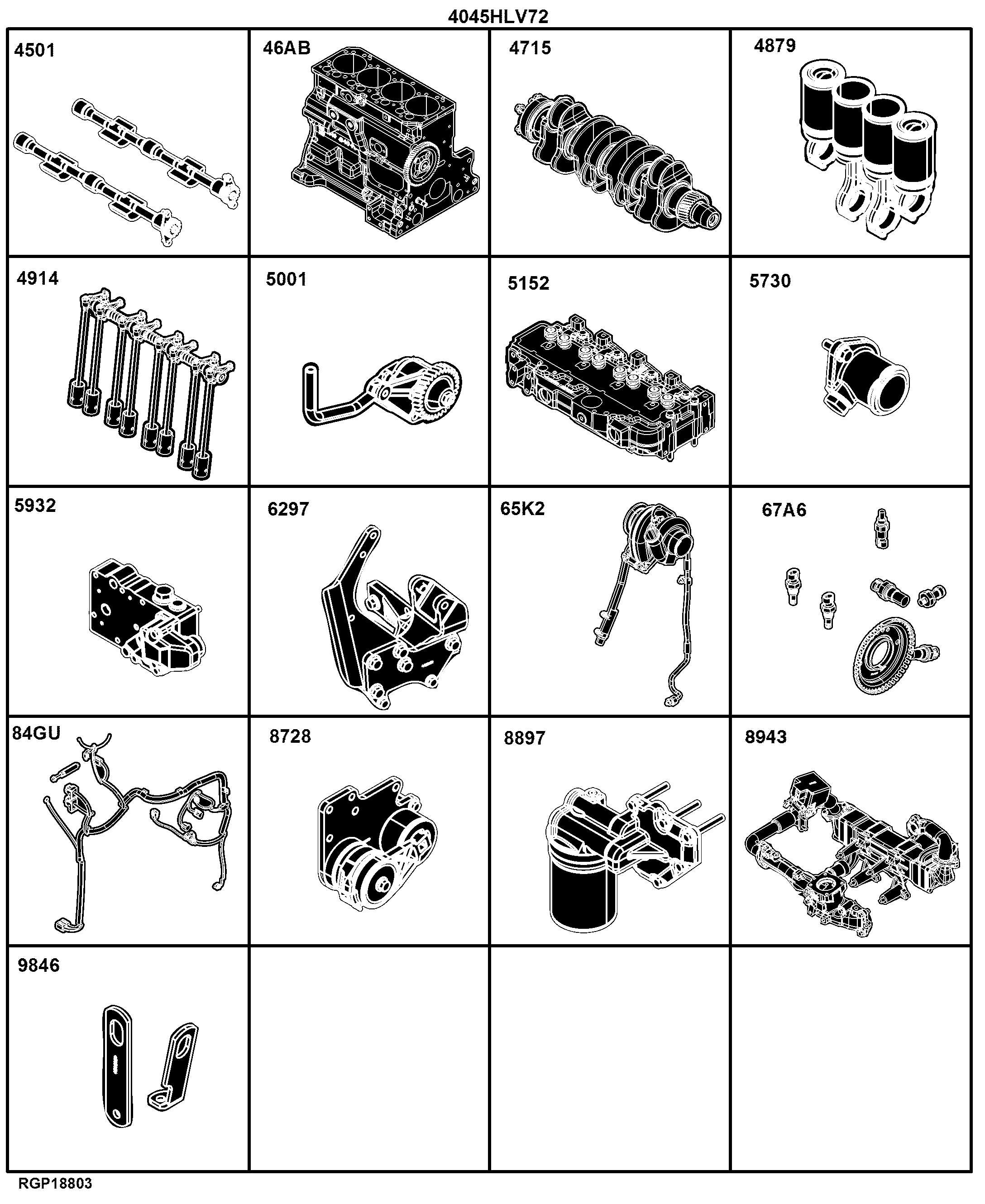

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	9846 Lift Straps	-
-	-	1	9901 Engine Overhaul Gasket Kit (1/3)	-
-	-	1	9901 Engine Gasket Kit (2/2)	-
-	-	1	9901 Engine Gasket Kit (1/2)	-
-	-	1	9901 Engine Coolant Pump Kit	-
-	-	1	9901 Crankshaft Bearing Kit	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Bolt Kit	-
-	-	1	9901 Engine Overhaul Gasket Kit (2/3)	-
-	-	1	8943 Exhaust Gas Recirculation	-
-	-	1	8897 Engine Oil Filter	-
-	-	1	8728 Belt Tensioner	-
-	-	1	84GU Engine Wiring Harness	-
-	-	1	67A6 Engine Sensors	-
-	-	1	65K2 Turbocharger	-
-	-	1	6297 Alternator Mounting Hardware	-
-	-	1	9901 O Ring Kit, Cylinder Liner	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Starter Motor Kit	-
-	-	1	9901 Short Block Assembly	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Piston Ring Kit	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	61BN Aftertreatment, Exhaust System	-
-	-	1	9901 Nozzle Kit	-
-	-	1	9901 Hardware Kit (2/2)	-
-	-	1	9901 Hardware Kit (1/2)	-
-	-	1	9901 Engine Overhaul Kit (3/3)	-
-	-	1	9901 Engine Overhaul Kit (2/3)	-
-	-	1	9901 Engine Overhaul Kit (1/3)	-
-	-	1	9901 Engine Overhaul Gasket Kit (3/3)	-
-	-	1	2001 Water Pump Pulley	-
-	-	1	3612 Front Plate	-
-	-	1	35HW Fuel Filter	-
-	-	1	30AV Starter Motor	-
-	-	1	29DD Ventilation System (XXXXXX - )	-
-	-	1	29BL Ventilation System ( - XXXXXX)	-
-	-	1	28BT Exhaust Manifold	-
-	-	1	2226 Engine Thermostat	-
-	-	1	2177 Thermostat Cover	-
-	-	1	3713 Fuel Transfer Pump	-
-	-	1	19BD Oil Pan	-
-	-	1	17FQ Air Intake	-
-	-	1	16MQ Fuel Injection System	-
-	-	1	1596 Flywheel	-
-	-	1	1469 Flywheel Housing	-
-	-	1	1327 Crankshaft Pulley	-
-	-	1	1297 Oil Filler Cover	-
-	-	1	1183 Valve Cover	-
-	-	1	3953 Thermostat Housing	-
-	-	1	4084 Engine Oil Dipstick Tube	-
-	-	1	43AB Starting Aid	-
-	-	1	4468 Timing Gear Cover and Water Pump	-
-	-	1	4501 Balancer Shaft	-
-	-	1	46AB Cylinder Block ( - 027534)	-
-	-	1	46BP Cylinder Block (027535 - )	-
-	-	1	4715 Crankshaft and Bearings	-
-	-	1	4879 Connecting Rods and Pistons	-
-	-	1	4914 Valve Actuating Mechanism ( - 027534)	-
-	-	1	4926 Valve Actuating Mechanism (027535 - )	-
-	-	1	5001 Engine Oil Pump	-
-	-	1	5152 Cylinder Head with Valve	-
-	-	1	5730 Water Pump Inlet	-
-	-	1	5932 Engine Oil Cooler	-
