Открытый узел

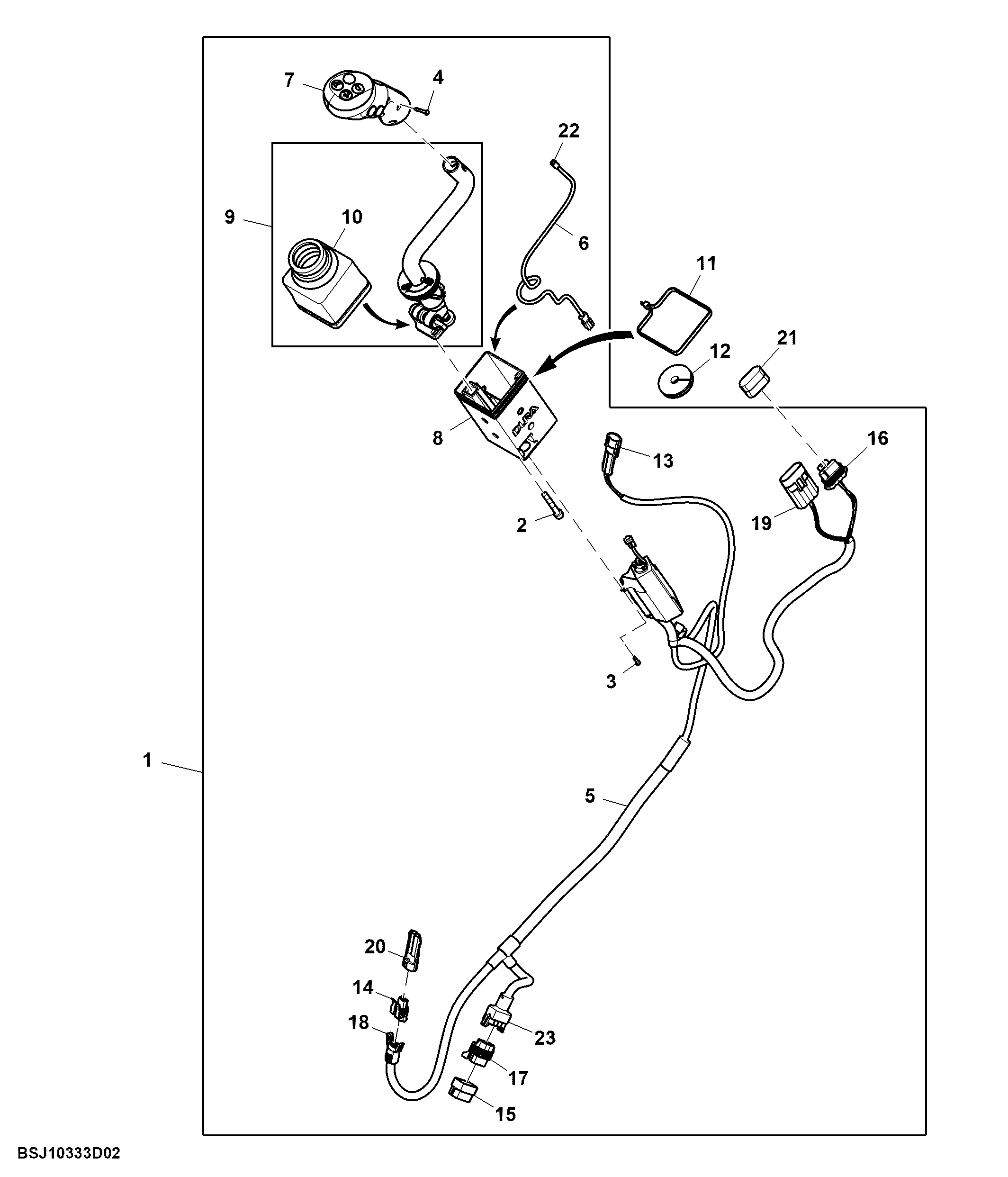

Dual Mid SCV, Joystick Control, Attachment (3/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ17065	1	Multi-Functional Controller	-
2	19M9730	1	Screw	M6 X 45
3	37M7095	2	Screw	-
4	37M7389	4	Screw	-
5	AL208272	1	Wiring Harness	-
6	AL208296	1	Wiring Harness	-
7	AL212354	1	Handle	-
8	L208076	1	Housing	-
9	SJ17063	1	Control Lever	-
10	L208624	1	Boot	-
11	R105388	1	Tie Band	-
12	R112645	1	Grommet	-
13	57M7256	1	Elec. Connector Housing	Interface, Cab X37M
13	57M7289	1	Elec.Connect Locking Device	-
13	57M7259	1	Elec. Connector Seal	-
13	57M11342	2	Elec. Connector Terminal	Cavity A, B
13	57M7493	2	Elec. Connector Seal	Cavity A, B
14	57M7493	2	Elec. Connector Seal	Cavity A, B
14	57M7252	2	Elec. Connector Terminal	Cavity A, B
14	57M7328	1	Elec. Connector Housing	Loader Suspension X1278F
14	57M7259	1	Elec. Connector Seal	-
15	L114840	1	Cap	-
16	57M8416	1	Elec. Connector Housing	X003F-3; SUB FOR 57M7247
16	57M7318	1	Elec. Connector Accessory	-
16	57M7259	1	Elec. Connector Seal	-
16	R104846	4	Elec. Connector Terminal	Cavity A, B, C, D
16	57M7493	4	Elec. Connector Seal	Cavity A, B, C, D
17	57M7493	4	Elec. Connector Seal	Cavity A, B, C, D, E, F
17	R104846	5	Elec. Connector Terminal	Cavity A, B, D, E, F
17	57M7259	1	Elec. Connector Seal	-
17	57M7260	1	Elec. Connector Housing	Diverter 1 / Diverter 2 / Memo X1268F
18	57M8218	1	Elec. Connector Accessory	-
19	57M7244	1	Elec. Connector Housing	X003M-3
19	57M7318	1	Elec. Connector Accessory	-
19	57M7259	1	Elec. Connector Seal	-
19	57M7252	4	Elec. Connector Terminal	Cavity A, B, C, D
19	57M7493	4	Elec. Connector Seal	Cavity A, B, C, D
20	57M7985	1	Electrical Connector Assy	SUB FOR 57M7365
21	L116272	1	Elec. Connector Accessory	-
22	57M8516	1	Elec. Connector Housing	-
23	57M9424	1	Elec.Connect Locking Device	-

Dual Mid SCV, Joystick Control, Attachment (3/3)

Нет текстового описания
