Открытый узел

Dual Mid SCV, Joystick Control, Attachment (1/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BSJ10333	1	Selective Control Valve	-
2	SJ16054	1	Selective Control Valve	Standard Inlet
3	SJ21755	1	Oil Line	Bucket Extend
4	19M7785	4	Screw	M10 X 25
5	38H5076	4	Adapter Fitting	-
6	51M7045	9	O-Ring	19.300 X 2.200 mm
7	T77857	12	O-Ring	-
8	SJ21756	1	Oil Line	Bucket Retract
9	SJ21758	1	Oil Line	Boom Retract
10	38H5121	1	Adapter Fitting	-
11	T77858	5	O-Ring	-
12	SJ21845	1	Oil Line	Return
13	19M7802	1	Screw	M8 X 65
14	SU41640	1	Label	Mid SCV
15	14M7396	3	Lock Nut	M8
16	38H1416	4	Fitting	-
17	38H5005	3	Adapter Fitting	-
18	51M7047	4	O-Ring	23.600 X 2.900 mm
19	T78716	4	Nut	-
20	SU38754	1	Bracket	Mid SCV
21	SU36476	1	Bracket	Mid SCV Bulkhead
22	H112567	2	Plate	-
23	19M7866	3	Screw	M8 X 20
24	19M8162	3	Screw	M10 X 40
25	SJ21757	1	Oil Line	Boom Extend
26	SU303970	1	Boot	Joystick Cable
27	W31909	1	Instruction Plate	Control Lever
28	SJ21842	1	Oil Line	Mid SCV to Rear SCV
29	SJ17609	1	Fitting	-
30	H135155	2	Clamp	-
31	19M7398	2	Cap Screw	M8 X 90
32	24M7207	2	Washer	8.400 X 24 X 2 mm
33	19M7801	1	Screw	M8 X 60
34	L76801	2	Grommet	-
35	SJ298517	1	Bracket	Joystick Mounting
36	19M7867	5	Screw	M8 X 25
37	R112645	1	Grommet	-
38	L116272	1	Elec. Connector Accessory	-
39	SJ21993	2	Push Pull Cable	LGTH = 1230 mm
40	L209039	2	Pin	-
41	SU33213	1	Bracket	Joystick, OOS
42	24M7055	2	Washer	8.400 X 16 X 1.600 mm
43	SU32032	1	Bracket	Joystick, Cab
44	L208072	2	Retainer	-
45	19M7897	1	Screw	M8 X 35
46	R105388	1	Tie Band	-
47	R244801	4	Spacer	-
48	14M7298	3	Flange Nut	M8
49	19M7798	3	Screw	M8 X 40
50	SU32033	1	Cover	-
51	SJ21992	2	Push Pull Cable	LGTH = 1330 mm
52	38H1275	4	Adapter Fitting	-
53	SJ24783	1	Selective Control Valve	-
54	RE46687	4	Drain Plug	-
55	L218530	1	Label	Safety, Hot Surface

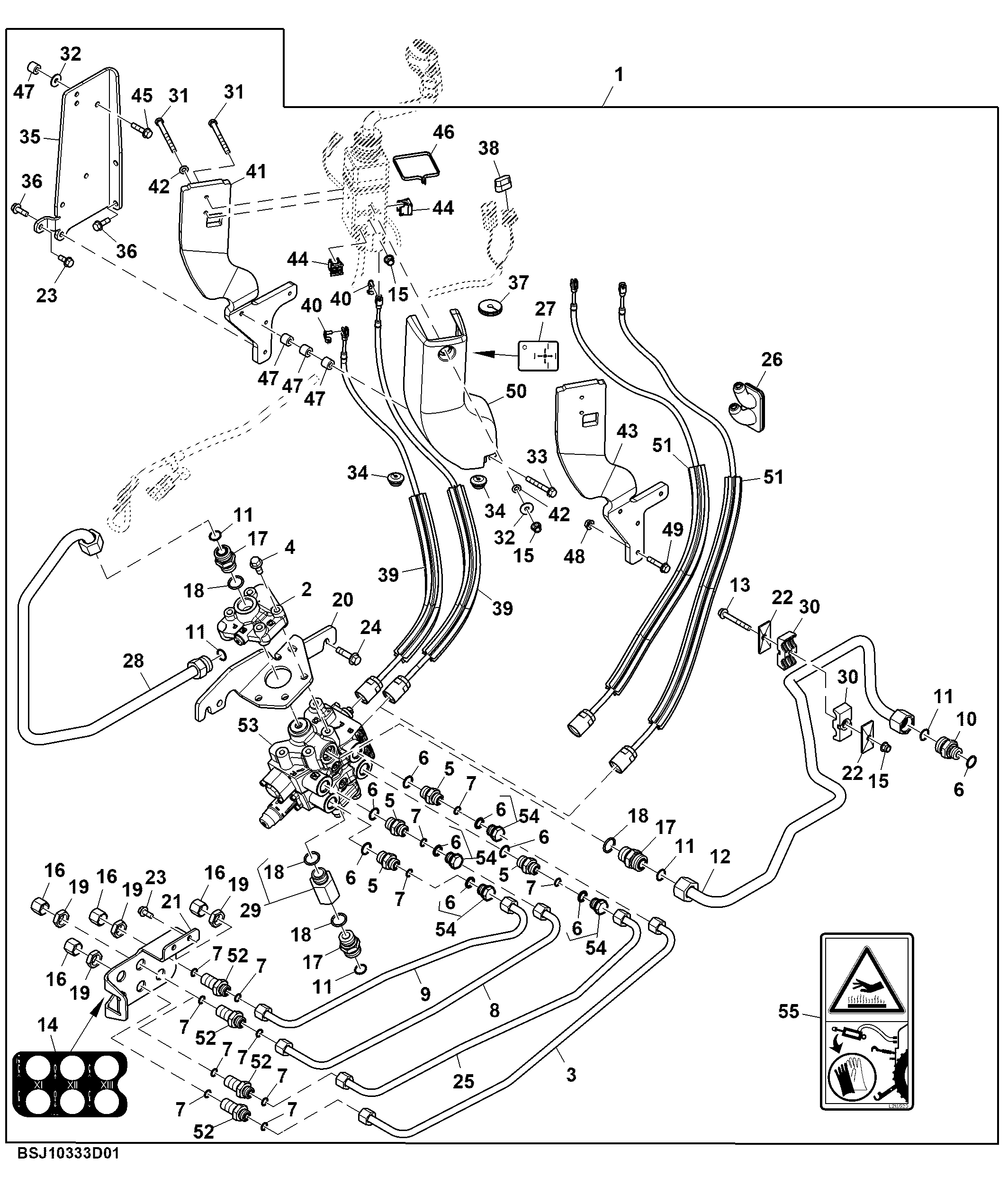

Dual Mid SCV, Joystick Control, Attachment (1/3)
