Открытый узел

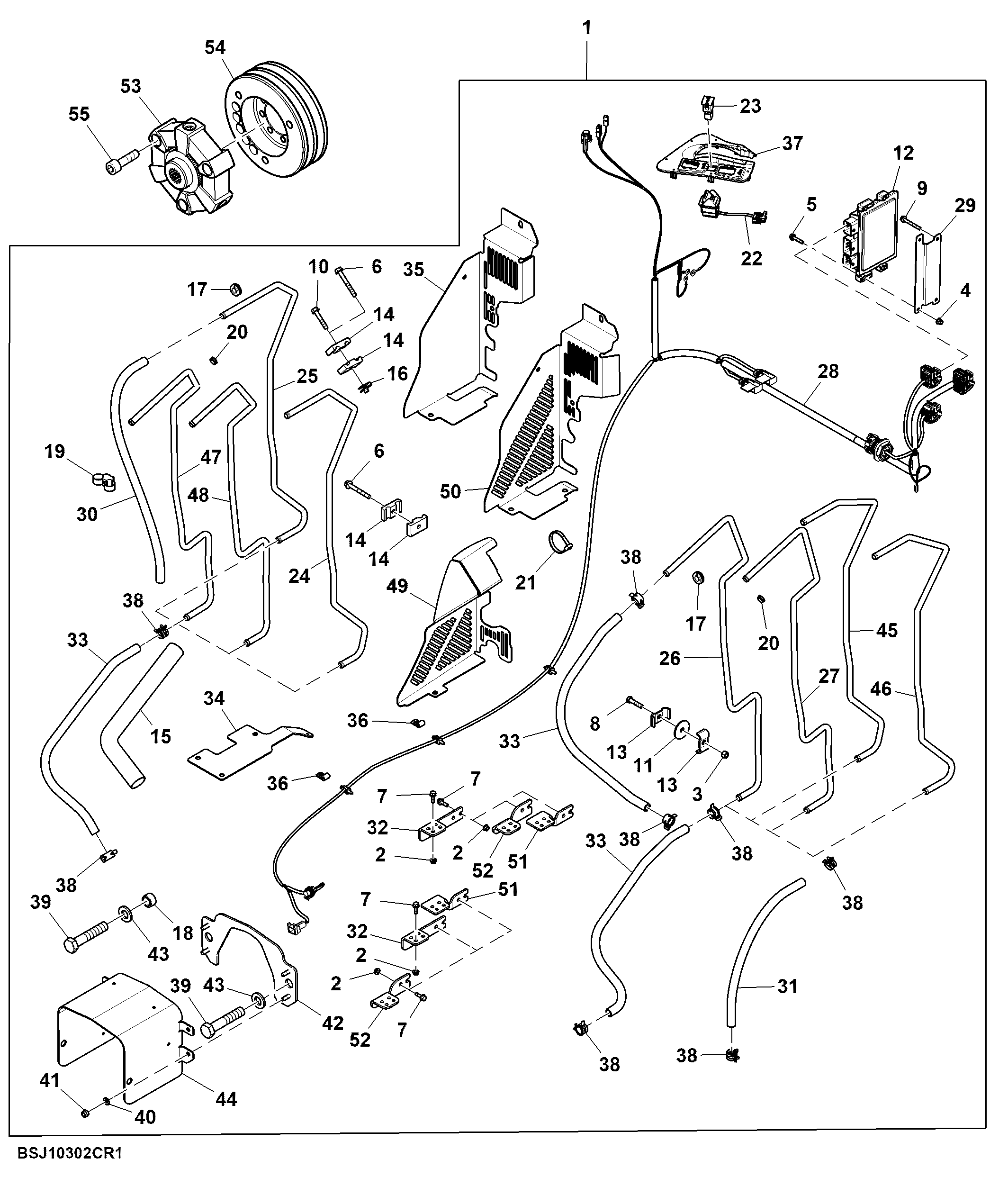

Front PTO Hardware and Lines, 1000CCW, Attachment

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BSJ10302	1	Power-Takeoff	If Tractor is not Front PTO Ready ALSO ORDER SJ19538, SU35089 AND (4) SU33318
2	14M7303	8	Flange Nut	M6
3	14M7327	1	Lock Nut	M8
4	14M7397	2	Lock Nut	M6
5	19M7796	2	Screw	M6 X 30
6	19M7802	2	Screw	M8 X 65
7	19M7862	8	Screw	M6 X 20
8	19M8008	1	Cap Screw	M8 X 35
9	19M8092	2	Screw	M6 X 50
10	19M8318	1	Screw	M8 X 45
11	24H1314	1	Washer	13/32" X 1-3/4" X 7/64"
12	AL206942	1	Basic Control Unit	-
13	E57952	2	Clamp	-
14	H135156	4	Clamp	-
15	LVU23855	1	Hose Guard	LGTH = 500 mm
16	M84971	1	Nut	-
17	M85517	2	Grommet	-
18	R129201	2	Bushing	-
19	R213663	1	Clamp	-
20	R34811	2	GROMMET	-
21	R44302	2	Tie Band	-
22	RE160961	1	Toggle/Rocker Switch	14 V, Front PTO
23	SJ10385	1	Indicator Lamp	12 V, 3W
24	SJ17491	1	Oil Line	Oil Cooler
25	SJ17492	1	Oil Line	Oil Cooler
26	SJ17794	1	Oil Line	Supply
27	SJ17795	1	Oil Line	Return
28	SJ17842	1	Wiring Harness	Front PTO
29	SU29747	1	Bracket	Controller
30	-	1	Part 30	CTL 628 mm, MF TY22562
31	-	2	Part 31	CTL 412 mm, MF TY22562
32	SU31408	2	Bracket	Front PTO Oil Cooler
33	-	3	Part 33	CTL 600 mm, MF TY22562
34	SU31717	1	Bracket	Engine Power Line USE WITH SJ17491 AND SJ17492
35	SU35226	1	Guard	Front PTO RH, USE WITH SJ17794 AND SJ17795
36	AH87142	2	Clip	-
37	SU299378	1	Panel	-
38	R184863	8	Hose Clamp	-
39	19M9135	4	Cap Screw	M20 X 100
40	24M7238	4	Washer	8.700 X 17 X 2 mm
41	14M7426	4	Lock Nut	M8
42	SJ24624	1	Bracket	Front PTO Shield
43	R94361	4	Washer	-
44	SU42367	1	Shield	Front PTO
45	SJ25896	1	Oil Line	Cooler Supply
46	SJ25897	1	Oil Line	Cooler Return
47	SJ25902	1	Oil Line	Cooler Return
48	SJ25901	1	Oil Line	Cooler Supply
49	SU47410	1	Guard	Front PTO, 5075M RH, USE WITH SJ25896 AND SJ25897
50	SU49045	1	Guard	Cab, Front PTO RH, USE WITH SJ25901 AND SJ25902
51	SU43999	2	Bracket	Oil Cooler
52	SU46906	2	Bracket	Oil Cooler
53	SJ19538	1	Coupling	-
54	SU35089	1	Pulley	OD = 169 mm
55	SU33318	4	Screw	-

Front PTO Hardware and Lines, 1000CCW, Attachment

Нет текстового описания
