Roof Wiring Harness (5/5)

Roof Wiring Harness (5/5)

Roof Wiring Harness (5/5)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

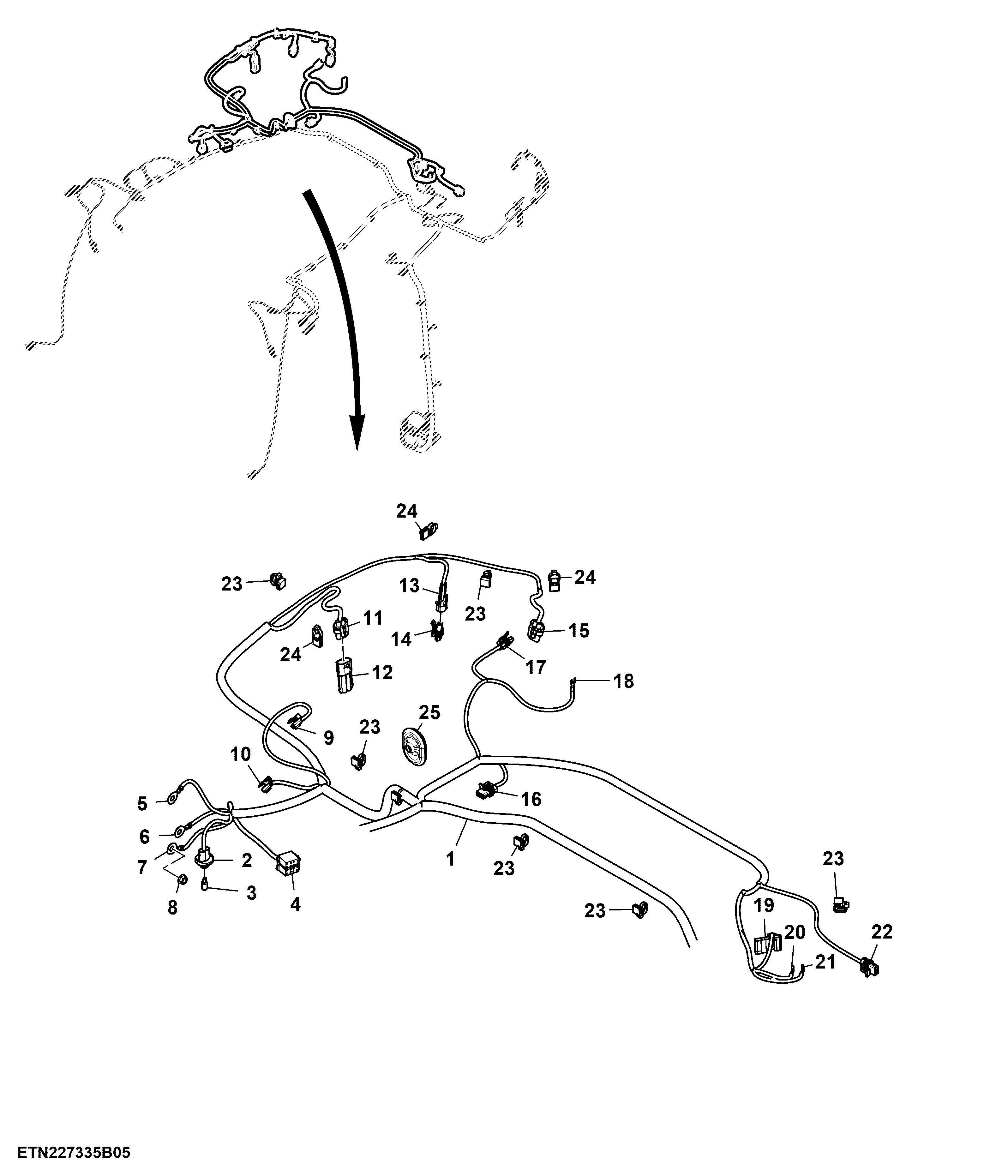

Roof Wiring Harness (5/5)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ40610	1	Roof Wiring Harness	-
2	57M8436	1	Socket	Right Hand Console Lamp XE18
2	57M8313	2	Elec. Connector Terminal	Cavity A, B
2	57M10845	2	Elec. Connector Cable Seal	Cavity A, B
3	AR48015	1	Bulb	12 V
4	57M8781	1	Elec. Connector Housing	Radio XA086-1
4	57M10226	4	Elec. Connector Terminal	Cavity A5, A8, B1, B2
4	57M12009	8	Elec. Connector Terminal	Cavity A4, A7, B3 - B8
5	57M8866	1	Elec. Connector Terminal	Single Point Ground XGND9-1
6	57M8866	1	Elec. Connector Terminal	Single Point Ground XGND9-2
7	57M8867	1	Elec. Connector Terminal	ROPS XGND9-3
8	14M7416	1	Flange Nut	M8
9	57M8174	1	Elec. Connector Housing	-
10	57M8174	1	Elec. Connector Housing	Right Speaker XB240
10	57M7724	1	Electrical Connector Assy	-
10	57M8293	2	Elec. Connector Terminal	Cavity A, B
11	57M8839	1	Elec. Connector Housing	Right Side Worklamp XE12
11	57M8129	2	Elec. Connector Terminal	-
11	57M7491	2	Elec. Connector Terminal	Cavity A, B
11	57M9218	2	Elec. Connector Seal	Cavity A, B
11	R78064	2	Elec. Connector Cavity Plug	-
12	57M8958	1	Elec. Connector Housing	-
13	57M9215	2	Elec. Connector Seal	Cavity A, B
13	57M7252	2	Elec. Connector Terminal	Cavity A, B
13	57M7259	2	Elec. Connector Seal	-
13	57M7256	1	Elec. Connector Housing	Right Rear Warning Lamp XH10
13	57M9712	2	Elec. Connector Accessory	-
14	57M7254	1	Elec. Connector Housing	-
15	57M8839	1	Elec. Connector Housing	Right Rear Inner Worklamp XE10
15	57M8129	1	Elec. Connector Terminal	-
15	57M7491	2	Elec. Connector Terminal	Cavity A, B
15	57M9218	2	Elec. Connector Seal	Cavity A, B
16	57M7309	1	Elec. Connector Housing	Right Blower Motor XM03
16	57M7306	1	Elec.Connect Locking Device	-
16	57M7299	2	Elec. Connector Terminal	Cavity A, B
16	57M9217	2	Elec. Connector Seal	Cavity A, B
17	R104846	2	Elec. Connector Terminal	Cavity A, B
17	57M9215	2	Elec. Connector Seal	Cavity A, B
17	57M9712	1	Elec. Connector Accessory	-
17	57M7254	1	Elec. Connector Housing	AC High-Low Pressure Switch XB08
18	57M7054	1	Elec. Connector Terminal	Single Point Ground XGND18
19	57M7457	1	Elec. Connector Housing	HVAC Resistor XR03
19	57M9200	3	Elec. Connector Terminal	Cavity A, C, D
19	57M9461	1	Elec. Connector Terminal	Cavity B
20	57M9200	1	Elec. Connector Terminal	XB07-1
21	57M9200	1	Elec. Connector Terminal	XB07-2
22	57M7309	1	Elec. Connector Housing	Left Blower Motor XM02
22	57M7306	1	Elec.Connect Locking Device	-
22	57M7299	2	Elec. Connector Terminal	Cavity A, B
22	57M9217	2	Elec. Connector Seal	Cavity A, B
23	57M9229	6	Clip	-
24	57M10362	3	Clamp	-
25	L102007	1	Grommet	-
