Открытый узел

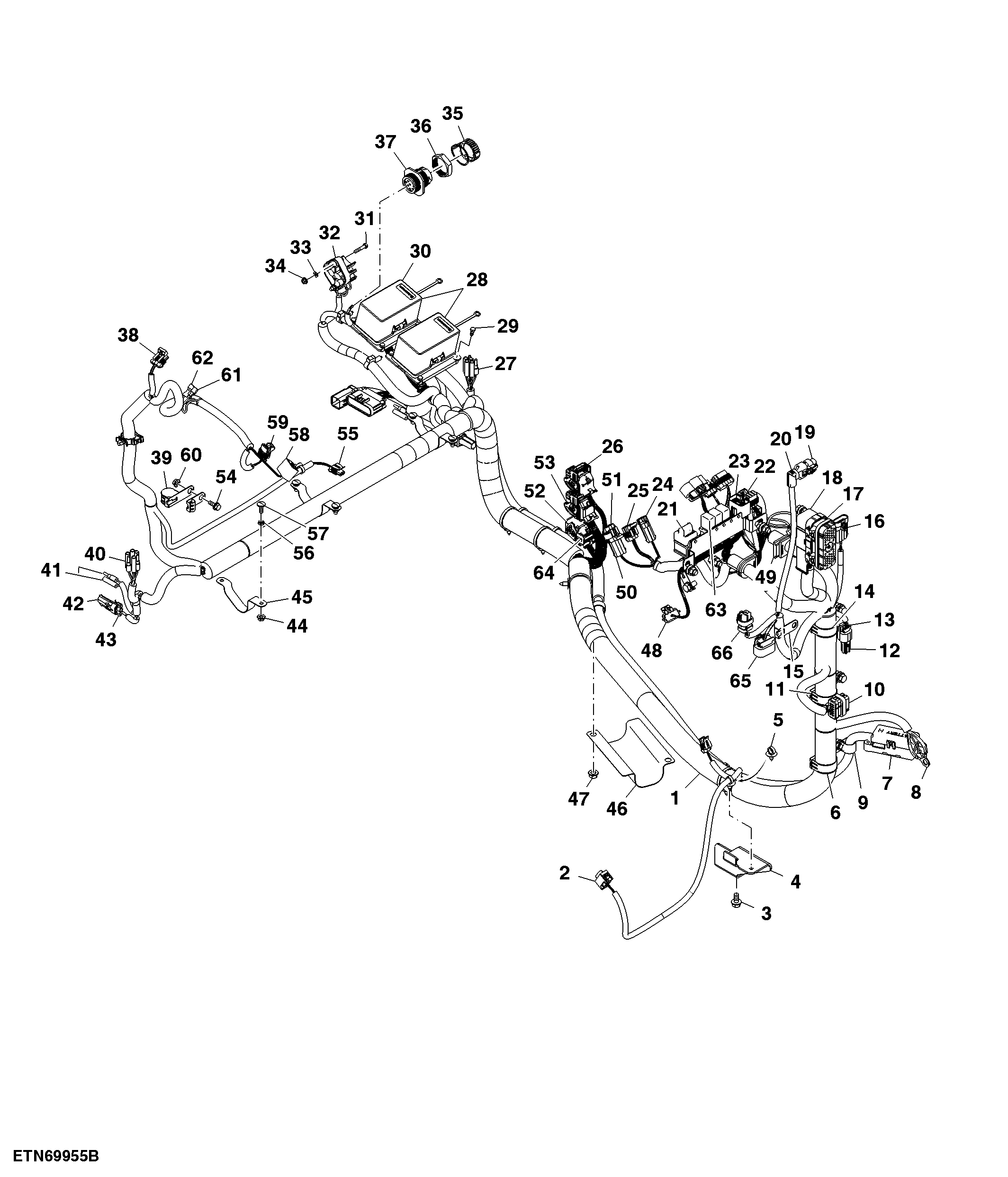

Platform Wiring Harness, IOOS, Syncshuttle Plus

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ19287	1	Wiring Harness	SUB FOR SJ11229
2	57M9753	1	Elec. Connector Housing	-
3	19M7865	1	Screw	M8 X 16
4	SU23071	1	Bracket	-
5	57M9412	1	Clamp	-
6	57M11134	1	Elec. Connector Housing	CAN TERMINATOR
7	RE48875	1	Junction Block	-
8	57M7894	1	Elec. Connector Terminal	-
9	57M8833	1	Elec. Connector Accessory	-
10	57M9800	1	Elec. Connector Housing	-
11	57M11134	1	Elec. Connector Housing	CAN TERMINATOR
12	57M11134	1	Elec. Connector Housing	CAN TERMINATOR
13	57M11134	1	Elec. Connector Housing	CAN TERMINATOR
14	57M11134	1	Elec. Connector Housing	CAN TERMINATOR
15	57M8856	1	Elec. Connector Accessory	-
16	57M7839	1	Electrical Connector Assy	-
17	RE538503	1	Elec. Connector Accessory	-
18	R528122	1	Elec. Connector Accessory	-
19	57M9780	1	Elec. Connector Housing	-
20	57M10158	1	Elec. Connector Accessory	-
21	RE262484	1	Diode	-
22	57M7262	1	Elec. Connector Housing	-
23	57M10299	1	Elec. Connector Housing	-
24	57M7985	1	Electrical Connector Assy	-
25	57M7260	1	Elec. Connector Housing	-
26	57M8519	1	Elec. Connector Housing	-
27	57M11134	1	Elec. Connector Housing	CAN TERMINATOR
28	RE269840	1	Fuse Box	-
29	19M7640	4	Cap Screw	M5 X 12
30	SU23504	1	Label	-
31	19M7502	2	Cap Screw	M5 X 25
32	RE186986	1	Junction Block	-
33	24M7027	2	Washer	5.300 X 10 X 1 mm
34	14M7375	2	Flange Nut	M5
35	RE217864	1	Cap	-
36	57M9182	1	Nut	-
37	57M9183	1	Elec. Connector Housing	-
38	57M7255	1	Elec. Connector Housing	-
39	57M8827	1	Clamp	-
40	57M11134	1	Elec. Connector Housing	CAN TERMINATOR
41	57M11134	1	Elec. Connector Housing	CAN TERMINATOR
42	57M7256	1	Elec. Connector Housing	-
43	57M7254	1	Elec. Connector Housing	-
44	14M7303	1	Flange Nut	M6
45	R273101	1	Clamp	-
46	R266722	1	Bracket	-
47	14M7298	10	Flange Nut	M8
48	57M7261	1	Elec. Connector Housing	-
49	R112653	1	Grommet	-
50	57M7263	1	Elec. Connector Housing	-
51	57M7260	1	Elec. Connector Housing	-
52	57M8523	1	Elec. Connector Housing	-
53	57M8527	1	Elec. Connector Housing	-
54	19M7775	1	Screw	M6 X 16
55	57M7328	1	Elec. Connector Housing	-
56	14M7194	6	Nut	M6
57	03M7222	6	Bolt	M6 X 20
58	57M11134	1	Elec. Connector Housing	CAN TERMINATOR
59	57M7255	1	Elec. Connector Housing	-
60	57M8909	1	Clip	-
61	57M8949	1	Elec. Connector Terminal	-
62	57M11134	1	Elec. Connector Housing	CAN TERMINATOR
63	57M8853	1	Relay	-
64	57M8528	1	Electrical Connector Cap	-
65	57M8277	1	Elec. Connector Housing	-
66	57M9742	1	Elec. Connector Housing	-

Platform Wiring Harness, IOOS, Syncshuttle Plus

Нет текстового описания
