Открытый узел

Platform Wiring Harness, IOOS, PR

Platform Wiring Harness, IOOS, PR

Platform Wiring Harness, IOOS, PR

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

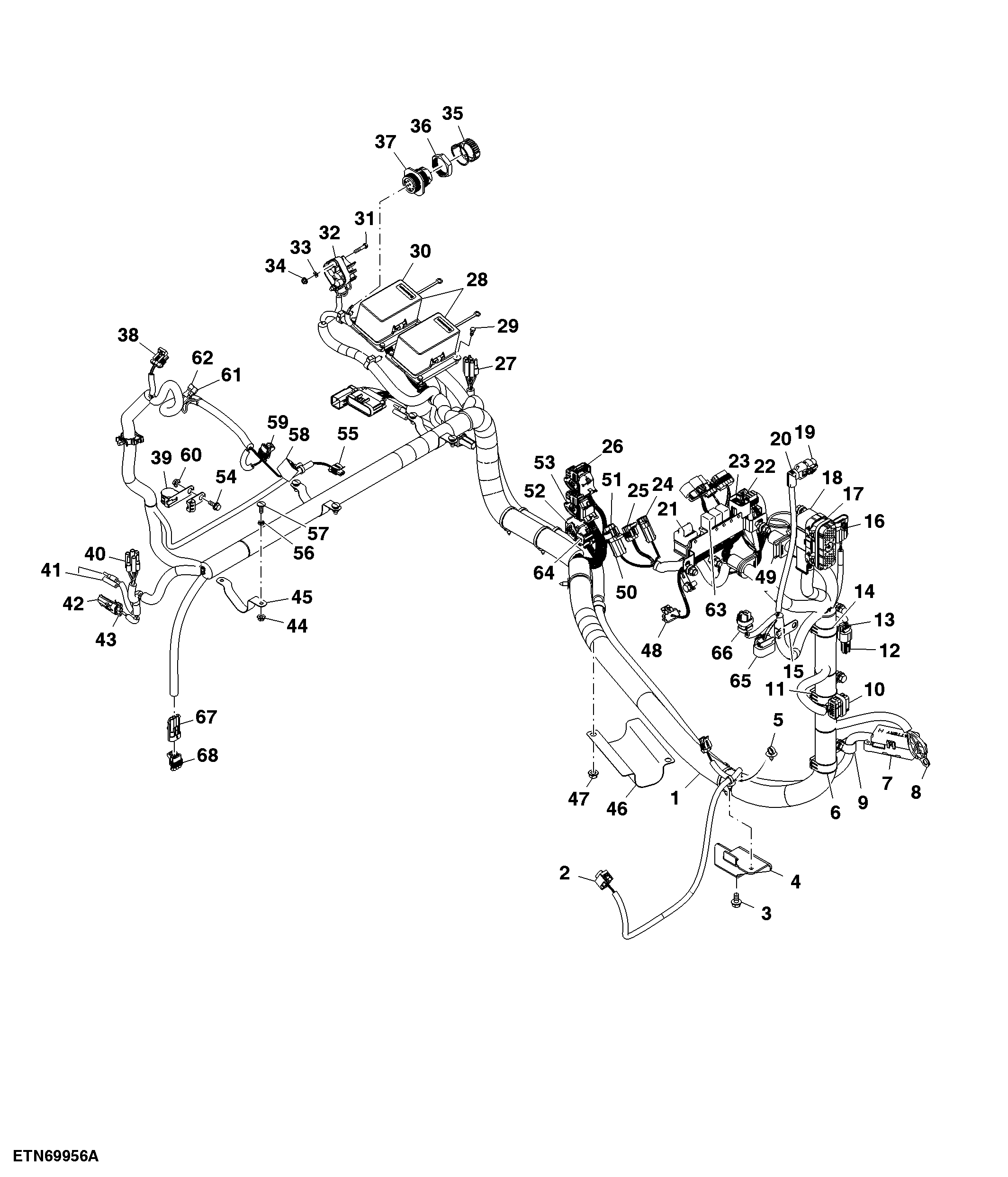

Platform Wiring Harness, IOOS, PR

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ19288	1	Wiring Harness	SUB FOR SJ11230
2	57M7953	1	Electrical Connector Assy	Foot Throttle
3	19M7865	1	Screw	M8 X 16
4	SU23071	1	Bracket	-
5	57M9412	1	Clamp	-
6	57M11134	1	Elec. Connector Housing	CAN TERMINATOR
7	RE48875	1	Junction Block	-
8	57M7894	1	Elec. Connector Terminal	-
9	57M8833	1	Elec. Connector Accessory	-
10	57M9800	1	Elec. Connector Housing	-
11	57M11134	1	Elec. Connector Housing	CAN TERMINATOR
12	57M11134	1	Elec. Connector Housing	CAN TERMINATOR
13	57M11134	1	Elec. Connector Housing	CAN TERMINATOR
14	57M11134	1	Elec. Connector Housing	CAN TERMINATOR
15	57M8856	1	Elec. Connector Accessory	-
16	57M7839	1	Electrical Connector Assy	-
17	RE538505	1	Elec. Connector Accessory	-
18	R528122	1	Elec. Connector Accessory	-
19	57M9780	1	Elec. Connector Housing	-
20	57M10158	1	Elec. Connector Accessory	-
21	RE262484	1	Diode	-
22	57M7262	1	Elec. Connector Housing	-
23	57M10299	1	Elec. Connector Housing	-
24	57M7985	1	Electrical Connector Assy	-
25	57M7260	1	Elec. Connector Housing	-
26	57M8519	1	Elec. Connector Housing	-
27	57M11134	1	Elec. Connector Housing	CAN TERMINATOR
28	RE269840	1	Fuse Box	-
29	19M7640	4	Cap Screw	M5 X 12
30	SU23503	1	Label	-
31	19M7502	2	Cap Screw	M5 X 25
32	RE186986	1	Junction Block	-
33	24M7027	2	Washer	5.300 X 10 X 1 mm
34	14M7375	2	Flange Nut	M5
35	RE217864	1	Cap	-
36	57M9182	1	Nut	-
37	57M9183	1	Elec. Connector Housing	-
38	57M7255	1	Elec. Connector Housing	-
39	57M8827	1	Clamp	-
40	57M11134	1	Elec. Connector Housing	CAN TERMINATOR
41	57M11134	1	Elec. Connector Housing	CAN TERMINATOR
42	57M7256	1	Elec. Connector Housing	-
43	57M7254	1	Elec. Connector Housing	-
44	14M7303	1	Flange Nut	M6
45	R273101	1	Clamp	-
46	R266722	1	Bracket	-
47	14M7298	10	Flange Nut	M8
48	57M7261	1	Elec. Connector Housing	-
49	R112653	1	Grommet	-
50	57M7263	1	Elec. Connector Housing	-
51	57M7260	1	Elec. Connector Housing	-
52	57M8523	1	Elec. Connector Housing	-
53	57M8527	1	Elec. Connector Housing	-
54	19M7775	1	Screw	M6 X 16
55	57M7328	1	Elec. Connector Housing	-
56	14M7194	6	Nut	M6
57	03M7221	6	Bolt	M6 X 16
58	57M11134	1	Elec. Connector Housing	CAN TERMINATOR
59	57M7255	1	Elec. Connector Housing	-
60	57M8909	1	Clip	-
61	57M8949	1	Elec. Connector Terminal	-
62	57M11134	1	Elec. Connector Housing	CAN TERMINATOR
63	57M8853	1	Relay	-
64	57M8528	1	Electrical Connector Cap	-
65	57M8277	1	Elec. Connector Housing	-
66	57M9742	1	Elec. Connector Housing	-
67	57M7257	1	Elec. Connector Housing	-
68	57M7255	1	Elec. Connector Housing	-
