Открытый узел

Rear Wiring Harness, OOS, PowrReverser™ Plus (2/5)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M8584	18	Elec. Connector Terminal	Cavity A1, B1, C7, C8, D7 - D9, E4 - E8, F4 - F8, F10
1	RE269840	1	Fuse Box	Load Center 1 X001
1	57M8515	18	Elec. Connector Seal	Cavity A1, B1, C7, C8, D7 - D9, E4 - E8, F4 - F8, F10
1	57M7401	4	Elec. Connector Cavity Plug	Cavity B9, B10, E9, E10
1	57M8585	38	Elec. Connector Terminal	Cavity A2 - A10, B2 - B8, C1 - C6, C9, C10, D1 - D6, D10, E1 - E3, F1 - F3, F9
1	57M7399	38	Elec. Connector Seal	Cavity A2 - A10, B2 - B8, C1 - C6, C9, C10, D1 - D6, D10, E1 - E3, F1 - F3, F9
2	RE269840	1	Fuse Box	Load Center 2 X002
2	57M8584	10	Elec. Connector Terminal	Cavity A4, A6, A7, C5 - C7, D4, D5, F4, F5
2	57M8585	6	Elec. Connector Terminal	Cavity A5, A9, A10, B4, C9, C10
2	57M7401	44	Elec. Connector Cavity Plug	Cavity A1 - A2, A8, B1 - B3, B5 - B10, C1 - C4, C8, D1 - D3, D6 - D10, E1 - E10, F1 - F3, F6 - F10
2	57M7399	6	Elec. Connector Seal	Cavity A5, A9, A10, B4, C9, C10
2	57M8515	10	Elec. Connector Seal	Cavity A4, A6, A7, C5 - C7, D4, D5, F4, F5
3	57M8322	1	Elec. Connector Terminal	Cavity S
3	57M9223	4	Elec. Connector Seal	Cavity C, L, N, R
3	57M8323	1	Elec. Connector Terminal	Cavity J
3	57M8321	6	Elec. Connector Terminal	Cavity B, E, F, G, K, P
3	57M8324	2	Elec. Connector Terminal	Cavity A, H
3	57M8306	1	Elec. Connector Terminal	Cavity S
3	57M9539	4	Elec. Connector Terminal	Cavity C, L, N, R
3	57M8301	6	Elec. Connector Terminal	Cavity B, E, F, G, K, P
3	57M8309	2	Elec. Connector Terminal	Cavity A, H
3	57M11996	1	Elec. Connector Accessory	-
3	57M8281	1	Elec. Connector Housing	Transmission Harness 1 X004
3	57M8307	1	Elec. Connector Terminal	Cavity J
4	57M8910	1	Clip	-
5	57M8300	2	Elec. Connector Terminal	Cavity N, P
5	57M9223	14	Elec. Connector Seal	Cavity A, B, C, D, E, F, G, H, J, K, L, M, R, S
5	57M8321	2	Elec. Connector Terminal	Cavity N, P
5	57M8299	14	Elec. Connector Terminal	Cavity A, B, C, D, E, F, G, H, J, K, L, M, R, S
5	57M9919	1	Elec. Connector Accessory	-
5	57M8484	1	Elec. Connector Housing	Transmission Harness 2 X003
6	57M9776	1	Elec. Connector Housing	Chassis Can Terminator R1
6	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
7	57M11134	1	Elec. Connector Housing	-
8	57M9183	1	Elec. Connector Housing	Service Advisor X07
8	N282069	2	Elec. Connector Terminal	Cavity A, B
8	57M8164	2	Elec. Connector Terminal	Cavity C, D
8	57M9181	5	Elec. Connector Cable Seal	Cavity E, F, G, H, J
9	57M9182	1	Nut	-
10	RE217864	1	Cap	-
11	57M8875	2	Elec. Connector Terminal	Junction Block Battery Power / Ground
12	57M8871	1	Elec. Connector Terminal	Junction Block Accessory Power
13	57M10963	1	Elec. Connector Terminal	Left Beacon Lamp Ground
14	57M10962	1	Elec. Connector Terminal	Left Beacon Lamp
15	57M7254	1	Elec. Connector Housing	Fender Extension Harness E14, LH
15	R104846	2	Elec. Connector Terminal	Cavity A, B
15	57M9712	2	Elec. Connector Accessory	-
15	57M7259	2	Elec. Connector Seal	-
15	57M7258	2	Elec. Connector Seal	Cavity A, B
16	57M7256	1	Elec. Connector Housing	-
17	57M10963	1	Elec. Connector Terminal	Left Rear Work Lamp Ground E11-B
18	57M10962	1	Elec. Connector Terminal	Left Tail Lamp H13-A
19	57M10963	1	Elec. Connector Terminal	Left Tail / Turn Lamp Ground H13-B
20	57M10962	1	Elec. Connector Terminal	Left Turn Lamp H13-C
21	57M10962	1	Elec. Connector Terminal	Left Hazard Lamp H13-D
22	57M10962	1	Elec. Connector Terminal	Left Rear Work Lamp E11-A
23	RE186986	1	Junction Block	-
24	57M10604	2	Elec. Connector Housing	-
25	57M10613	1	Elec. Connector Housing	-
26	57M10609	1	Elec. Connector Housing	FCC Controller J1 A01-A
26	57M10330	9	Elec. Connector Terminal	Cavity A3, A4, B1, B2, C1 - C4, E1, E2
26	57M10514	1	Elec. Connector Terminal	Cavity C4
26	57M10331	3	Elec. Connector Terminal	Cavity G4, H1, H2
26	57M10333	14	Elec. Connector Cavity Plug	Cavity A1, A2, B3, B4, D1 - D4, E3, E4, F1 - F4. G1 - G3, H3, H4
27	57M10331	7	Elec. Connector Terminal	Cavity L1, L2, L4, M1 - M4
27	57M10334	1	Elec. Connector Cavity Plug	Cavity L3
27	57M10333	17	Elec. Connector Cavity Plug	Cavity A2, A4, B4, C1 - C4, D1, D3, E1, E2, G2, G3, H1, H3, J1, J3
27	57M10514	2	Elec. Connector Terminal	Cavity B3, K3
27	57M10330	21	Elec. Connector Terminal	Cavity A1, A3, B1, B2, D2, D4, E3, E4, F1 - F4, G1, G4, H2, H4, J2, J4, K1, K2, K4
27	57M10615	1	Elec. Connector Housing	FCC Controller J2 A01-B
28	57M10606	1	Elec. Connector Housing	FCC Controller J3 A01-C
28	57M10330	7	Elec. Connector Terminal	Cavity A4, B3, C1, C2, D4, E1, E4
28	57M10333	17	Elec. Connector Cavity Plug	Cavity A1 - A3, B1, B2, B4, C3, C4, D1 - D3, E2, E3, F1 - F4
28	57M10334	8	Elec. Connector Cavity Plug	Cavity G1 - G4, H1 - H4
29	57M8900	1	Elec. Connector Terminal	Fused Power X005
30	SJ40738	1	Wiring Harness	-

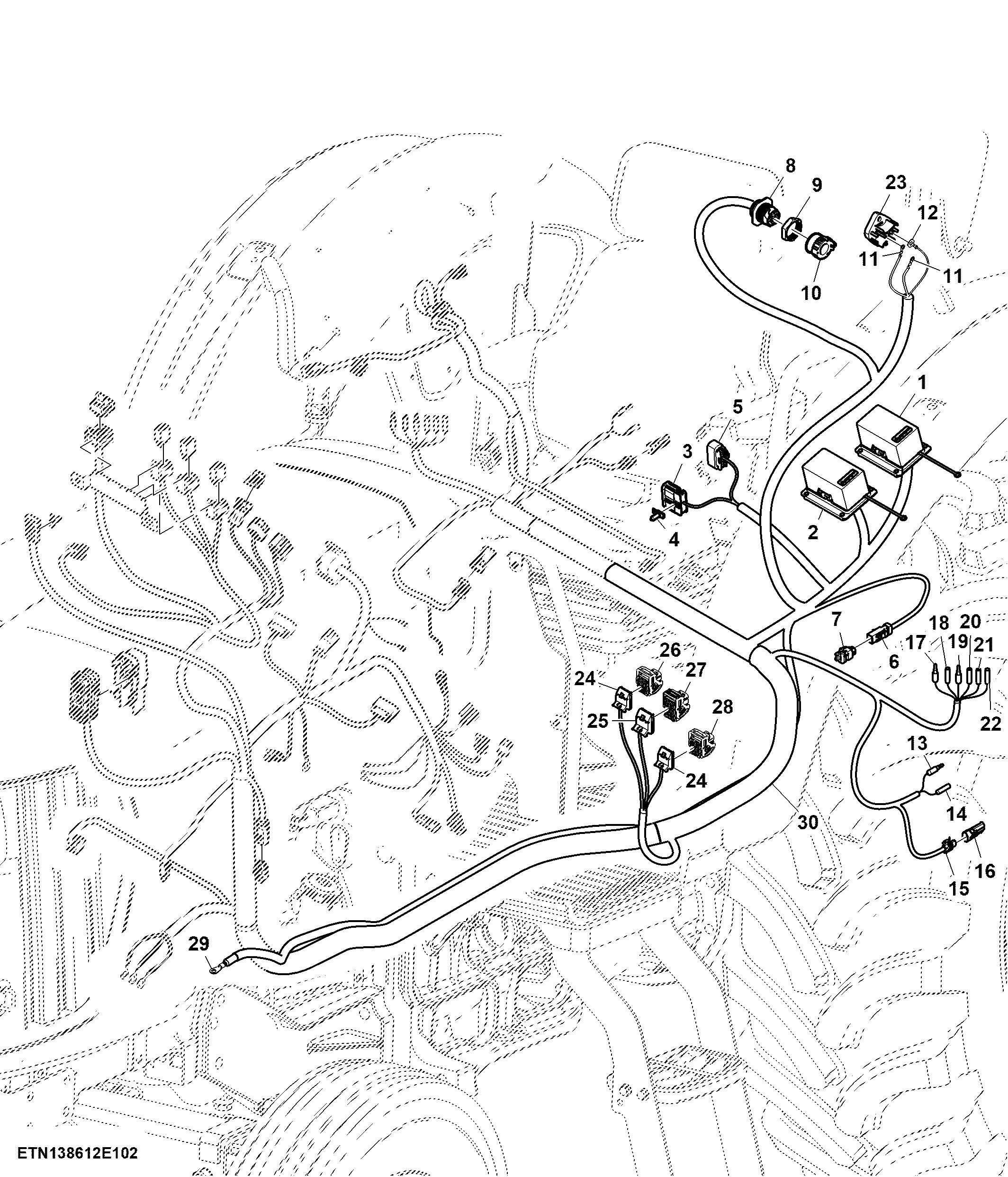

Rear Wiring Harness, OOS, PowrReverser™ Plus (2/5)
