Load Center, Cab Wiring Harness, PowrReverser™ Plus(6/6)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ42760	1	Cab Wiring Harness	-
2	SU66374	1	Label	-
3	SJ15809	7	Relay	-
4	RE68327	4	Relay	-
5	57M9152	1	Elec. Connector Housing	Load Center Block 4 BLK4
5	57M9153	1	Elec.Connect Locking Device	-
5	R573259	1	Relay	-
5	Z70804	8	Elec. Connector Terminal	Cavity R1-30, R1-87,R2-30, R2-87, R3-30, R3-87, R4-30, R4-87
5	57M7429	5	Elec. Connector Terminal	Cavity R1-85, R1-86, R2-85, R3-85, R4-86
5	57M7512	1	Elec. Connector Terminal	Cavity R2-86
5	57M7511	1	Elec. Connector Terminal	Cavity R3-86
6	57M9138	1	Elec.Connect Locking Device	-
6	57M8297	1	Elec. Connector Terminal	Cavity H1
6	57M8295	1	Elec. Connector Terminal	Cavity G4
6	57M8296	9	Elec. Connector Terminal	Cavity B4, D2-D4, F1, F2, F4, H2, H3
6	57M8298	5	Elec. Connector Terminal	Cavity B1, B2, B3, D1, F3
6	57M8163	1	Fuse	-
6	57M7691	1	Fuse	-
6	57M7690	1	Fuse	-
6	57M7689	1	Fuse	-
6	57M8756	1	Elec. Connector Accessory	Load Center Block 1 BLK1
7	19M8649	4	Screw	M6 X 20
8	57M8749	2	Elec. Connector Accessory	-
9	R256598	1	Bracket	-
10	R256599	1	Bracket	-
11	RE194287	1	Fuse Holder	-
12	R224342	4	Screw	-
13	24M7251	4	Washer	6.400 X 18 X 1.600 mm
14	R78053	1	Electrical Connector Assy	-
15	57M9218	2	Elec. Connector Seal	Cavity A, B
15	R78060	2	Elec. Connector Terminal	Cavity A, B
15	RE12363	1	Electrical Connector Assy	A05
15	R78064	1	Elec. Connector Cavity Plug	-
16	57M7328	1	Elec. Connector Housing	Seat Switch S04
16	57M7494	2	Elec. Connector Terminal	Cavity A, B
16	57M9215	2	Elec. Connector Seal	Cavity A, B
17	57M8298	2	Elec. Connector Terminal	Cavity A4, B4
17	57M8296	1	Elec. Connector Terminal	Cavity D4
17	57M8297	4	Elec. Connector Terminal	Cavity B3, C4, D3, F3,
17	57M8295	13	Elec. Connector Terminal	Cavity A2, B1, D1, D2, E4, F1, F4, G1, G3, G4, H3, H4, J2
17	57M8886	5	Elec. Connector Terminal	Cavity A1, C2, F2, G2, J1
17	57M11521	1	Elec. Connector Accessory	-
17	57M9138	1	Elec.Connect Locking Device	-
17	57M8760	1	Elec. Connector Accessory	-
17	57M8163	1	Fuse	-
17	57M7691	1	Fuse	-
17	57M7689	1	Fuse	-
17	57M8756	1	Elec. Connector Accessory	Load Center Block 2 BLK2
17	57M9142	1	Elec. Connector Accessory	-
18	57M8297	2	Elec. Connector Terminal	Cavity E1, F1
18	57M8296	14	Elec. Connector Terminal	Cavity A4, B3, C1, C3, D1, D2, D4, E3, F2, F3, G1, G4, J1, J3
18	57M8295	4	Elec. Connector Terminal	Cavity A3, B1, D3, F4,
18	57M8886	7	Elec. Connector Terminal	Cavity A1, A2, B2, C4, G3, J2, J4
18	AN205067	1	Diode	-
18	57M12208	1	Elec. Connector Accessory	-
18	57M9142	1	Elec. Connector Accessory	-
18	57M9138	1	Elec.Connect Locking Device	-
18	57M8760	1	Elec. Connector Accessory	-
18	57M8163	1	Fuse	-
18	57M7690	1	Fuse	-
18	57M7689	1	Fuse	-
18	57M7688	1	Fuse	-
18	57M8756	1	Elec. Connector Accessory	Load Center Block 3 BLK3

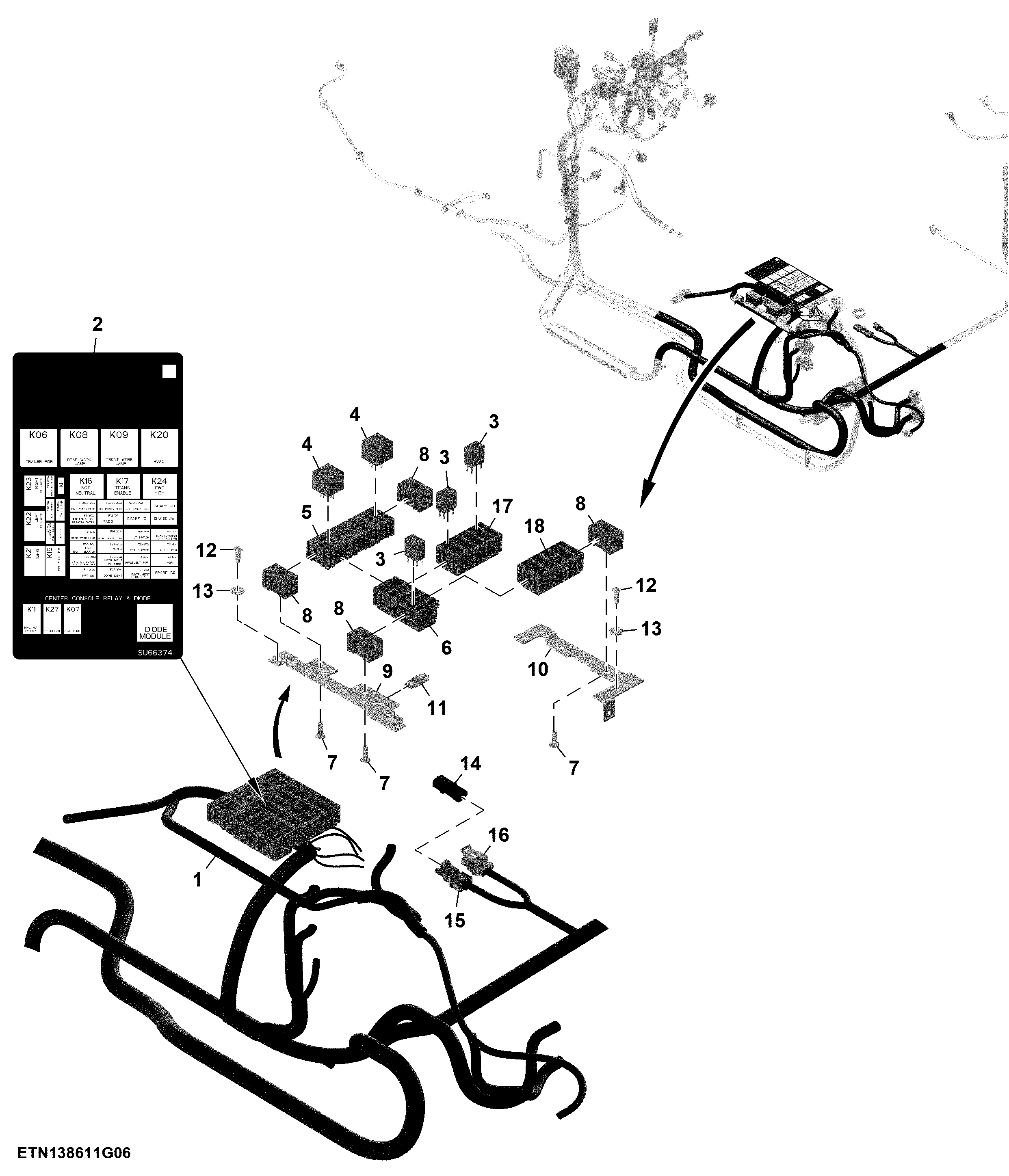

Load Center, Cab Wiring Harness, PowrReverser™ Plus(6/6)
