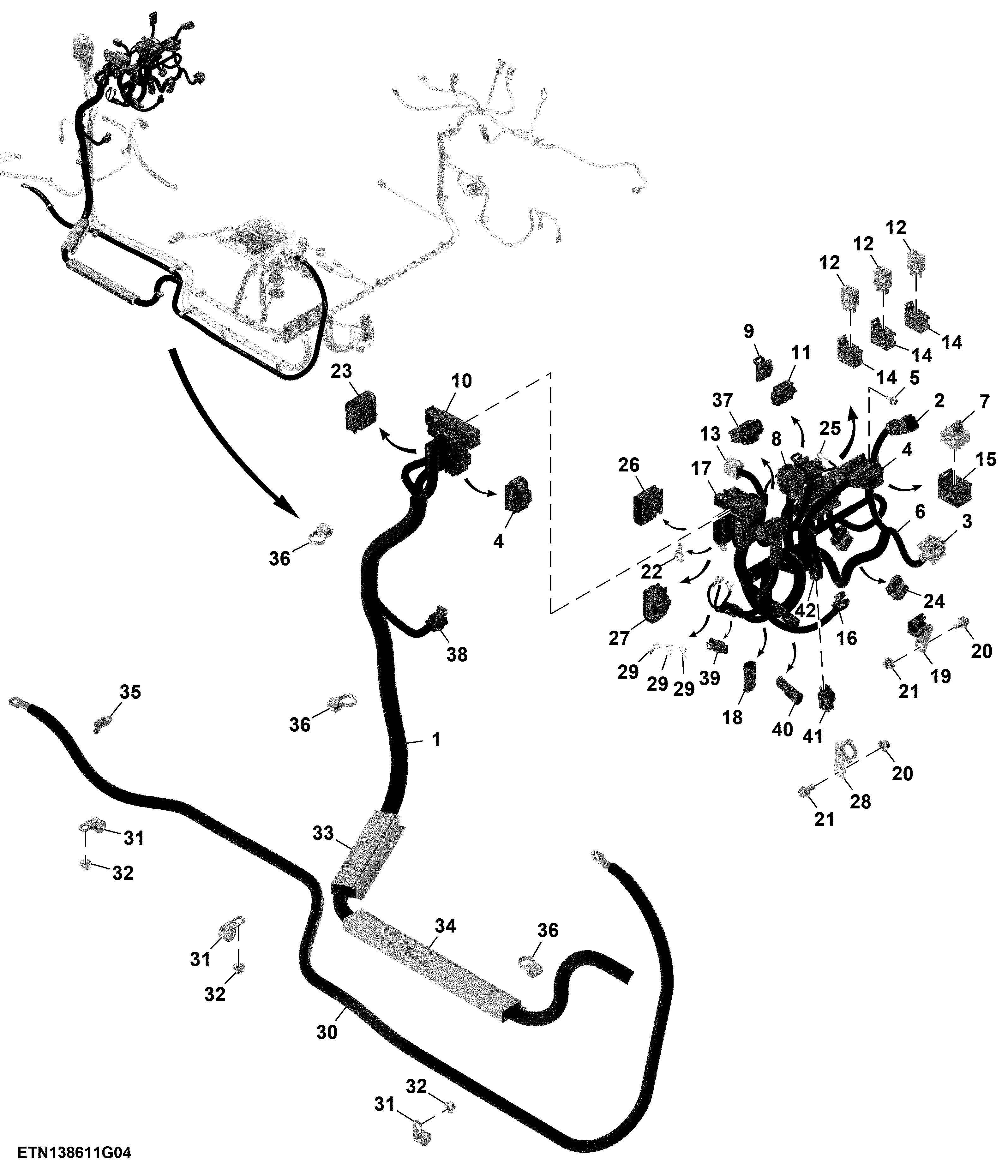

Front Console Wiring Harness, PowrReverser™ Plus, Cab(4/6)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ42760	1	Cab Wiring Harness	-
2	57M8014	1	Elec. Connector Housing	-
3	RE46735	1	Electrical Connector Assy	-
4	57M8484	2	Elec. Connector Housing	Transmisssion Harness X003A
4	57M9919	1	Elec. Connector Accessory	-
4	57M8299	16	Elec. Connector Terminal	Cavity A-S
4	57M9223	14	Elec. Connector Seal	Cavity A-M, R, S
4	57M8321	2	Elec. Connector Terminal	Cavity N, P
5	37M7447	2	Screw	M6 X 12
6	SJ42761	1	Wiring Harness	-
7	RE262484	1	Diode	-
8	57M10299	1	Elec. Connector Housing	-
9	57M7840	1	Elec. Connector Housing	-
10	57M8621	9	Elec. Connector Terminal	Cavity 3, 8, 9, 13, 14, 17, 18, 21, 22
10	57M8515	9	Elec. Connector Seal	Cavity 3, 8, 9, 13, 14, 17, 18, 21, 22
10	57M7399	5	Elec. Connector Seal	Cavity 1, 5, 6, 7, 10,
10	57M8942	5	Elec. Connector Terminal	Cavity 1, 5, 6, 7, 10,
10	57M8084	1	Elec. Connector Accessory	-
10	57M7259	1	Elec. Connector Seal	-
10	57M8944	1	Elec. Connector Housing	Front Console Connector 1 X033A
11	57M7262	1	Elec. Connector Housing	-
12	AL76702	3	Relay	-
13	57M8761	1	Elec. Connector Housing	-
14	Z61311	3	Elec. Connector Housing	-
15	57M10426	1	Elec. Connector Accessory	-
16	57M7255	1	Elec. Connector Housing	-
17	57M8070	1	Elec. Connector Housing	X033B
18	57M7985	1	Electrical Connector Assy	-
19	57M10105	2	Elec. Connector Accessory	-
20	57M12138	2	Clamp	-
21	14M7298	2	Flange Nut	M8
22	57M8866	1	Elec. Connector Terminal	-
23	57M11996	1	Elec. Connector Accessory	-
23	57M8308	1	Elec. Connector Terminal	Cavity A
23	57M8301	11	Elec. Connector Terminal	Cavity B - G, H, J
23	57M8309	3	Elec. Connector Terminal	Cavity H, J, S
23	57M8324	4	Elec. Connector Terminal	Cavity A, H, J
23	57M8321	11	Elec. Connector Terminal	Cavity B - G, H, J
23	57M9446	1	Elec. Connector Seal	Cavity M
23	57M8281	1	Elec. Connector Housing	Front Console Connector 3 X031A
24	57M7261	1	Elec. Connector Housing	-
25	57M8872	1	Elec. Connector Terminal	-
26	57M10717	1	Elec. Connector Housing	-
27	57M8156	1	Elec. Connector Housing	-
28	57M11014	1	Elec. Connector Accessory	-
29	57M7560	3	Elec. Connector Terminal	-
30	SJ21035	1	Battery Cable	-
31	57M9855	5	Clamp	-
32	14M7298	5	Flange Nut	M8
33	R267934	1	Channel	-
34	R267935	1	Channel	-
35	57M8902	1	Clip	-
36	CB01483609	3	Tie Band	-
37	57M9835	1	Elec. Connector Housing	-
38	57M7260	1	Elec. Connector Housing	S15, Clutch Assembly
38	57M7291	1	Electrical Connector Assy	-
38	57M7494	6	Elec. Connector Terminal	Cavity A - F
38	57M9215	6	Elec. Connector Seal	Cavity A - F
39	57M10497	1	Elec. Connector Housing	-
40	57M7256	1	Elec. Connector Housing	-
41	57M11134	1	Elec. Connector Housing	-
42	57M9776	1	Elec. Connector Housing	R1, Can Terminator

Front Console Wiring Harness, PowrReverser™ Plus, Cab(4/6)
